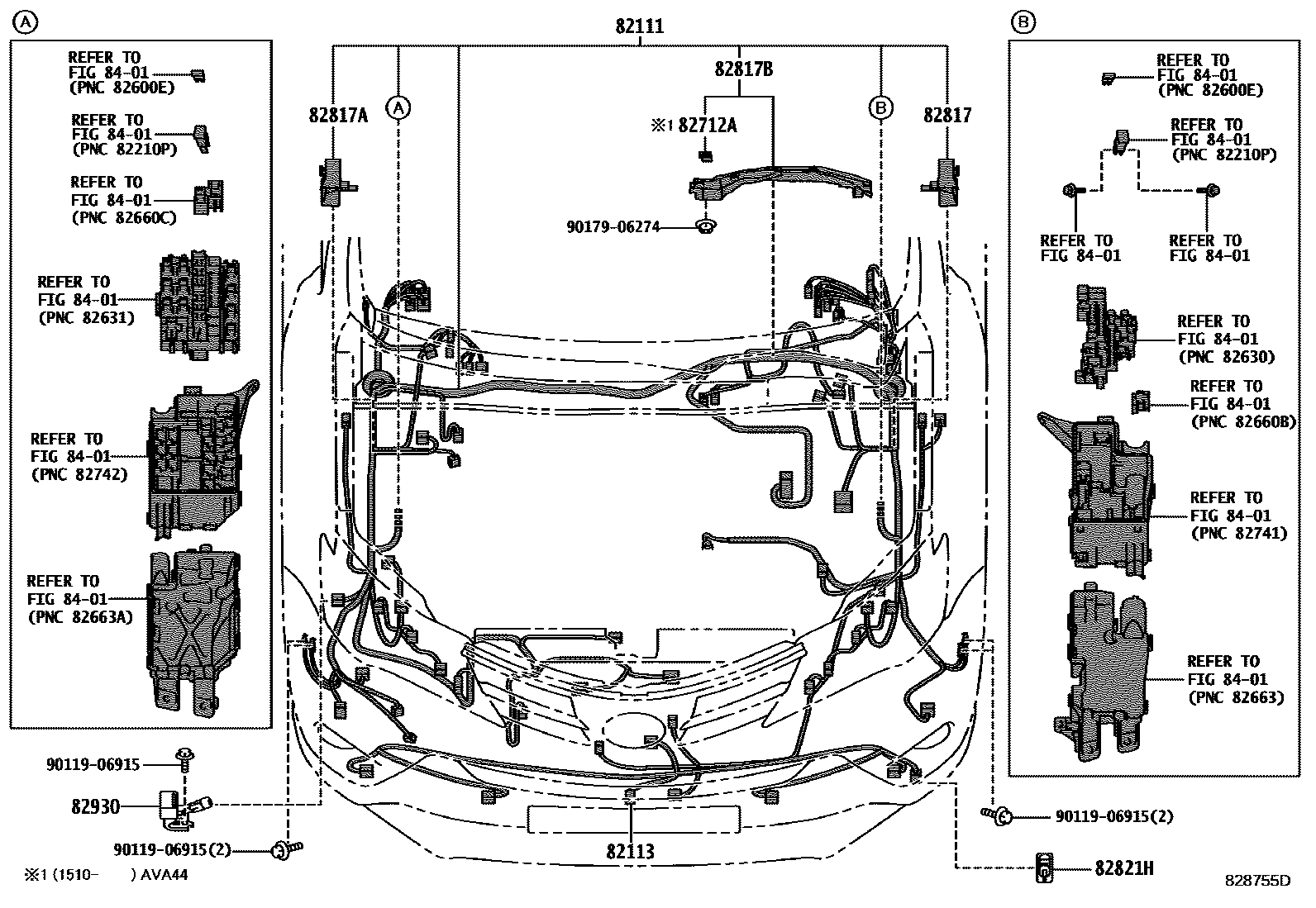

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
CLEARANCE & BACK SONAR-WITH(REAR)
HEAD LAMP-LED
HEAD LAMP-LED, W(*AHB)
HEAD LAMP-LED, W(*AHB)
HEAD LAMP-LED
HEAD LAMP-LED, W(*AHB)
HEAD LAMP-LED
HEAD LAMP-LED
HEAD LAMP-LED, W(*AHB)
HEAD LAMP-LED, W(*AHB)
HEAD LAMP-LED
82113WIRE, ENGINE ROOM, NO.3
PRE-COLLISION SYSTEM-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*BGM)
PRE-COLLISION SYSTEM-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITHOUT
PRE-COLLISION SYSTEM-WITHOUT
82712ASUPPORT, WIRING HARNESS
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82821HCOVER, CONNECTOR
PRE-COLLISION SYSTEM-WITHOUT
82930CONDENSER ASSY, WIRING HARNESS, NO.1
8401
9011906915
main90119-06915
9017906274
main90179-06274
11 parts on this diagram · 15 diagrams in section
