BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY(S46B24R) 0003 112V BATTERY(S55D23R) 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-21171i2ARFXE..AVA44201510-201810

S46B24R

sub28800-21172

main28800-36070i2ARFE..ASA4#201212-201507

80D23L

sub28800-36071

main28800-36071i2ARFE..ASA4#201508-201810

80D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFE..ASA4#201510-201810

AUDIO-6SPEAKER 7INCH AVN NA

main90982-05061i2ARFE..ASA4#201510-201810

AUDIO-JBL 7INCH AVN NA

main90982-05061i2ARFXE..AVA44201510-201810

AUDIO-6SPEAKER 7INCH AVN XM NA

main90982-05061i2ARFXE..AVA44201510-201810

AUDIO-JBL 7INCH AVN XM NA

main90982-05061i2ARFE..ASA4#201212-201510

main90982-05063i2ARFXE..AVA44201510-201810

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2ARFE..ASA4#201609-201810

main82821-48020i2ARFE..ASA4#201212-201608

main82821-53090i2ARFXE..AVA44201510-201810

28800JTERMINAL, BATTERY NEGATIVE

main82675-42120i2ARFE..ASA42201212-201810

28899INSULATOR, BATTERY

main28899-36020i2ARFE..ASA4#201212-201810

main28899-36090i2ARFXE..AVA44201510-201810

8202

8401

9415180801

main94151-80801

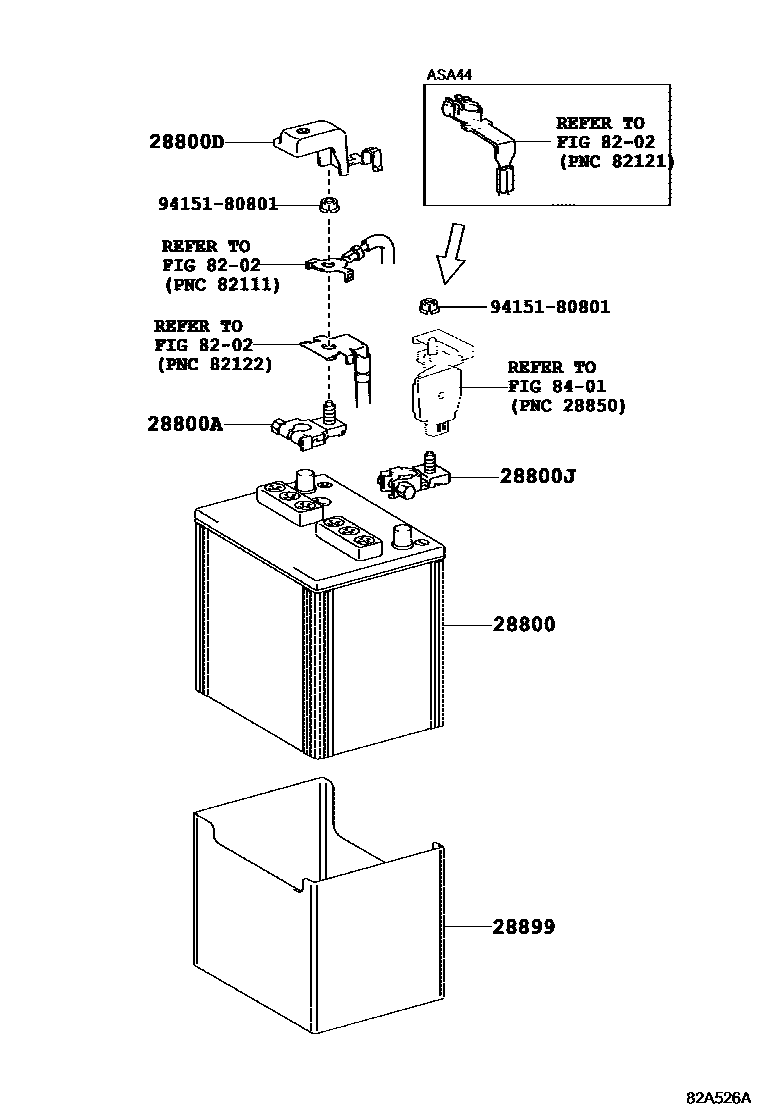

8 parts on this diagram · 6 diagrams in section
