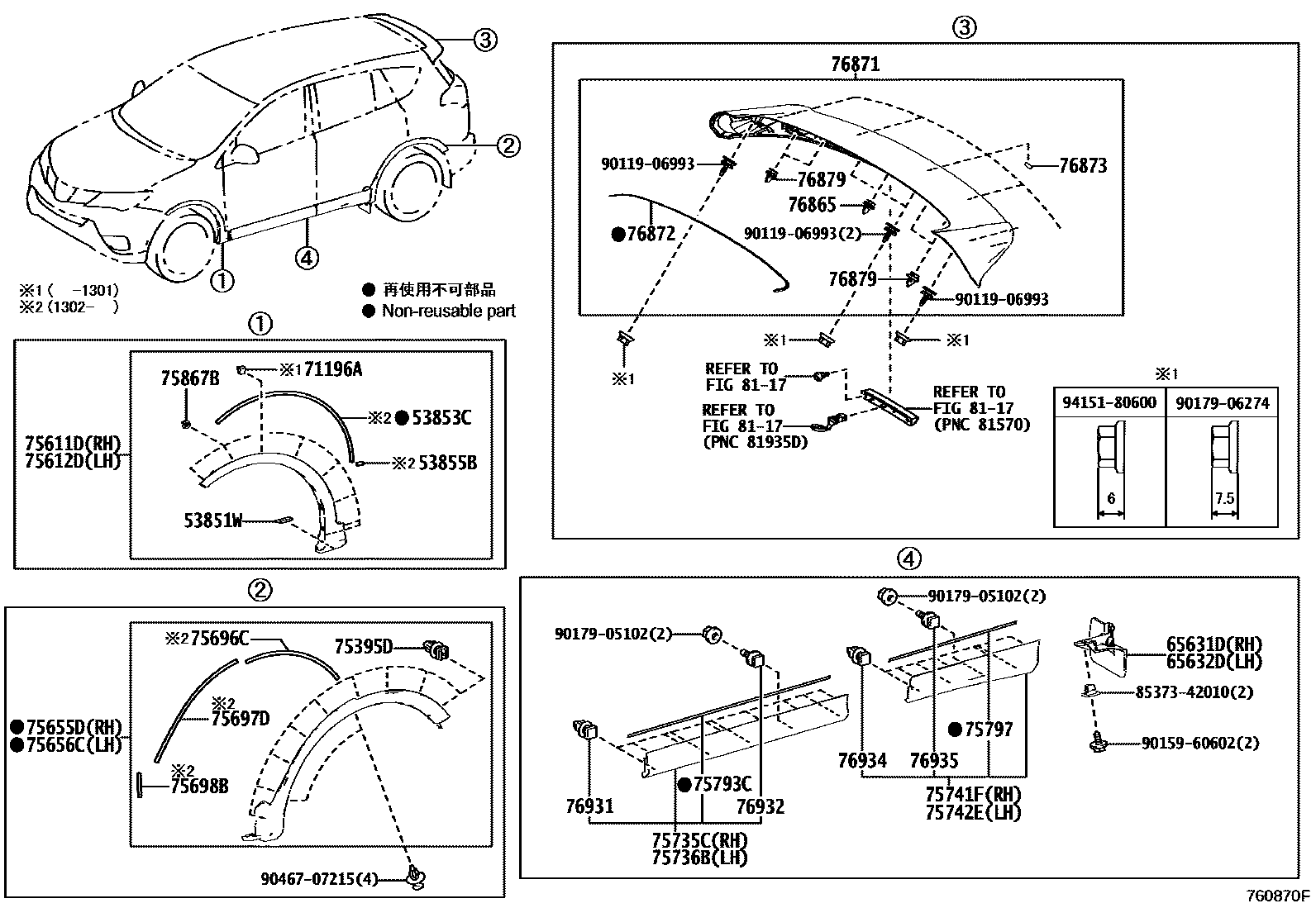

SPOILER & SIDE MUDGUARD
53851WPAD, FRONT WHEEL OPENING EXTENSION, NO.1
53853CPAD, FRONT WHEEL OPENING EXTENSION, NO.3
53855BPAD, FRONT WHEEL OPENING EXTENSION, NO.5
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
71196ACLIP
75395DCLIP, OUTSIDE MOULDING, NO.1
75655DMOULDING, QUARTER, OUTSIDE CENTER RH
75656CMOULDING, QUARTER, OUTSIDE CENTER LH
75696CPAD, BODY OUTSIDE MOULDING, NO.1
75697DPAD, BODY OUTSIDE MOULDING, NO.2
75698BPAD, BODY OUTSIDE MOULDING, NO.3
75793CPAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75797PAD, REAR DOOR OUTSIDE MOULDING, UPPER
75867BCLIP, ROCKER PANEL MOULDING
76865RETAINER, REAR SPOILER, NO.1
76871SPOILER, REAR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76879CLIP, REAR SPOILER, NO.1
76931RETAINER, SIDE MUDGUARD, NO.3
76932RETAINER, SIDE MUDGUARD, NO.4
76934RETAINER, SIDE MUDGUARD, NO.6
76935RETAINER, SIDE MUDGUARD, NO.7
8117
8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-42010
9011906993
main90119-06993
9015960602
main90159-60602
9017905102
main90179-05102
9017906274
main90179-06274
9046707215
main90467-07215
9415180600
main94151-80600
38 parts on this diagram · 2 diagrams in section
