SEAT BELT

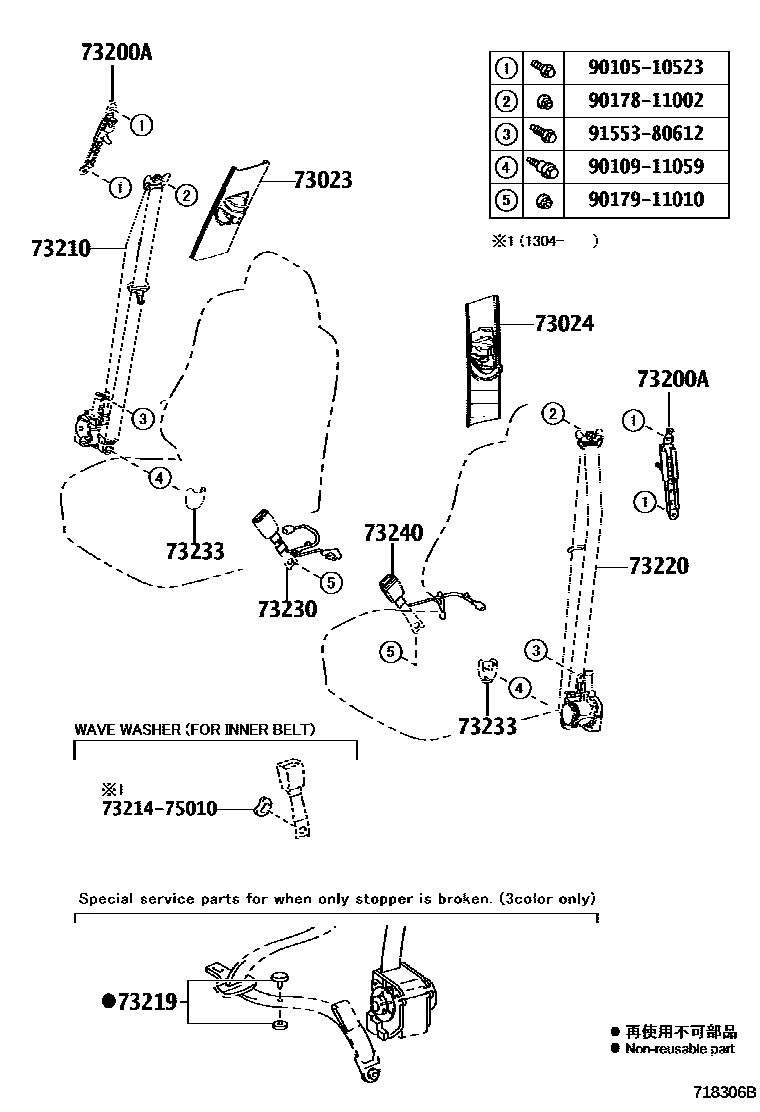

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-33030-B1i201212-201810
LT.GRAY,TRIM1#,2#,4#
sub73023-58010
sub73023-33030
main73023-33030-B1i201212-201810
LT.GRAY,TRIM1#,2#,3#,4#
sub73023-58010
sub73023-33030
main73023-33030-B1i201510-201810
LT.GRAY,TRIM2#
sub73023-58010
sub73023-33030
main73023-33030-B1i201510-201810
LT.GRAY,TRIM1#,20,30,4#
sub73023-58010
sub73023-33030
main73023-33030-C0i201510-201810
BLACK,TRIM20,30
sub73023-58010
sub73023-33030
main73023-33030-C0i201608-201810
BLACK,TRIM2#,3#
sub73023-58010
sub73023-33030
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-33030-B1i201212-201810
LT.GRAY,TRIM1#,2#,3#,4#
sub73024-58010
sub73024-33030
main73024-33030-B1i201212-201810
LT.GRAY,TRIM1#,2#,4#
sub73024-58010
sub73024-33030
main73024-33030-B1i201510-201810
LT.GRAY,TRIM2#
sub73024-58010
sub73024-33030
main73024-33030-B1i201510-201810
LT.GRAY,TRIM1#,20,30,4#
sub73024-58010
sub73024-33030
main73024-33030-C0i201510-201810
BLACK,TRIM20,30
sub73024-58010
sub73024-33030
main73024-33030-C0i201608-201810
BLACK,TRIM2#,3#
sub73024-58010
sub73024-33030
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12070i201508-201810
main73200-53010i201212-201508
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-42400-C0i201212-201510
BLACK,TRIM1#,2#,3#,4#
sub73210-42401
main73210-42400-C0i201212-201510
BLACK,TRIM1#,2#,4#
sub73210-42401
main73210-42401-C0i201510-201608
BLACK/LT.GRAY,TRIM2#
sub73210-42420
main73210-42401-C0i201510-201608
BLACK/LT.GRAY,TRIM1#,2#,3#,4#
sub73210-42420
main73210-42401-C0i201510-201608
BLACK/LT.GRAY,TRIM1#,2#,4#
sub73210-42420
main73210-42401-C1i201510-201608
BLACK/BLACK,TRIM2#,3#
sub73210-42420
main73210-42420-C0i201608-201801
BLACK/LT.GRAY,TRIM2#
main73210-42420-C0i201608-201801
BLACK/LT.GRAY,TRIM1#,2#,4#
main73210-42420-C0i201608-201801
BLACK/LT.GRAY,TRIM1#,2#,3#,4#
main73210-42420-C1i201608-201801
BLACK/BLACK,TRIM2#,3#
main73210-42420-C2i201801-201802
BLACK,TRIM2#,3#
main73210-42420-C2i201801-201802
BLACK,TRIM2#
main73210-42420-C2i201801-201802
BLACK,TRIM1#,2#,4#
main73210-42420-C2i201801-201802
BLACK,TRIM1#,2#,3#,4#
main73210-42450-C0i201802-201810
BLACK,TRIM1#,2#,4#
main73210-42450-C0i201802-201810
BLACK,TRIM2#,3#
main73210-42450-C0i201802-201810
BLACK,TRIM2#
main73210-42450-C0i201802-201810
BLACK,TRIM1#,2#,3#,4#
73219STOPPER, TONGUE PLATE
main73219-02010i201212-201810
BLACK
main73219-02020i201212-201810
GRAY
main73219-02030i201212-201810
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-42310-C0i201212-201304
BLACK,TRIM1#,2#,4#
sub73220-42311
main73220-42310-C0i201212-201304
BLACK,TRIM1#,2#,3#,4#
sub73220-42311
main73220-42311-C0i201305-201510
BLACK,TRIM1#,2#,3#,4#
sub73220-42312
main73220-42311-C0i201305-201510
BLACK,TRIM1#,2#,4#
sub73220-42312
main73220-42312-C0i201510-201608
BLACK/LT.GRAY,TRIM2#
main73220-42312-C0i201510-201608
BLACK/LT.GRAY,TRIM1#,2#,4#
main73220-42312-C0i201510-201608
BLACK/LT.GRAY,TRIM1#,2#,3#,4#
main73220-42312-C1i201510-201608
BLACK/BLACK,TRIM2#,3#
main73220-42320-C0i201608-201801
BLACK/LT.GRAY,TRIM2#
main73220-42320-C0i201608-201801
BLACK/LT.GRAY,TRIM1#,2#,4#
main73220-42320-C0i201608-201801
BLACK/LT.GRAY,TRIM1#,2#,3#,4#
main73220-42320-C1i201608-201801
BLACK/BLACK,TRIM2#,3#
main73220-42320-C2i201801-201803
BLACK,TRIM1#,2#,3#,4#
main73220-42320-C2i201801-201803
BLACK,TRIM2#
main73220-42320-C2i201801-201803
BLACK,TRIM1#,2#,4#
main73220-42320-C2i201801-201803
BLACK,TRIM2#,3#
main73220-47221-C7i201803-201810
BLACK,TRIM2#
sub73220-47221
sub73220-47222
main73220-47221-C7i201803-201810
BLACK,TRIM1#,2#,4#
sub73220-47221
sub73220-47222
main73220-47221-C7i201803-201810
BLACK,TRIM1#,2#,3#,4#
sub73220-47221
sub73220-47222
main73220-47221-C7i201803-201810
BLACK,TRIM2#,3#
sub73220-47221
sub73220-47222
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-42190-C0i201212-201410
BLACK,TRIM1#,2#,3#,4#
main73230-42190-C0i201212-201410
BLACK,TRIM1#,2#,4#
main73230-42191-C0i201410-201810
BLACK,TRIM1#,2#,3#,4#
main73230-42191-C0i201410-201510
BLACK,TRIM1#,2#
main73230-42191-C0i201410-201810
BLACK,TRIM1#,2#,4#
main73230-42191-C0i201510-201810
BLACK,TRIM2#
main73230-42191-C0i201510-201810
BLACK,TRIM2#,3#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C0i201212-201610
BLACK,TRIM1#,2#,4#
sub73233-60020
sub73233-35010
main73233-60020-C0i201212-201610
BLACK,TRIM1#,2#,3#,4#
sub73233-60020
sub73233-35010
main73233-60020-C0i201510-201610
BLACK,TRIM2#
sub73233-60020
sub73233-35010
main73233-60020-C0i201608-201610
BLACK,TRIM2#,3#
sub73233-60020
sub73233-35010
main73233-60020-C1i201610-201810
BLACK,TRIM1#,2#,3#,4#
sub73233-60020
sub73233-35010
main73233-60020-C1i201610-201810
BLACK,TRIM2#,3#
sub73233-60020
sub73233-35010
main73233-60020-C1i201610-201810
BLACK,TRIM1#,2#,4#
sub73233-60020
sub73233-35010
main73233-60020-C1i201610-201810
BLACK,TRIM2#
sub73233-60020
sub73233-35010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-42090-C0i201212-201810
BLACK,TRIM1#,2#,4#
main73230-42090-C0i201510-201810
BLACK,TRIM2#
main73230-42200-C0i201510-201810
SEAT HEATER-WITH(FRONT),BLACK,TRIM1#,2#,4#
main73230-42200-C0i201212-201810
BLACK,TRIM1#,2#,3#,4#
main73230-42200-C0i201608-201810
BLACK,TRIM2#,3#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

15 parts on this diagram · 3 diagrams in section
