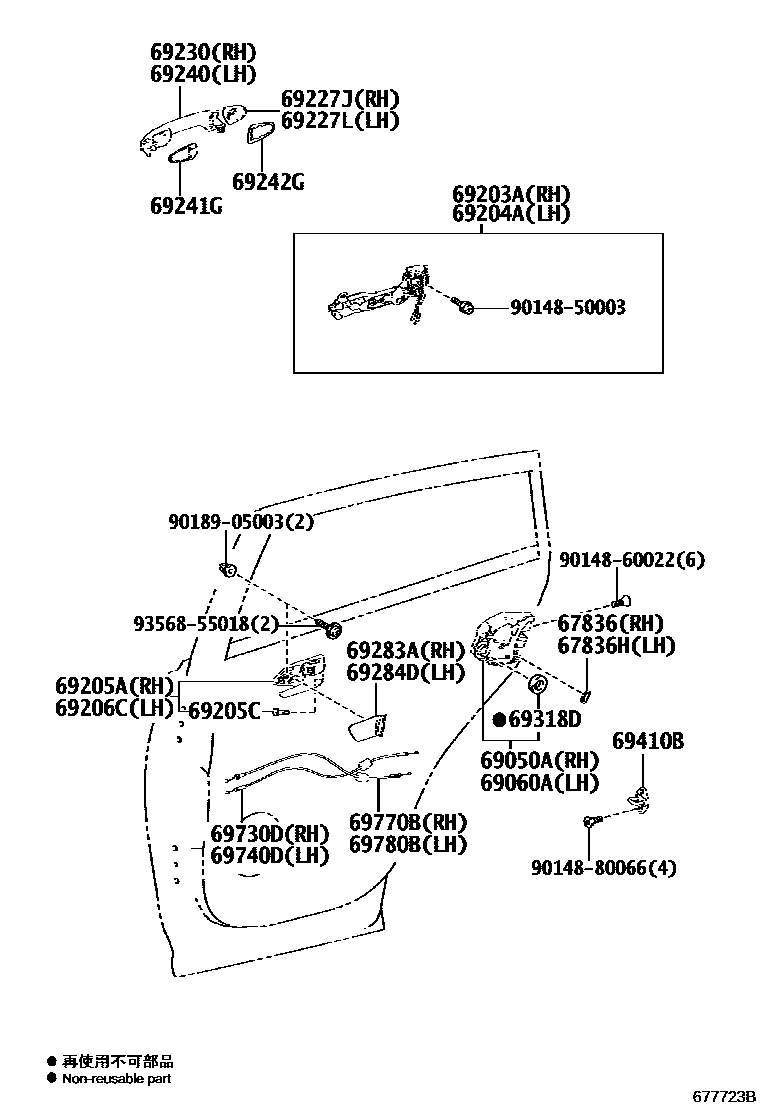

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART
KEY PLATE-MASTER 2 FOR SMART
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
KEY PLATE-MASTER 2 FOR SMART
POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
*CR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
*CR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
PLATED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
PLATED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356855018
main93568-55018
28 parts on this diagram · 1 diagram in section
