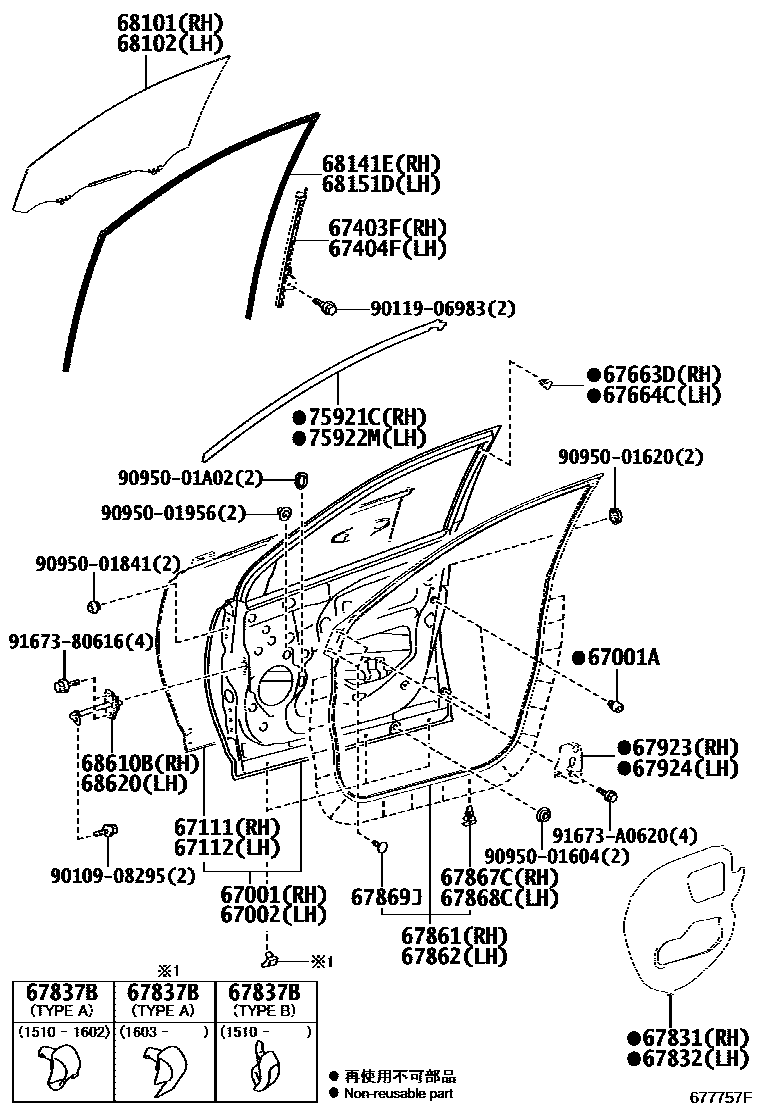

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
KOREA SPEC
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=4.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=4.0,GREEN
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
9010908295
main90109-08295
9011906983
main90119-06983
9095001604
main90950-01604
9095001620
main90950-01620
9095001841
main90950-01841
9095001956
main90950-01956
9095001A02
main90950-01A02
9167380616
main91673-80616
91673A0620
main91673-A0620
36 parts on this diagram · 2 diagrams in section
