DECK BOARD & DECK TRIM COVER

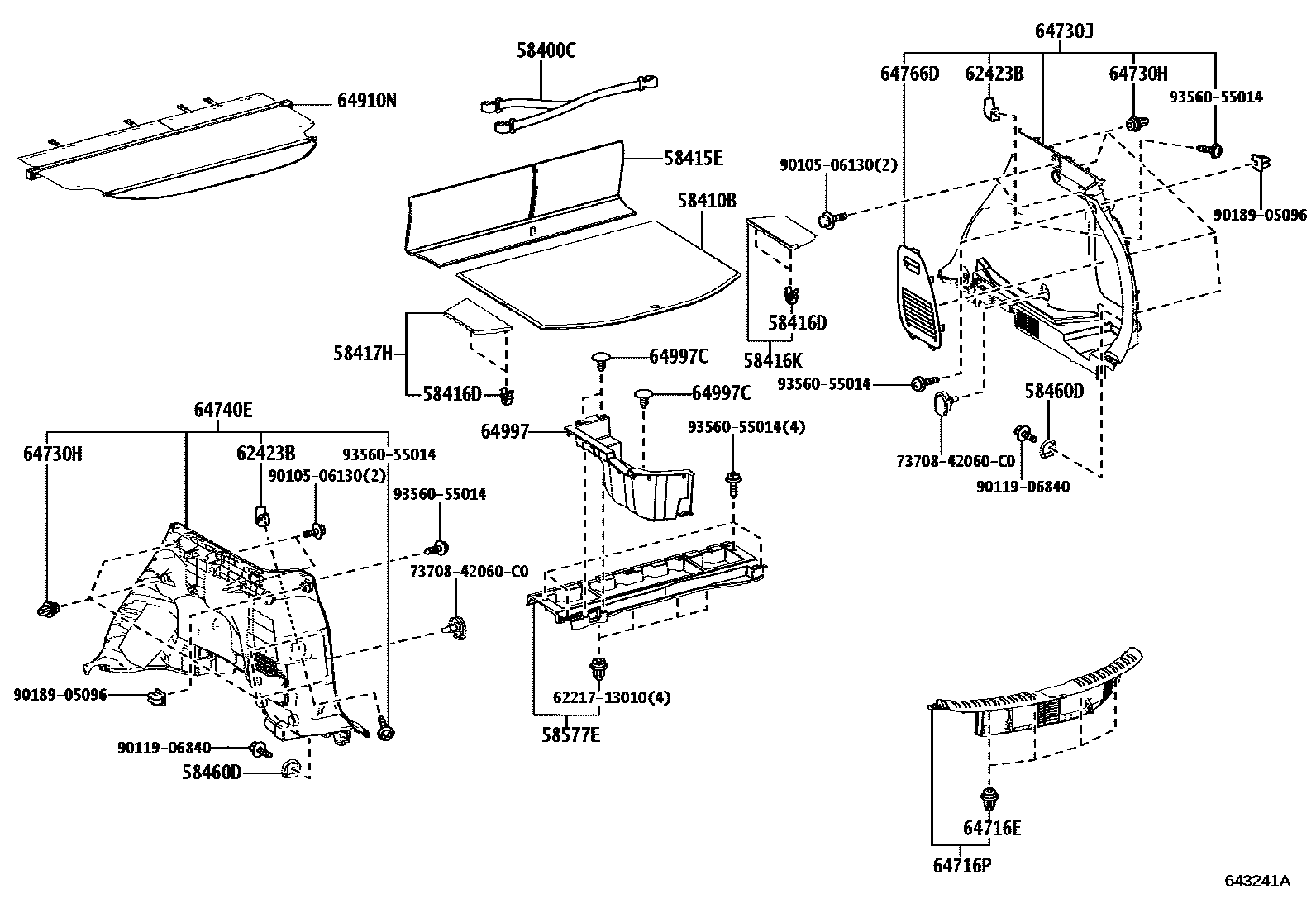

Parts diagram
58400CBELT ASSY, LUGGAGE HOLD
main58400-42010i201212-201510
58410BBOARD ASSY, DECK
main58410-42050-C2i201212-201810
BLACK,TRIM1#,2#,4#
main58410-42050-C2i201608-201810
BLACK,TRIM2#,3#
main58410-42050-C2i201212-201810
BLACK,TRIM1#,2#,3#,4#
main58410-42050-C2i201510-201810
BLACK,TRIM2#
main58410-42060-C2i201212-201303
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
main58410-42060-C2i201212-201303
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main58410-42070-C0i201304-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#
main58410-42070-C0i201304-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
main58410-42070-C0i201304-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main58410-42100-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
main58410-42100-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main58410-42100-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#
main58410-42100-C0i201608-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,3#
58415EBOARD, REAR FLOOR, NO.1
main58415-42040-C2i201212-201810
BLACK,TRIM1#,2#,3#,4#
main58415-42040-C2i201212-201810
BLACK,TRIM1#,2#,4#
main58415-42040-C2i201510-201810
BLACK,TRIM2#
main58415-42050-C0i201510-201810
BLACK,TRIM1#,2#,3#,4#
main58415-42050-C0i201510-201810
BLACK,TRIM1#,2#,4#
main58415-42050-C0i201608-201810
BLACK,TRIM2#,3#
58416DCLIP, REAR FLOOR BOARD
main90467-10201i201212-201510
main90467-10201i201510-201810
SPARE TIRE-GROUND TIRE
58416KBOARD, REAR FLOOR, NO.2
main58416-42050-C0i201212-201810
BLACK,TRIM1#,2#,3#,4#
main58416-42050-C0i201212-201810
BLACK,TRIM1#,2#,4#
main58416-42050-C0i201608-201810
BLACK,TRIM2#,3#
main58416-42050-C0i201510-201810
BLACK,TRIM2#
main58416-42060-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
main58416-42060-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main58416-42060-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#
main58416-42060-C0i201608-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,3#
58417HBOARD, REAR FLOOR, NO.3
main58417-42050-C0i201212-201810
BLACK,TRIM1#,2#,4#
main58417-42050-C0i201510-201810
BLACK,TRIM2#
main58417-42050-C0i201212-201810
BLACK,TRIM1#,2#,3#,4#
main58417-42050-C0i201608-201810
BLACK,TRIM2#,3#
main58417-42060-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main58417-42060-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#
main58417-42060-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
main58417-42060-C0i201608-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,3#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020i201212-201810
58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
main58577-42040-C0i201212-201410
BLACK,TRIM1#,2#,3#,4#
sub58577-42041
main58577-42040-C0i201212-201410
BLACK,TRIM1#,2#,4#
sub58577-42041
main58577-42041-C0i201411-201810
BLACK,TRIM1#,2#,4#
main58577-42041-C0i201510-201810
BLACK,TRIM2#
main58577-42041-C0i201411-201810
BLACK,TRIM1#,2#,3#,4#
main58577-42041-C0i201411-201510
BLACK,TRIM1#,2#
main58577-42050-C0i201212-201303
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
sub58577-42051
main58577-42050-C0i201212-201303
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
sub58577-42051
main58577-42060-C0i201304-201410
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#
sub58577-42061
main58577-42060-C0i201304-201410
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
sub58577-42061
main58577-42060-C0i201304-201410
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
sub58577-42061
main58577-42061-C0i201411-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
main58577-42061-C0i201411-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#
main58577-42061-C0i201411-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main58577-42120-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main58577-42120-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#
main58577-42120-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
main58577-42130-C0i201510-201810
BLACK,TRIM1#,2#,3#,4#
main58577-42130-C0i201510-201810
BLACK,TRIM1#,2#,4#
main58577-42130-C0i201608-201810
BLACK,TRIM2#,3#
62423BHOOK, SIDE WINDOW GARNISH
main62423-42010-C0i201212-201810
BLACK,TRIM1#,2#,3#,4#
sub62423-42010
main62423-42010-C0i201212-201810
BLACK,TRIM1#,2#,4#
sub62423-42010
main62423-42010-C0i201411-201510
BLACK,TRIM1#,2#
sub62423-42010
main62423-42010-C0i201510-201810
BLACK,TRIM2#
sub62423-42010
main62423-42010-C0i201608-201810
BLACK,TRIM2#,3#
sub62423-42010
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-10161i201212-201810
64716PCOVER, DECK TRIM, REAR
main58387-42060-C0i201212-201504
BLACK,TRIM1#,2#,3#,4#
sub58387-42061
main58387-42060-C0i201212-201504
BLACK,TRIM1#,2#,4#
sub58387-42061
main58387-42061-C0i201505-201510
BLACK,TRIM1#,2#,4#
main58387-42061-C0i201505-201510
BLACK,TRIM1#,2#
main58387-42061-C0i201505-201510
BLACK,TRIM1#,2#,3#,4#
main58387-42120-C0i201510-201810
BLACK,TRIM1#,2#,3#,4#
main58387-42120-C0i201510-201810
BLACK,TRIM2#
main58387-42120-C0i201510-201810
BLACK,TRIM1#,2#,4#
main58387-42120-C0i201608-201810
BLACK,TRIM2#,3#
main64716-42020-C0i201510-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#
sub64716-42031
main64716-42020-C0i201212-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
sub64716-42031
main64716-42020-C0i201212-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
sub64716-42031
main64716-42020-C0i201608-201810
SPARE TIRE-GROUND TIRE,BLACK,TRIM2#,3#
sub64716-42031
main64716-42030-C0i201304-201504
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
sub64716-42031
main64716-42030-C0i201304-201504
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
sub64716-42031
main64716-42030-C0i201304-201504
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#
sub64716-42031
main64716-42031-C0i201505-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#
main64716-42031-C0i201505-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#,4#
main64716-42031-C0i201505-201510
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,4#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
main90467-10161i201212-201810
64730JPANEL ASSY, DECK TRIM SIDE, RH
main64730-42091-C0i201212-201410
BLACK,TRIM1#,2#,3#,4#
sub64730-42092
main64730-42091-C0i201212-201410
BLACK,TRIM1#,2#,4#
sub64730-42092
main64730-42092-C0i201411-201510
BLACK,TRIM1#,2#,4#
main64730-42092-C0i201411-201510
BLACK,TRIM1#,2#,3#,4#
main64730-42092-C0i201411-201510
BLACK,TRIM1#,2#
main64730-42100-C0i201510-201705
BLACK,TRIM2#
main64730-42100-C0i201510-201705
BLACK,TRIM1#,2#,4#
main64730-42100-C0i201510-201705
BLACK,TRIM1#,2#,3#,4#
main64730-42100-C0i201705-201810
BLACK,TRIM2#,FRAME NO.=JXXXXXX
main64730-42100-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=JXXXXXX
main64730-42100-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64730-42110-C0i201705-201810
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64730-42110-C0i201510-201705
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM1#,2#,3#,4#
main64730-42110-C0i201510-201705
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM1#,2#,3#,4#
main64730-42110-C0i201705-201810
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64730-42120-C0i201510-201705
BLACK,TRIM1#,2#,4#
main64730-42120-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64730-42120-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=JXXXXXX
main64730-42120-C0i201705-201810
BLACK,TRIM2#,3#,FRAME NO.=JXXXXXX
main64730-42120-C0i201510-201705
BLACK,TRIM1#,2#,3#,4#
main64730-42120-C0i201608-201705
BLACK,TRIM2#,3#
main64730-42130-C0i201510-201705
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM1#,2#,3#,4#
main64730-42130-C0i201510-201705
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM1#,2#,3#,4#
main64730-42130-C0i201705-201810
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64730-42130-C0i201705-201810
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64730-42130-C0i201705-201810
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM2#,3#,FRAME NO.=JXXXXXX
main64730-42130-C0i201708-201810
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM2#,3#,FRAME NO.=JXXXXXX
main64730-42130-C0i201608-201705
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM2#,3#
main64730-42160-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
main64730-42160-C0i201705-201810
BLACK,TRIM2#,FRAME NO.=DXXXXXX
main64730-42160-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=DXXXXXX
main64730-42160-C0i201705-201810
BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
main64730-42170-C0i201705-201810
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
main64730-42170-C0i201705-201810
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
main64730-42170-C0i201705-201810
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
main64730-42170-C0i201705-201810
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
main64730-42180-C0i201705-201810
BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
main64730-42180-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
main64730-42180-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=DXXXXXX
main64730-42190-C0i201705-201810
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
main64730-42190-C0i201705-201810
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
main64730-42190-C0i201705-201810
AUDIO-JBL 7INCH AVN XM NA,BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
main64730-42190-C0i201708-201810
AUDIO-JBL 7INCH AVN NA,BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
64740EPANEL ASSY, DECK TRIM SIDE, LH
main64740-42071-C0i201212-201410
BLACK,TRIM1#,2#,3#,4#
sub64740-42072
main64740-42071-C0i201212-201410
BLACK,TRIM1#,2#,4#
sub64740-42072
main64740-42072-C0i201411-201510
BLACK,TRIM1#,2#,3#,4#
main64740-42072-C0i201411-201510
BLACK,TRIM1#,2#
main64740-42072-C0i201411-201510
BLACK,TRIM1#,2#,4#
main64740-42100-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=JXXXXXX
main64740-42100-C0i201510-201705
BLACK,TRIM2#
main64740-42100-C0i201510-201705
BLACK,TRIM1#,2#,4#
main64740-42100-C0i201510-201705
BLACK,TRIM1#,2#,3#,4#
main64740-42100-C0i201705-201810
BLACK,TRIM2#,FRAME NO.=JXXXXXX
main64740-42100-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64740-42110-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=JXXXXXX
main64740-42110-C0i201705-201810
BLACK,TRIM2#,3#,FRAME NO.=JXXXXXX
main64740-42110-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=JXXXXXX
main64740-42110-C0i201510-201705
BLACK,TRIM1#,2#,3#,4#
main64740-42110-C0i201608-201705
BLACK,TRIM2#,3#
main64740-42110-C0i201510-201705
BLACK,TRIM1#,2#,4#
main64740-42200-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
main64740-42200-C0i201705-201810
BLACK,TRIM2#,FRAME NO.=DXXXXXX
main64740-42200-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=DXXXXXX
main64740-42200-C0i201705-201810
BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
main64740-42210-C0i201705-201810
BLACK,TRIM1#,2#,4#,FRAME NO.=DXXXXXX
main64740-42210-C0i201705-201810
BLACK,TRIM2#,3#,FRAME NO.=DXXXXXX
main64740-42210-C0i201705-201810
BLACK,TRIM1#,2#,3#,4#,FRAME NO.=DXXXXXX
64766DCOVER, DECK SIDE TRIM JACK
main64766-42030-C0i201212-201510
BLACK,TRIM1#,2#,4#
main64766-42030-C0i201212-201510
BLACK,TRIM1#,2#,3#,4#
main64766-42030-C0i201411-201510
BLACK,TRIM1#,2#
64910NCOVER ASSY, TONNEAU
main64910-0R030-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER = *DOP),BLACK,TRIM2#
main64910-0R030-C0i201212-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER = *DOP),BLACK,TRIM1#,2#,3#,4#
main64910-0R030-C0i201212-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER = *DOP),BLACK,TRIM1#,2#,4#
main64910-0R030-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER = *DOP),BLACK,TRIM2#
main64910-0R030-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER = *DOP),BLACK,TRIM1#,2#,4#
main64910-0R030-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER = *DOP),BLACK,TRIM1#,2#,3#,4#
main64910-0R030-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER = *DOP),BLACK,TRIM2#,3#
main64910-0R030-C0i201608-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER = *DOP),BLACK,TRIM2#,3#
main64910-42040-C0i201212-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER),BLACK,TRIM1#,2#,3#,4#
main64910-42040-C0i201212-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER),BLACK,TRIM1#,2#,4#
main64910-42040-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#
main64910-42040-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM1#,2#,3#,4#
main64910-42040-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM1#,2#,4#
main64910-42040-C0i201510-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER),BLACK,TRIM2#
main64910-42040-C0i201608-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER),BLACK,TRIM2#,3#
main64910-42040-C0i201608-201810
PACKAGE TRAY TRIM & TONEAU COVER-WITH(NET TRAY & TONNEAU COVER),BLACK,TRIM2#,3#
64997BOX, DECK FLOOR, LH
main64997-42010i201212-201510
main64997-42050i201510-201810
main64997-42060i201510-201810
main64997-42070i201510-201810
SPARE TIRE-GROUND TIRE
main64997-42080i201510-201810
SPARE TIRE-GROUND TIRE
64997CCLIP(FOR DECK FLOOR BOX)
main90467-05164-B2i201212-201408
DK.GRAY
sub90467-05164
main90467-05164-C0i201408-201610
BLACK
sub90467-05164
main90467-05164-C0i201510-201610
SPARE TIRE-GROUND TIRE,BLACK
sub90467-05164
main90467-05164-C7i201610-201810
BLACK
sub90467-05164
main90467-05164-C7i201610-201810
SPARE TIRE-GROUND TIRE,BLACK
sub90467-05164
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
7370842060C0BRACKET SET, TETHER ANCHOR
main73708-42060C0
9010506130
main90105-06130
9011906840
main90119-06840
9018905096
main90189-05096
9356055014
main93560-55014

24 parts on this diagram · 6 diagrams in section

DECK BOARD & DECK TRIM COVER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
