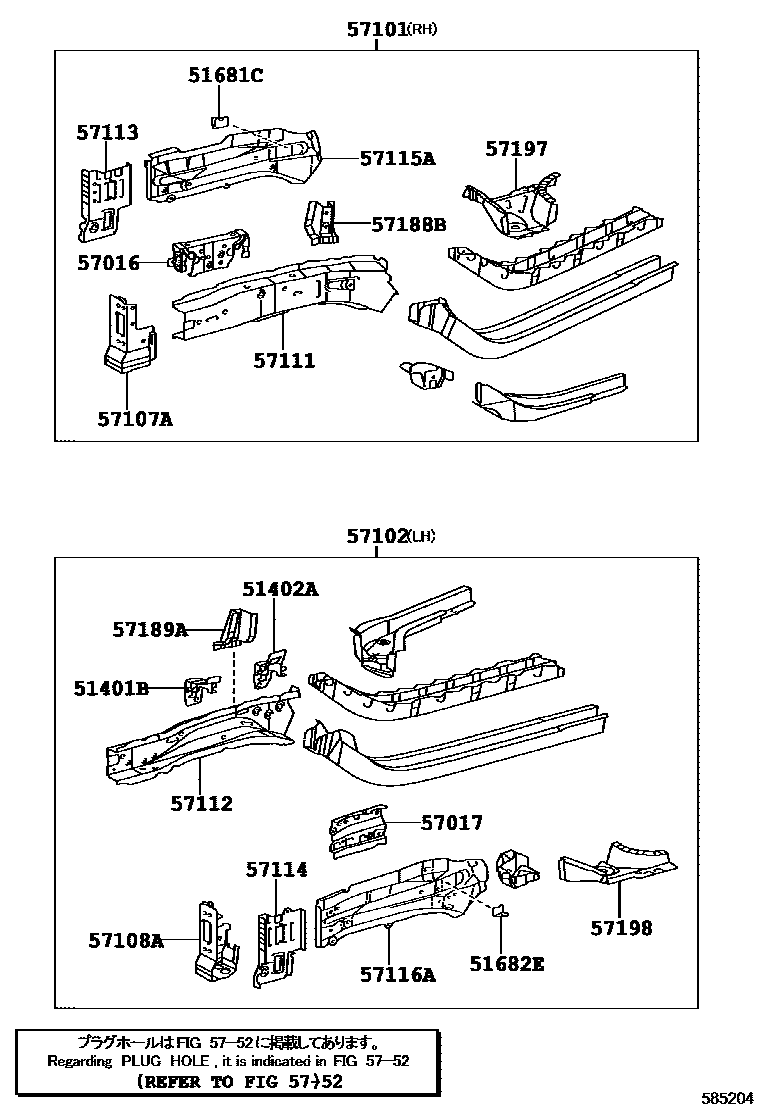

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-42010iASA4#¥2,760201212-201308

main51401-42020iASA4#¥2,560201308-201810

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-42010iASA4#¥2,100201212-201810

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080iASA4#¥660201212-201405

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080iASA4#¥660201212-201405

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iASA4#¥2,940201212-201810

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iASA4#¥2,720201212-201810

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-42110iASA4#¥67,000201212-201401

sub57111-42900¥22,100

sub51681-12080¥660

sub57043-42010¥8,800

sub57053-42011¥4,990

sub57115-12090¥5,800

sub57191-42060¥13,100

sub57197-42060¥3,810

main57111-42900iASA4#¥22,100201401-201810

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-42090iASA4#¥82,400201212-201401

sub57112-42900¥38,000

sub51682-12080¥660

sub57044-42010¥8,800

sub57054-42010¥6,200

sub57116-12090¥8,300

sub57192-42060¥13,100

sub57198-42060¥3,810

main57112-12904iASA4#¥38,000201409-201501

sub57112-12906¥26,300

main57112-12906iASA4#¥26,300201502-201510

main57112-12907iASA4#,AVA44¥24,500201510-201810

main57112-42900iASA4#¥38,000201401-201408

sub57112-12904¥38,000

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-42030iASA4#,AVA44¥5,200201212-201810

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-42030iASA4#¥8,100201212-201501

sub57108-42031¥5,500

main57108-42031iASA4#¥5,500201502-201810

57111MEMBER, FRONT SIDE, RH

main57111-12230iASA4#¥8,800201212-201810

57112MEMBER, FRONT SIDE, LH

main57112-12190iASA4#¥8,800201212-201810

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-42050iASA4#¥3,160201212-201810

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-42051iASA4#¥4,560201212-201408

sub57114-78010¥3,150

main57114-78010iASA4#¥3,150201409-201410

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090iASA4#¥5,800201212-201405

sub57025-12010¥5,800

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090iASA4#¥8,300201212-201312

sub57116-12091¥5,800

main57116-12091iASA4#¥5,800201401-201405

sub57026-12020¥5,800

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-42030iASA4#¥1,650201212-201810

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-42020iASA4#¥1,590201212-201810

57197BOX, TORQUE, FRONT RH

main57197-42060iASA4#¥3,810201212-201810

57198BOX, TORQUE, FRONT LH

main57198-42060iASA4#¥3,810201212-201410

5752

21 parts on this diagram · 6 diagrams in section
