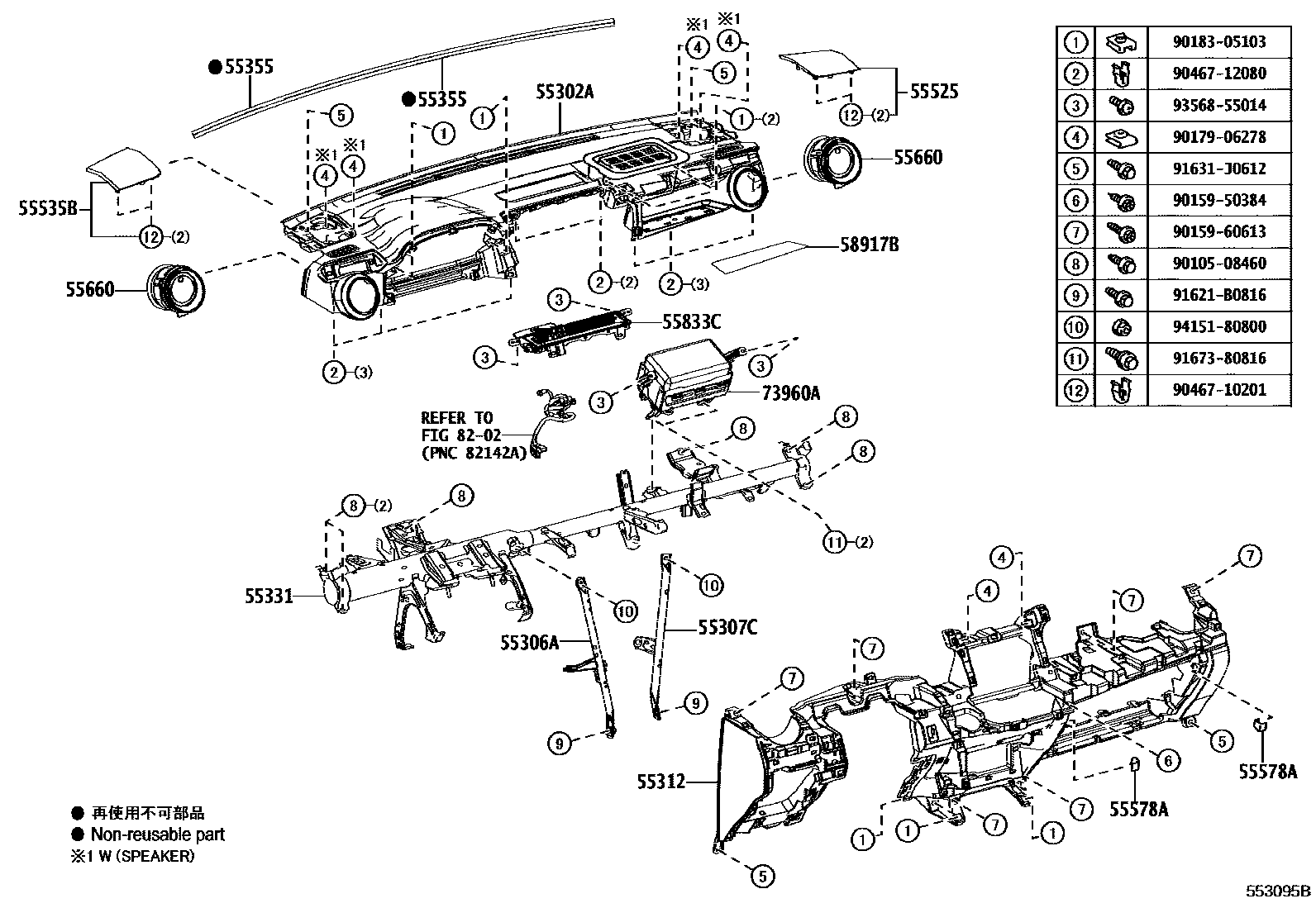

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55312PANEL, INSTRUMENT, LOWER
55355CUSHION, INSTRUMENT PANEL, NO.1
55525COVER, SPEAKER HOLE, NO.1
BLACK,TRIM1#,4#
BLACK,TRIM2#
AUDIO-*DA&USB&*BT&6SPEAKER,BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,3#
55535BCOVER, SPEAKER HOLE, NO.2
BLACK,TRIM1#,4#
AUDIO-*DA&USB&*BT&6SPEAKER,BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
55578ASILENCER, GLOVE COMPARTMENT DOOR
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLK/SMOKE SILVER METALLIC,TRIM20,30
sub55660-42040
55833CCONNECTOR, INSTRUMENT PANEL REGISTER, CENTER
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
58917BMAT, BOX BOTTOM
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508460
main90105-08460
9015950384
main90159-50384
9015960613
main90159-60613
9017906278
main90179-06278
9018305103
main90183-05103
9046710201
main90467-10201
9046712080
main90467-12080
91621B0816
main91621-B0816
91631J0612
main91631-J0612
9167380816
main91673-80816
9356855014
main93568-55014
9415180800
main94151-80800
26 parts on this diagram · 6 diagrams in section
