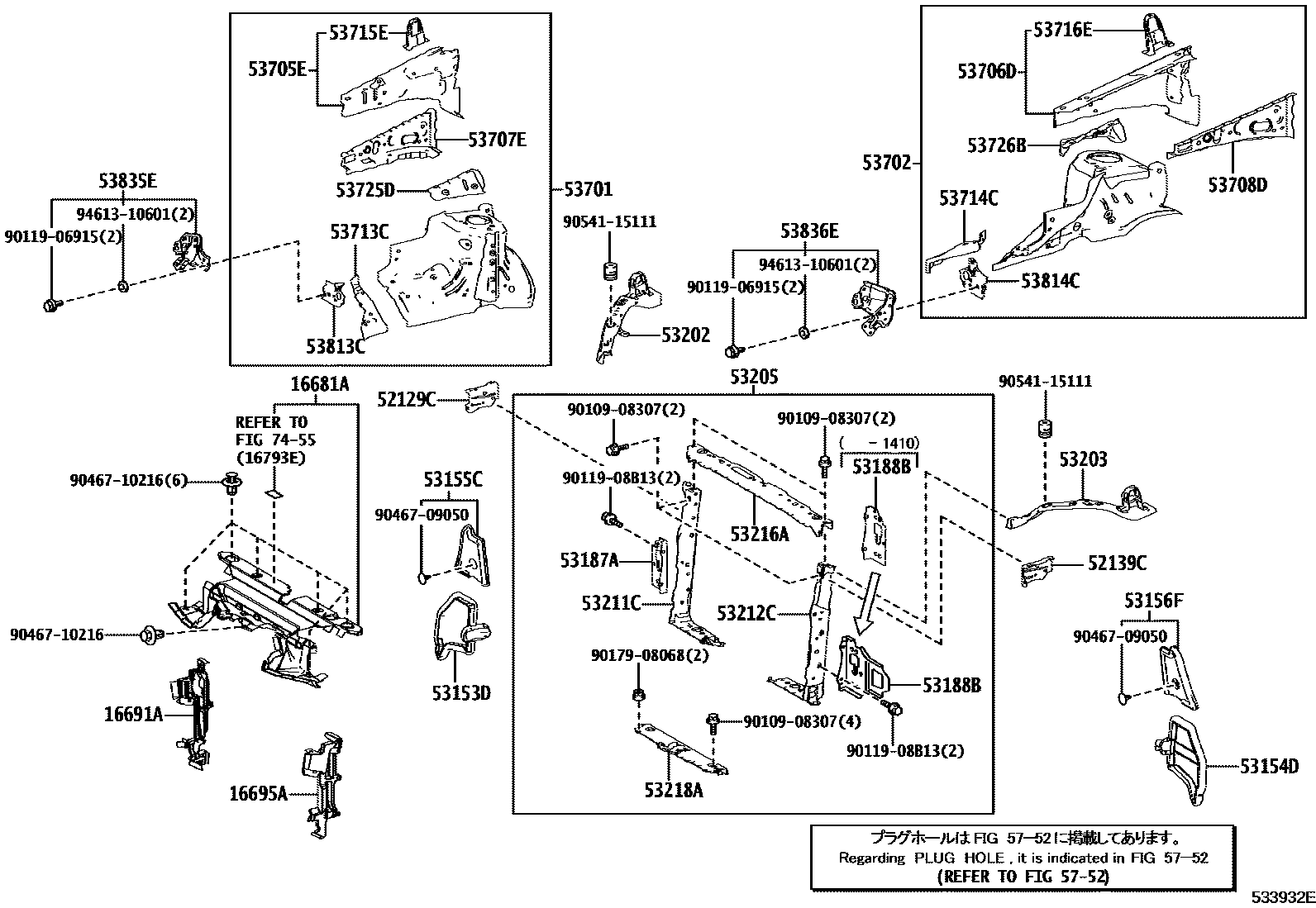

FRONT FENDER APRON & DASH PANEL

0001 1FRONT FENDER APRON 0002 1FRONT FENDER APRON---KOREA SP0003 1FRONT FENDER APRON 0004 1FRONT FENDER APRON---KOREA SP0005 1FRONT FENDER APRON 0006 1DASH PANEL 0007 1DASH PANEL

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-36010i2ARFE..ASA4#201212-201510

main16681-36020i2AR#..ASA4#,AVA44201510-201607

sub16681-36021

main16681-36021i2AR#..ASA4#,AVA44201608-201810

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-36010i2ARFE..ASA4#201212-201510

main16691-36080i2ARFXE..AVA44201510-201604

sub16691-36081

main16691-36081i2ARFXE..AVA44201605-201810

main16691-36090i2ARFE..ASA4#..SE201510-201608

main16691-36110i2ARFE..ASA4#..LE,LIMD,XLE201510-201604

sub16691-36111

main16691-36111i2ARFE..ASA4#..LE,LIMD,XLE201605-201810

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-36010i2ARFE..ASA4#201212-201510

main16695-36080i2ARFXE..AVA44201510-201604

sub16695-36081

main16695-36081i2ARFXE..AVA44201605-201810

main16695-36090i2ARFE..ASA4#..SE201510-201608

main16695-36110i2ARFE..ASA4#..LE,LIMD,XLE201510-201604

sub16695-36111

main16695-36111i2ARFE..ASA4#..LE,LIMD,XLE201605-201810

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52129-42020iASA4#201212-201810

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52139-42020iASA4#201212-201810

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-42010iASA4#201212-201810

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-42020iASA4#201212-201810

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-42040iASA4#201212-201810

53156FSEAL, RADIATOR GRILLE, NO.2

main53156-42020iASA4#201212-201810

53187ASTAY, RADIATOR SUPPORT, RH

main53187-42010iASA4#201212-201810

53188BSTAY, RADIATOR SUPPORT, LH

main53188-42010iASA4#201212-201410

main53188-78010iASA4#201410-201810

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-42030iASA4#201212-201810

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-42040iASA4#201212-201810

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-42080iASA4#201212-201410

main53205-42090iASA4#201410-201510

main53205-42110iASA4#,AVA44201510-201810

53211CSUPPORT, RADIATOR, RH

main53211-42903iASA4#201212-201810

53212CSUPPORT, RADIATOR, LH

main53212-42903iASA4#201212-201810

53216ASUPPORT, RADIATOR, UPPER

main53216-42902iASA4#201212-201810

53218ASUPPORT, RADIATOR, LOWER

main53209-42020iASA4#201212-201510

main53209-78010iASA4#,AVA44201510-201810

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-42150iASA4#201212-201810

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-42160iASA4#201212-201810

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-42020iASA4#201212-201810

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-42020iASA4#201212-201810

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-42010iASA4#201212-201810

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-42010iASA4#201212-201810

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-42040iASA4#201212-201810

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-42040iASA4#201212-201312

sub53714-42041

main53714-42041iASA4#201401-201810

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-42020iASA4#201212-201810

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-42020iASA4#201212-201810

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-42010iASA4#201212-201810

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-42010iASA4#201212-201810

53813CEXTENSION, FRONT FENDER, RH

main53813-42030iASA4#201212-201810

53814CEXTENSION, FRONT FENDER, LH

main53814-42030iASA4#201212-201810

53835EBRACE, FRONT FENDER TO APRON, RH

main53803-42010iASA4#201212-201509

sub53803-42020

main53803-42020iASA4#,AVA44201510-201810

53836EBRACE, FRONT FENDER TO APRON, LH

main53804-42010iASA4#201212-201810

5752

7455

9010908307

main90109-08307

9011906915

main90119-06915

9011908B13

main90119-08B13

9017908068

main90179-08068

9046709050

main90467-09050

9046710216

main90467-10216

9054115111

main90541-15111

9461310601

main94613-10601

44 parts on this diagram · 7 diagrams in section
