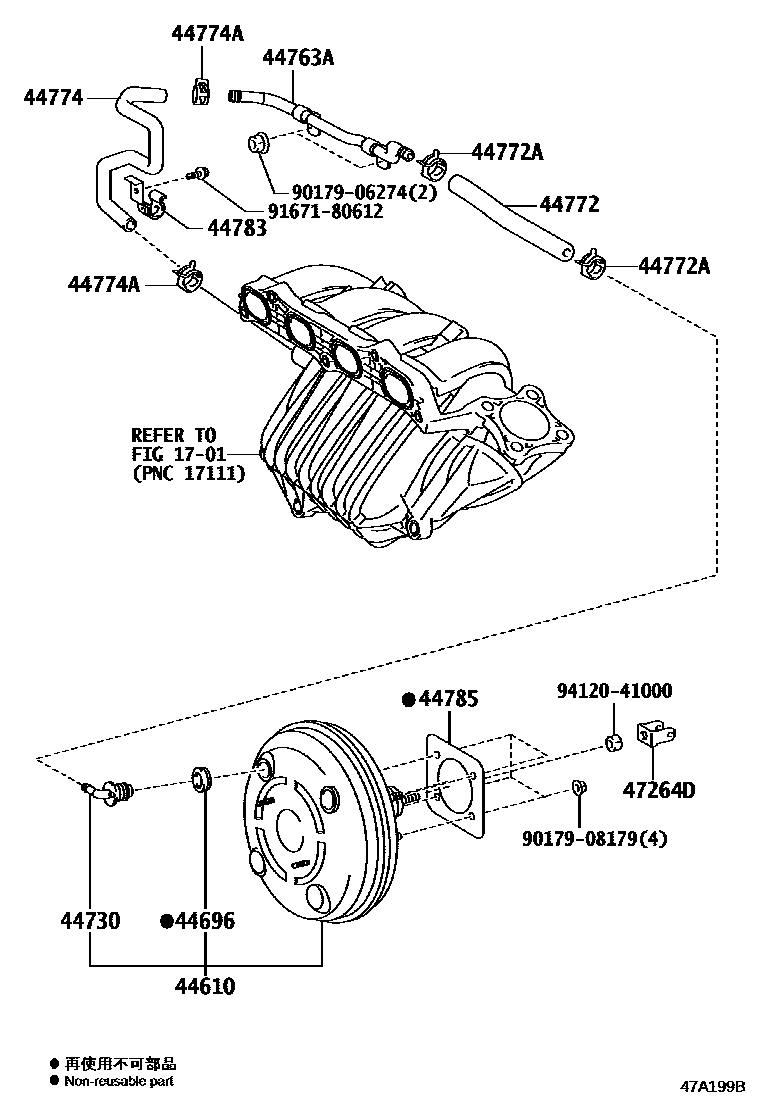

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763ATUBE, HOSE TO HOSE, NO.1
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44783CLAMP, VACUUM HOSE
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
9017906274
main90179-06274
9017908179
main90179-08179
9167180612
main91671-80612
9412041000
main94120-41000
16 parts on this diagram · 1 diagram in section
