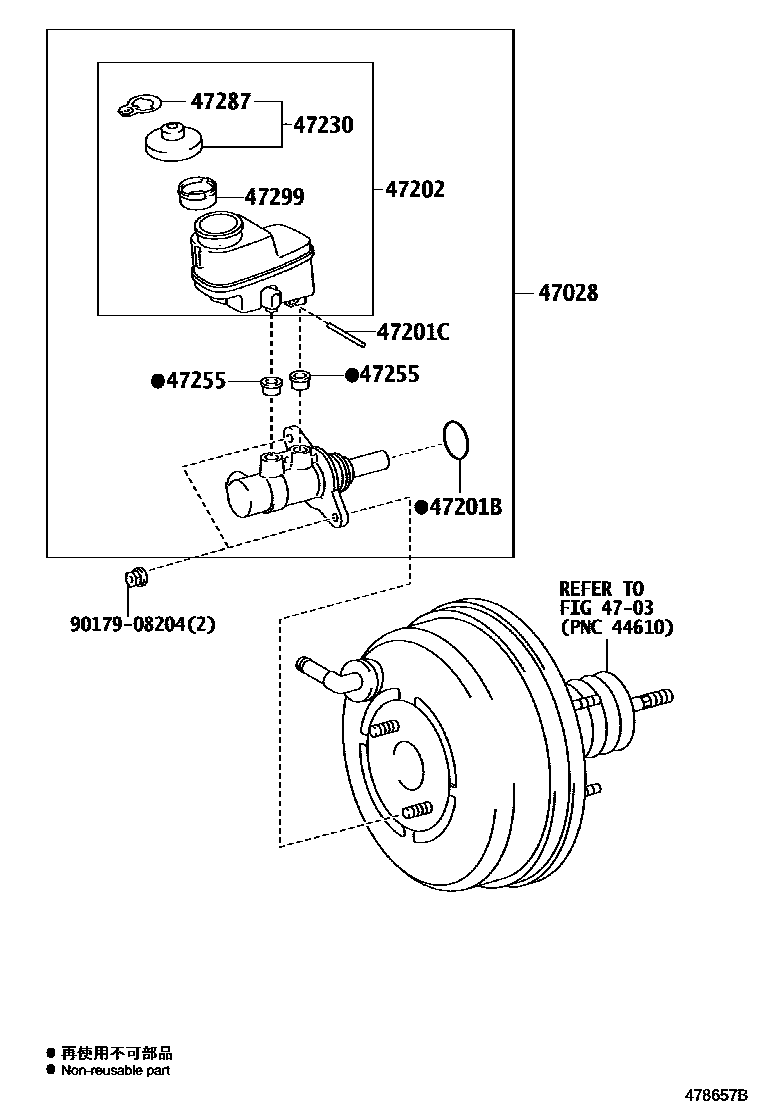

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47201-42340iASA4#..LE201212-201810

sub47028-42030

main47201-42382iASA4#..LIMD,SE,XLE201212-201810

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASA4#201212-201810

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASA4#201212-201810

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iASA4#201212-201810

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASA4#201212-201810

main47230-47090iAVA44201612-201810

main47230-58010iAVA44201510-201612

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASA4#201212-201810

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASA4#..LE201711-201810

main47287-20010iASA4#201212-201810

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iASA4#201212-201810

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
