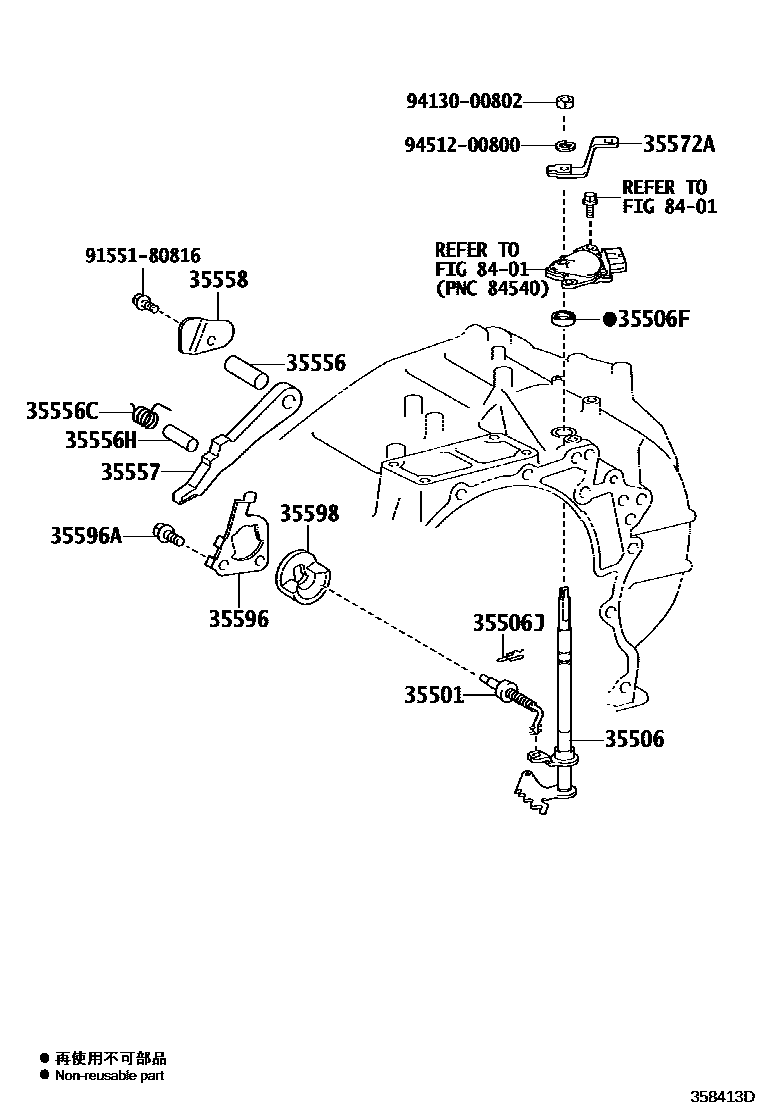

THROTTLE LINK & VALVE LEVER (ATM)
35501ROD SUB-ASSY, PARKING LOCK
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
*284
*285
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
35556HSHAFT, PARKING LOCK PAWL
*285
*284
35557PAWL, PARKING LOCK
35558CLAMP, PAWL SHAFT
*284
*285
35572ALEVER, TRANSMISSION CONTROL SHAFT
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5
35598SLEEVE, PARKING LOCK
8401
9155180816
main91551-80816
9413000802
main94130-00802
9451200800
main94512-00800
17 parts on this diagram · 1 diagram in section
