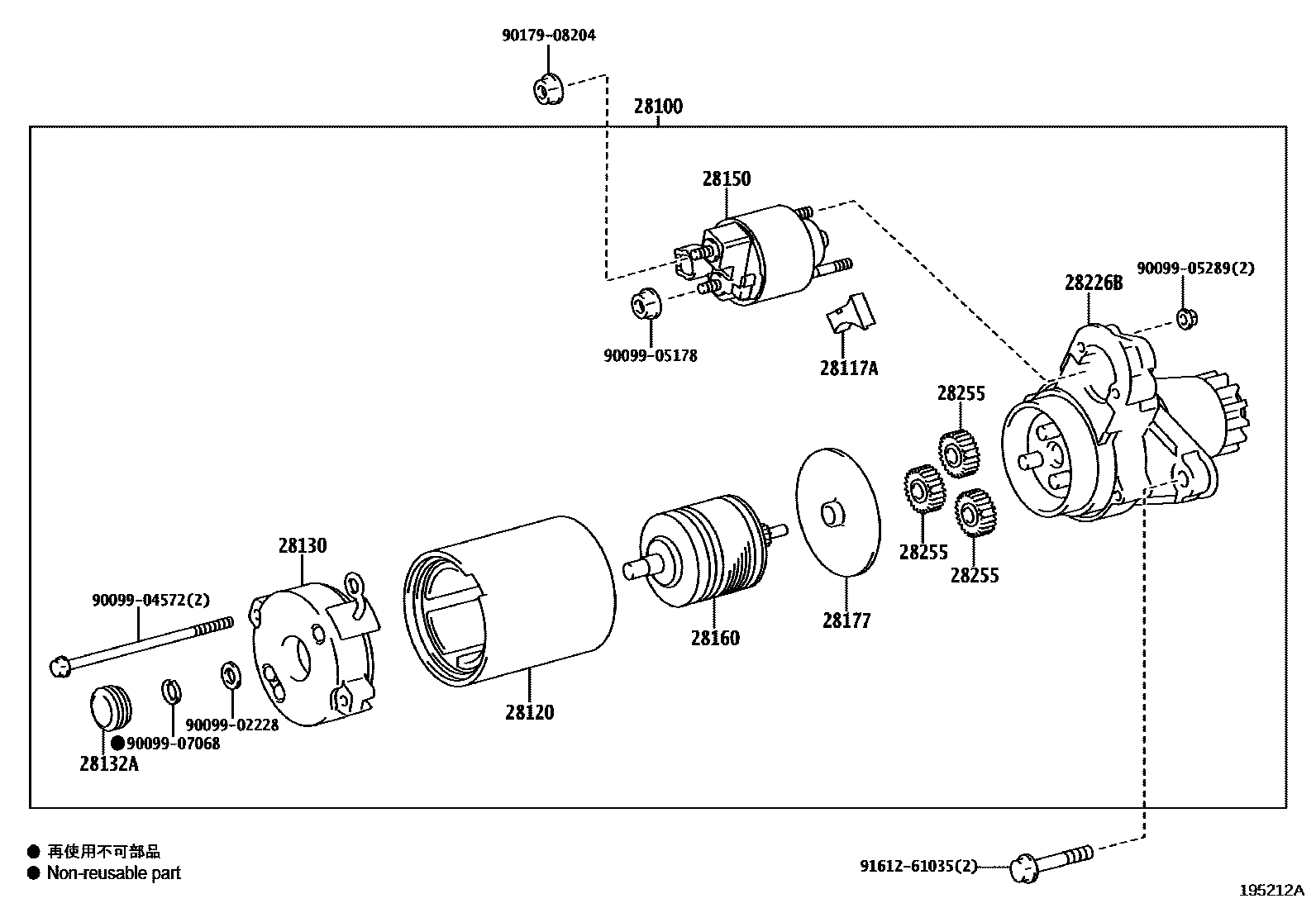

STARTER

28100STARTER ASSY

main28100-20021i2ARFE..ASA4#201212-201407

12V 1.7KW

sub28100-20022

main28100-20022i2ARFE..ASA4#201408-201702

12V 1.7KW

main28100-28072i2ARFE..ASA4#201703-201810

12V 1.7KW

28117ASEAL, RUBBER

main28117-28060i2ARFE..ASA4#201703-201810

28120YOKE ASSY, STARTER

main28120-28060i2ARFE..ASA4#201212-201810

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2ARFE..ASA4#201212-201810

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2ARFE..ASA4#201212-201810

28150SWITCH ASSY, MAGNET STARTER

main28150-40090i2ARFE..ASA4#201703-201810

main28226-28051i2ARFE..ASA4#201212-201703

28160ARMATURE ASSY, STARTER

main28160-28040i2ARFE..ASA4#201212-201810

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ARFE..ASA4#201212-201810

28226BSTARTER KIT, REPAIR SERVICE

main28226-28041i2ARFE..ASA4#201212-201703

main28226-28060i2ARFE..ASA4#201703-201810

28255GEAR, PLANET

main28255-20020i2ARFE..ASA4#201212-201810

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

17 parts on this diagram · 1 diagram in section
