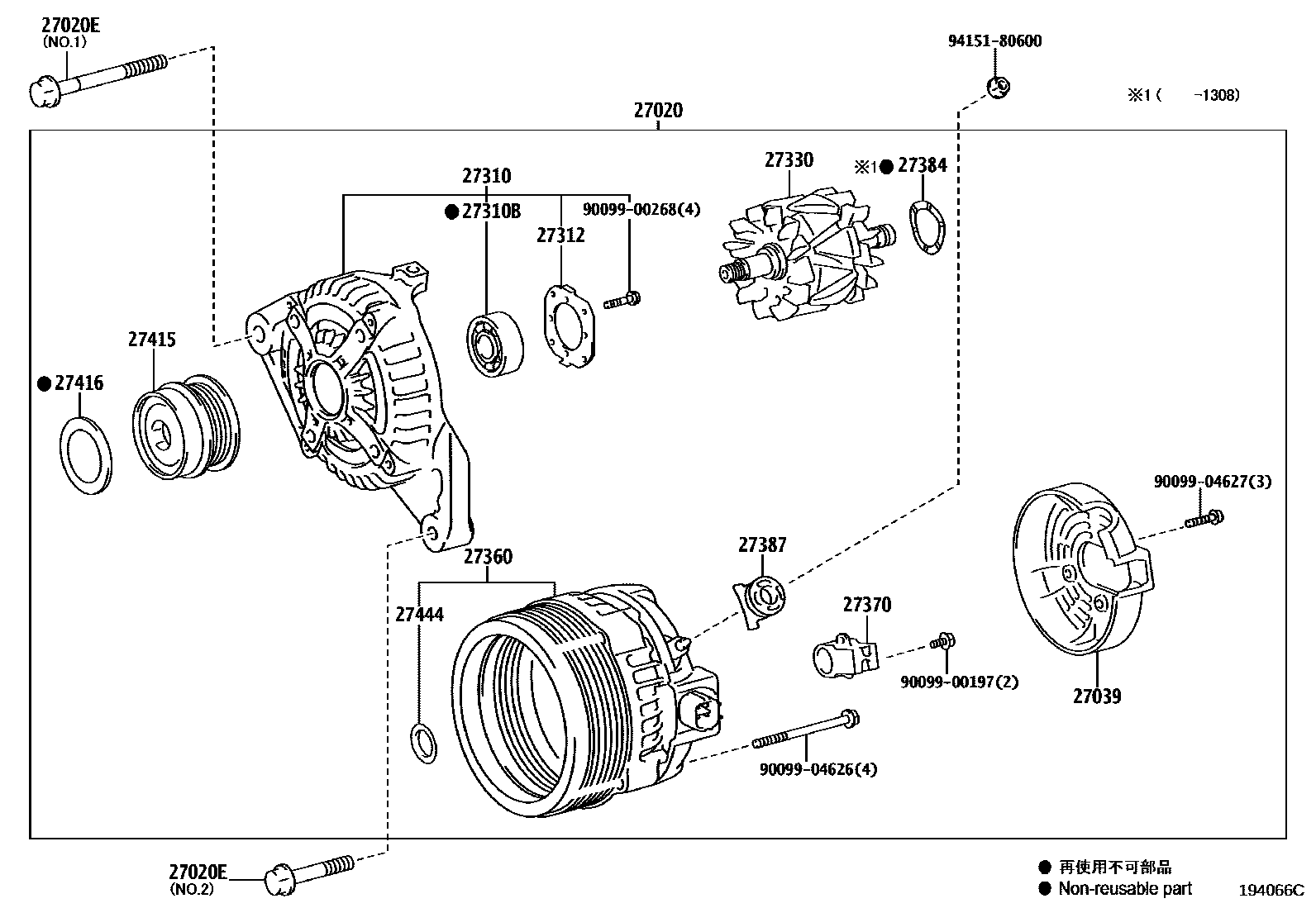

ALTERNATOR

27020ALTERNATOR ASSY

main27060-36080i2ARFE..ASA44201212-201810

12V 100A

main27060-36090i2ARFE..ASA42201212-201810

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10562i2ARFE..ASA4#201212-201810

NO.1

main91552-81045i2ARFE..ASA4#201212-201810

NO.2

27039COVER, ALTERNATOR REAR END

main27039-47330i2ARFE..ASA4#201212-201810

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-36160i2ARFE..ASA4#201212-201810

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2ARFE..ASA4#201212-201810

27312PLATE, RETAINER

main27312-72100i2ARFE..ASA4#201212-201810

27330ROTOR ASSY, ALTERNATOR

main27330-47330i2ARFE..ASA4#201212-201810

27360COIL ASSY, ALTERNATOR

main27360-36160i2ARFE..ASA44201212-201308

sub27360-36161

main27360-36161i2ARFE..ASA44201308-201810

main27360-36170i2ARFE..ASA42201212-201308

sub27360-36171

main27360-36171i2ARFE..ASA42201308-201810

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2ARFE..ASA4#201212-201810

27384WASHER

main27384-38130i2ARFE..ASA4#201212-201308

27387INSULATOR, TERMINAL

main27387-20130i2ARFE..ASA4#201212-201810

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W020i2ARFE..ASA4#201212-201307

sub27415-0W021

main27415-0W021i2ARFE..ASA4#201308-201810

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ARFE..ASA4#201212-201810

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i2ARFE..ASA4#201308-201810

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
