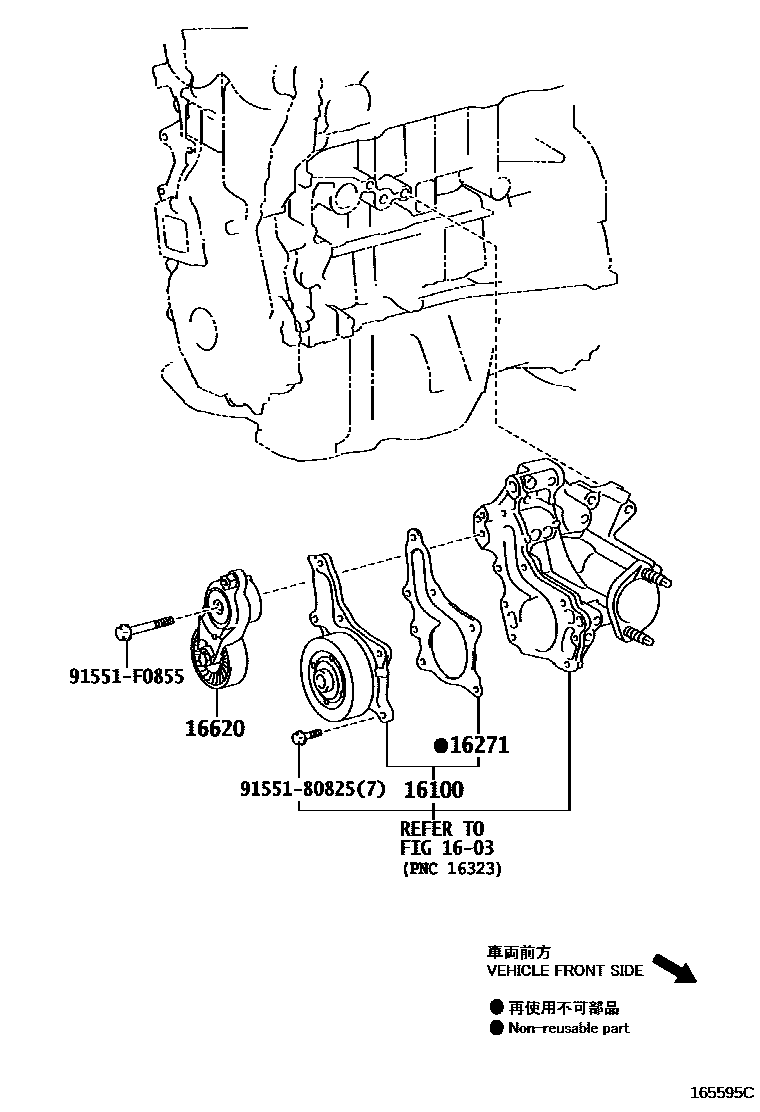

WATER PUMP

0001 1*524 0002 1*347 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09600i2ARFE..ASA4#201312-201810

*347

sub16100-09601

main16100-39515i2ARFE..ASA4#201212-201810

*265 OR *524

sub16100-39516

main16100-39575i2ARFXE..AVA44201510-201810

*347,*265 OR *524

16271GASKET, WATER PUMP

main16271-36010i2ARFE..ASA4#201212-201510

*265 OR *524

main16271-36010i2ARFE..ASA4#201312-201510

*347

main16271-36010i2ARFE..ASA4#201510-201810

*347,*265 OR *524

main16271-36030i2ARFXE..AVA44201510-201810

*347,*265 OR *524

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V041i2ARFE..ASA4#201312-201401

*347T/P A:REF.ILLUST

sub16620-0V042

main16620-0V042i2ARFE..ASA4#201401-201810

*347T/P A:REF.ILLUST

main16620-0V050i2ARFE..ASA4#201410-201508

*347T/P B:REF.ILLUST

sub16620-0V051

main16620-0V051i2AR#..ASA4#,AVA44201509-201810

*347T/P B:REF.ILLUST

main16620-36010i2ARFE..ASA4#201212-201402

*265 OR *524

sub16620-36011

main16620-36011i2ARFE..ASA4#201402-201509

*265 OR *524

sub16620-36012

main16620-36012i2AR#..ASA4#,AVA44201510-201712

*265 OR *524

sub16620-36013

main16620-36013i2AR#..ASA4#,AVA44201801-201810

*265 OR *524

9155180825

main91551-80825

91551F0855

main91551-F0855

6 parts on this diagram · 3 diagrams in section
