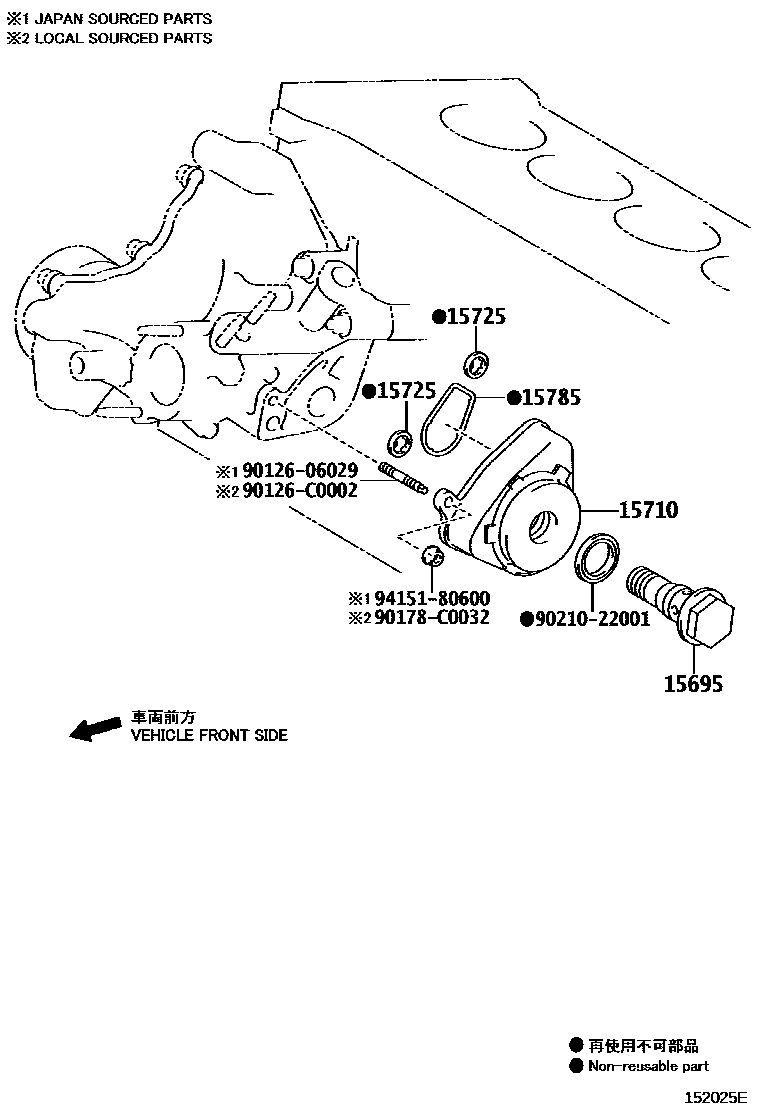

ENGINE OIL COOLER

15695BOLT, OIL COOLER UNION

main15695-62030i2ARFXE..AVA44201510-201810

15710COOLER ASSY, OIL

main15710-36010i2ARFXE..AVA44201510-201810

15725GASKET, OIL COOLER COVER

main15725-36010i2ARFXE..AVA44201510-201810

15785GASKET, OIL COOLER

main15785-36010i2ARFXE..AVA44201510-201810

9012606029

main90126-06029

90126C0002

main90126-C0002

90178C0032

main90178-C0032

9021022001

main90210-22001

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
