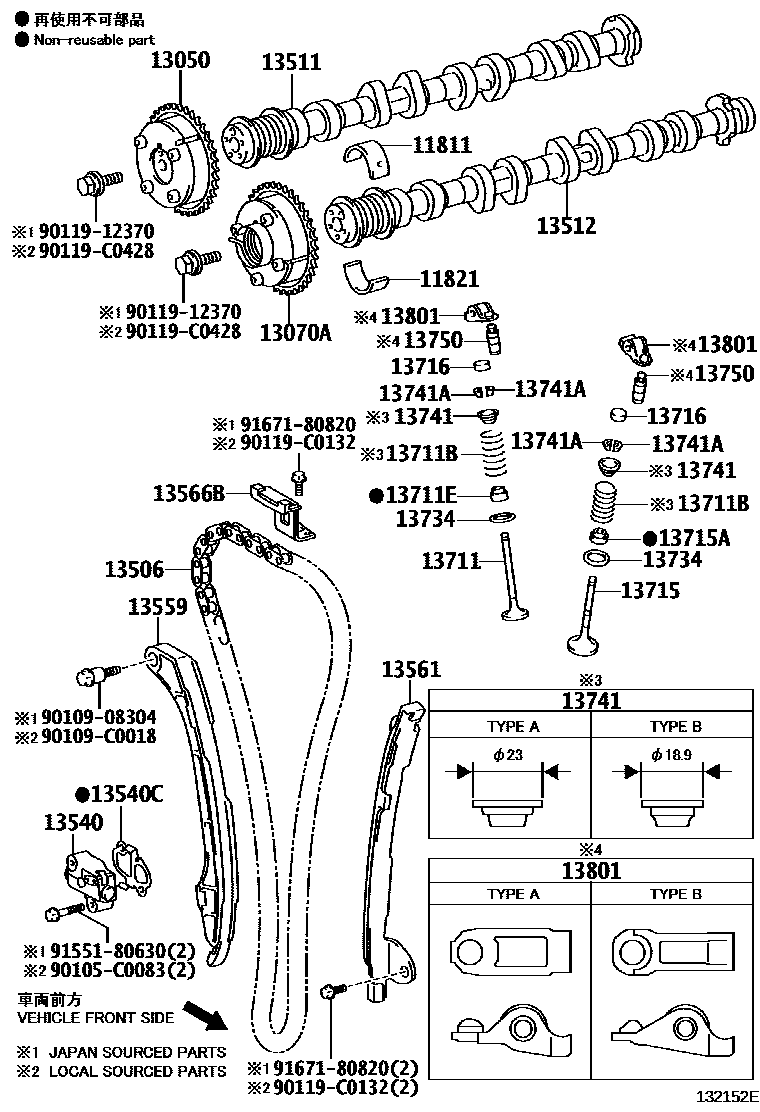

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
*347
*524
*265 OR *524
11821BEARING, CAMSHAFT, NO.2
*347
*265 OR *524
*524
13050GEAR ASSY, CAMSHAFT TIMING
*347
(L),*347
(J),*347,*265 OR *524
*524
*265 OR *524
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*347
*524
*265 OR *524
13506CHAIN SUB-ASSY
*347
*524
*419 OR *463
*265 OR *524
13511CAMSHAFT
*265 OR *524
*265 OR *524
*524
13512CAMSHAFT, NO.2
*265 OR *524
*524
*265 OR *524
13540CGASKET(FOR CHAIN TENSIONER)
*347
*524
*265 OR *524
13559SLIPPER, CHAIN TENSIONER
*347
*524
*524
*265 OR *524
13561DAMPER, CHAIN VIBRATION, NO.1
*347
*524
*524
*265 OR *524
13566BGUIDE, TIMING CHAIN
*347
*524
*265 OR *524
13711VALVE, INTAKE
*347
*524
*265 OR *524
13711BSPRING, COMPRESSION(FOR INNER)
*524,TYPE A
*265 OR *524
*524,TYPE B
*347
*347PNC 13741=TYPE A
*347PNC 13741=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
*524
*265 OR *524
*347
13715VALVE, EXHAUST
*347
*524
*265 OR *524
13715ASEAL, EXHAUST VALVE STEM OIL
*265 OR *524
*524
*347
13716CAP, VALVE STEM
(L),*347
*347
*524
(J),*347
(J),*347,*265 OR *524
13734SEAT, VALVE SPRING
*347
*265 OR *524
*524
13741RETAINER, VALVE SPRING
(L),*347T/P A:SEE
(L),*347
(L),*347T/P B:SEE
(J),*347T/P A:SEE
*347
*524,TYPE A
(J),*347
(J),*347T/P B:SEE
*265 OR *524
*524,TYPE B
13741ALOCK, VALVE SPRING RETAINER
(J),*347
*347
(J),*347,*265 OR *524
*524
(L),*347
13750ADJUSTER ASSY, VALVE LASH
*347
*347PNC 13801=TYPE A
*347PNC 13801=TYPE B
*524,TYPE A
*524,TYPE B
*265 OR *524
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*347
*347T/P A:REF.ILLUST
*347T/P B:REF.ILLUST
*524,TYPE A
*524,TYPE B
*265 OR *524
90105C0083
main90105-C0083
9010908304
main90109-08304
90109C0018
main90109-C0018
9011912370
main90119-12370
90119C0132
main90119-C0132
90119C0428
main90119-C0428
9155180630
main91551-80630
9167180820
main91671-80820
31 parts on this diagram · 2 diagrams in section
