11711BEARING, CRANKSHAFT

main11711-0V040-01i201312-201810

MARK 1,*347:REFER R/M

main11711-0V040-01i201510-201810

MARK 1,NO.1,(L):REFER R/M

main11711-0V040-02i201312-201810

MARK 2,*347:REFER R/M

main11711-0V040-02i201510-201810

MARK 2,NO.1,(L):REFER R/M

main11711-0V040-03i201510-201810

MARK 3,NO.1,(L):REFER R/M

main11711-0V040-03i201312-201810

MARK 3,*347:REFER R/M

main11711-0V040-04i201510-201810

MARK 4,NO.1,(L):REFER R/M

main11711-0V040-04i201312-201810

MARK 4,*347:REFER R/M

main11711-0V050-01i201711-201810

MARK 1,NO.2,(L):REFER R/M

main11711-0V050-02i201711-201810

MARK 2,NO.2,(L):REFER R/M

main11711-0V050-03i201711-201810

MARK 3,NO.2,(L):REFER R/M

main11711-0V050-04i201711-201810

MARK 4,NO.2,(L):REFER R/M

main11711-36040-01i201510-201810

MARK 1,NO.2,(J):REFER R/M

main11711-36040-02i201510-201810

MARK 2,NO.2,(J):REFER R/M

main11711-36040-03i201510-201810

MARK 3,NO.2,(J):REFER R/M

main11711-36040-04i201510-201810

MARK 4,NO.2,(J):REFER R/M

main11711-36050-01i201212-201810

MARK 1,*265,*524:REFER R/M

main11711-36050-01i201510-201810

MARK 1,NO.1,(J):REFER R/M

main11711-36050-02i201212-201810

MARK 2,*265,*524:REFER R/M

main11711-36050-02i201510-201810

MARK 2,NO.1,(J):REFER R/M

main11711-36050-03i201510-201810

MARK 3,NO.1,(J):REFER R/M

main11711-36050-03i201212-201810

MARK 3,*265,*524:REFER R/M

main11711-36050-04i201212-201810

MARK 4,*265,*524:REFER R/M

main11711-36050-04i201510-201810

MARK 4,NO.1,(J):REFER R/M

11721BEARING, CRANKSHAFT, NO.2

main11721-0V040-01i201312-201810

MARK 1,*347:REFER R/M

main11721-0V040-01i201510-201810

MARK 1,NO.1,(L):REFER R/M

main11721-0V040-02i201510-201810

MARK 2,NO.1,(L):REFER R/M

main11721-0V040-02i201312-201810

MARK 2,*347:REFER R/M

main11721-0V040-03i201510-201810

MARK 3,NO.1,(L):REFER R/M

main11721-0V040-03i201312-201810

MARK 3,*347:REFER R/M

main11721-0V040-04i201312-201810

MARK 4,*347:REFER R/M

main11721-0V040-04i201510-201810

MARK 4,NO.1,(L):REFER R/M

main11721-0V050-01i201711-201810

MARK 1,NO.2,(L):REFER R/M

main11721-0V050-02i201711-201810

MARK 2,NO.2,(L):REFER R/M

main11721-0V050-03i201711-201810

MARK 3,NO.2,(L):REFER R/M

main11721-0V050-04i201711-201810

MARK 4,NO.2,(L):REFER R/M

main11721-36040-01i201510-201810

MARK 1,NO.2,(J):REFER R/M

main11721-36040-02i201510-201810

MARK 2,NO.2,(J):REFER R/M

main11721-36040-03i201510-201810

MARK 3,NO.2,(J):REFER R/M

main11721-36040-04i201510-201810

MARK 4,NO.2,(J):REFER R/M

main11721-36050-01i201212-201810

MARK 1,*265,*524:REFER R/M

main11721-36050-01i201510-201810

MARK 1,NO.1,(J):REFER R/M

main11721-36050-02i201212-201810

MARK 2,*265,*524:REFER R/M

main11721-36050-02i201510-201810

MARK 2,NO.1,(J):REFER R/M

main11721-36050-03i201212-201810

MARK 3,*265,*524:REFER R/M

main11721-36050-03i201510-201810

MARK 3,NO.1,(J):REFER R/M

main11721-36050-04i201212-201810

MARK 4,*265,*524:REFER R/M

main11721-36050-04i201510-201810

MARK 4,NO.1,(J):REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-0V020i201312-201810

STD,*347

main11791-36010i201212-201408

STD,*265 OR *524

main11791-36020i201408-201810

STD,*265 OR *524

13011RING SET, PISTON

main13011-0V020i201312-201411

STD,*347

sub13011-36030

main13011-0V070i201510-201810

STD,PNC 13211=MARK 0V100

main13011-0V070i201510-201810

STD,PNC 13211=MARK 0V090

main13011-0V070i201411-201510

STD,*347

main13011-36070i201212-201401

STD,*265 OR *524

sub13011-36071

main13011-36071i201402-201707

STD,PNC 13211=MARK 36032

main13011-36120i201510-201707

STD,*398

sub13011-36170

main13011-36120i201407-201510

STD,PNC 13211=MARK 36090

sub13011-36170

main13011-36120i201707-201810

STD,*265 OR *524

sub13011-36170

13041BEARING, CONNECTING ROD

main13281-0V020-01i201312-201604

MARK 1,*347:REFER R/M

sub13281-0V021

main13281-0V020-02i201312-201604

MARK 2,*347:REFER R/M

sub13281-0V021

main13281-0V020-03i201312-201604

MARK 3,*347:REFER R/M

sub13281-0V021

main13281-0V021-01i201605-201810

MARK 1,*347:REFER R/M

main13281-0V021-02i201605-201810

MARK 2,*347:REFER R/M

main13281-0V021-03i201605-201810

MARK 3,*347:REFER R/M

main13281-36020-01i201212-201312

MARK 1,*265,*524:REFER R/M

sub13281-36021

main13281-36020-02i201212-201312

MARK 2,*265,*524:REFER R/M

sub13281-36021

main13281-36020-03i201212-201312

MARK 3,*265,*524:REFER R/M

sub13281-36021

main13281-36021-01i201401-201810

MARK 1,*265,*524:REFER R/M

main13281-36021-02i201401-201810

MARK 2,*265,*524:REFER R/M

main13281-36021-03i201401-201810

MARK 3,*265,*524:REFER R/M

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i201312-201510

*347

main90520-22025i201510-201810

*347,*265 OR *524

main90520-22025i201212-201510

*265 OR *524

13201ROD SUB-ASSY, CONNECTING

main13201-09A80-A0i201312-201605

MARK A,*347:REFER R/M

sub13201-09A81

sub13201-39225

main13201-09A80-B0i201312-201605

MARK B,*347:REFER R/M

sub13201-09A81

sub13201-39225

main13201-09A80-C0i201312-201605

MARK C,*347:REFER R/M

sub13201-09A81

sub13201-39225

main13201-09A81-A0i201605-201810

MARK A,*347:REFER R/M

sub13201-39226

main13201-09A81-B0i201605-201810

MARK B,*347:REFER R/M

sub13201-39226

main13201-09A81-C0i201605-201810

MARK C,*347:REFER R/M

sub13201-39226

main13201-39225-A0i201303-201401

MARK A,*265,*524:REFER R/M

sub13201-39226

main13201-39225-A0i201212-201303

MARK A,REFER REPAIR MANUAL

sub13201-39226

main13201-39225-B0i201303-201401

MARK B,*265,*524:REFER R/M

sub13201-39226

main13201-39225-B0i201212-201303

MARK B,REFER REPAIR MANUAL

sub13201-39226

main13201-39225-C0i201212-201303

MARK C,REFER REPAIR MANUAL

sub13201-39226

main13201-39225-C0i201303-201401

MARK C,*265,*524:REFER R/M

sub13201-39226

main13201-39226-A0i201401-201810

MARK A,*265,*524:REFER R/M

main13201-39226-B0i201401-201810

MARK B,*265,*524:REFER R/M

main13201-39226-C0i201401-201810

MARK C,*265,*524:REFER R/M

13211PISTON

main13211-0V040-A0i201312-201411

MARK A,*347:REFER R/M

main13211-0V040-B0i201312-201411

MARK B,*347:REFER R/M

main13211-0V040-C0i201312-201411

MARK C,*347:REFER R/M

main13211-0V090-A0i201411-201510

MARK A,*347:REFER R/M

main13211-0V090-A0i201510-201810

MARK A,MARK 0V090,*RRM

main13211-0V090-B0i201510-201810

MARK B,MARK 0V090,*RRM

main13211-0V090-B0i201411-201510

MARK B,*347:REFER R/M

main13211-0V090-C0i201411-201510

MARK C,*347:REFER R/M

main13211-0V090-C0i201510-201810

MARK C,MARK 0V090,*RRM

main13211-0V100-A0i201510-201810

MARK A,MARK 0V100,*RRM

main13211-0V100-B0i201510-201810

MARK B,MARK 0V100,*RRM

main13211-0V100-C0i201510-201810

MARK C,MARK 0V100,*RRM

main13211-36032-A0i201407-201707

MARK A,MARK 36032,*RRM

main13211-36032-A0i201212-201407

MARK A,*265,*524:REFER R/M

main13211-36032-B0i201212-201407

MARK B,*265,*524:REFER R/M

main13211-36032-B0i201407-201707

MARK B,MARK 36032,*RRM

main13211-36032-C0i201212-201407

MARK C,*265,*524:REFER R/M

main13211-36032-C0i201407-201707

MARK C,MARK 36032,*RRM

main13211-36090-A0i201407-201707

MARK A,MARK 36090,*RRM

main13211-36090-A0i201707-201810

MARK A,*265,*524:REFER R/M

main13211-36090-B0i201407-201707

MARK B,MARK 36090,*RRM

main13211-36090-B0i201707-201810

MARK B,*265,*524:REFER R/M

main13211-36090-C0i201407-201707

MARK C,MARK 36090,*RRM

main13211-36090-C0i201707-201810

MARK C,*265,*524:REFER R/M

main13211-36100-A0i201510-201810

MARK A,*265,*524:REFER R/M

main13211-36100-B0i201510-201810

MARK B,*265,*524:REFER R/M

main13211-36100-C0i201510-201810

MARK C,*265,*524:REFER R/M

main13211-36120-A0i201408-201707

MARK A,MARK 0V030,*RRM

sub13211-0V030

main13211-36120-B0i201408-201707

MARK B,MARK 0V030,*RRM

sub13211-0V030

main13211-36120-C0i201408-201707

MARK C,MARK 0V030,*RRM

sub13211-0V030

13251PIN, PISTON

main13251-0H040-A0i201312-201810

MARK A,*347:REFER R/M

main13251-0H040-B0i201312-201810

MARK B,*347:REFER R/M

main13251-0H040-C0i201312-201810

MARK C,*347:REFER R/M

main13251-28020-A0i201212-201810

MARK A,*265,*524:REFER R/M

main13251-28020-B0i201212-201810

MARK B,*265,*524:REFER R/M

main13251-28020-C0i201212-201810

MARK C,*265,*524:REFER R/M

13265BOLT, CONNECTING ROD

main13265-0V010i201709-201810

(L),*347

main13265-31020i201312-201709

*347

main13265-31020i201212-201810

*265 OR *524

main13265-31020i201709-201810

(J),*347

13411CRANKSHAFT

main13401-0V021i201312-201810

*347

sub13401-36011

main13401-36011i201212-201810

*265 OR *524

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main90280-C0001i201803-201810

(L),*347

main95161-30516i201212-201810

*265 OR *524

main95161-30516i201312-201803

*347

main95161-30516i201803-201810

(J),*347

13471PULLEY, CRANKSHAFT

main13470-0V030i201312-201810

*347

main13470-36010i201212-201810

*265 OR *524

main13470-36040i201510-201810

*347,*265 OR *524

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-C0001i201803-201810

(L),*347

main95161-30516i201212-201810

*265 OR *524

main95161-30516i201312-201803

*347

main95161-30516i201803-201810

(J),*347

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i201212-201810

*265 OR *524

main90119-16020i201312-201702

*347

main90119-16020i201702-201810

(J),*347

main90119-C0429i201702-201810

(L),*347

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0V020i201312-201810

*347

main13521-36010i201212-201810

*265 OR *524

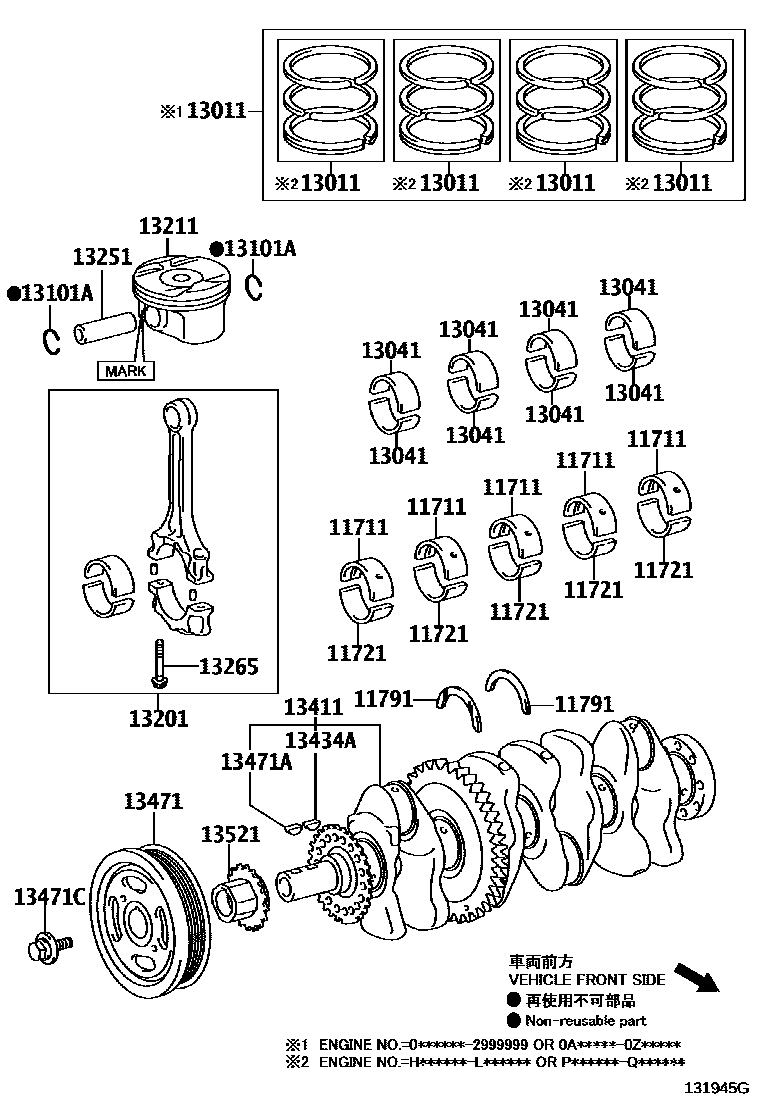

CRANKSHAFT & PISTON
