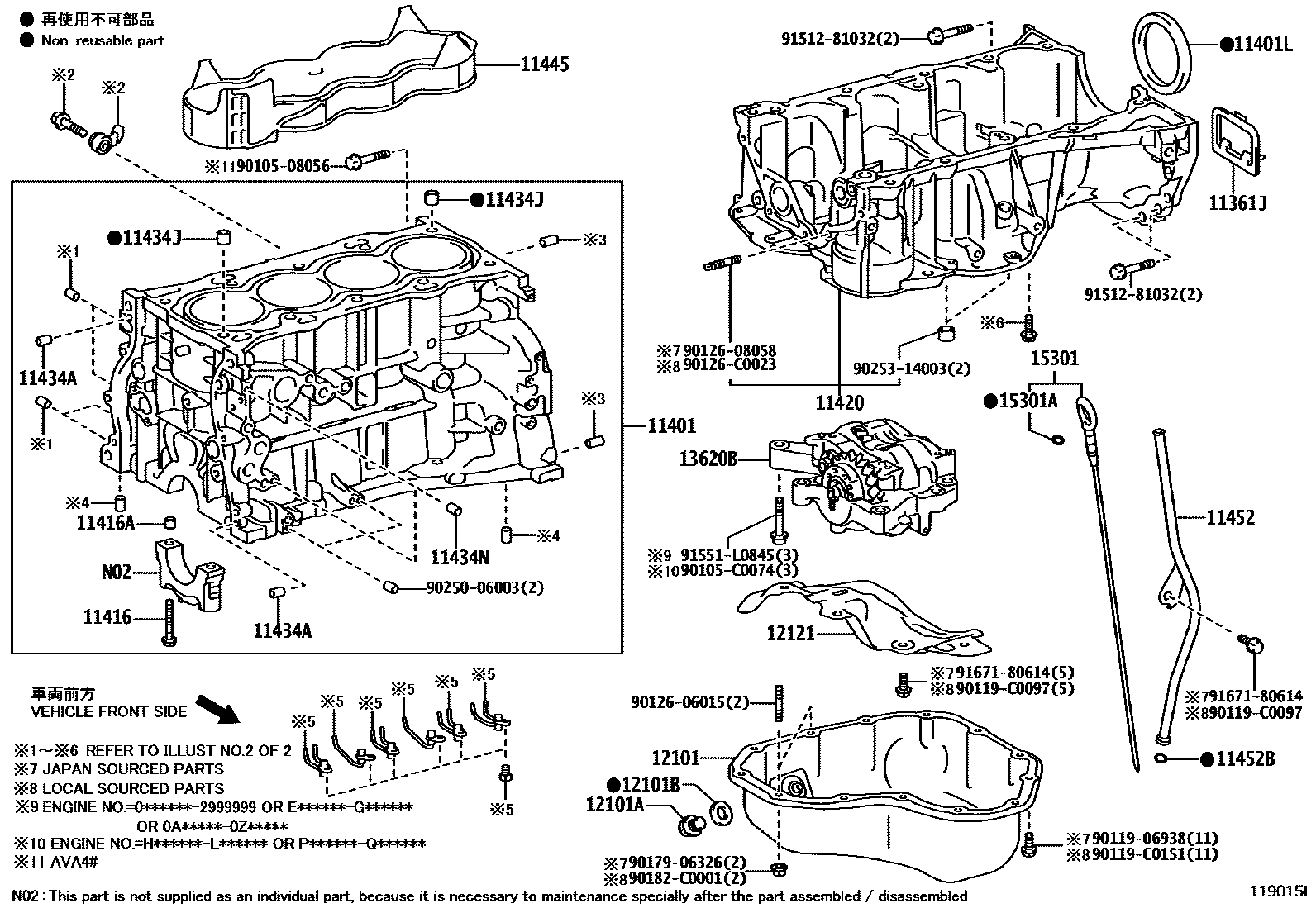

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
*265 OR *524
*265 OR *524
11401LSEAL, ENGINE REAR OIL
*265 OR *524
*347
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J),*347,*265 OR *524
*347
(J),*347
*265 OR *524
(L),*347
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
*265 OR *524
(J),*347
(J),*347,*265 OR *524
(L),*347
11420CRANKCASE ASSY, STIFFENING
*347
*265 OR *524
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6,*347
L=14,OD=6,*347,*265 OR *524
L=14,OD=6,*265 OR *524
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J),*347
*265 OR *524
*347
(L),*347
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*265 OR *524
*347
*347,*265 OR *524
11445SPACER, CYLINDER BLOCK WATER JACKET
(L),*347
(J),*347,*265 OR *524
*265 OR *524
(J),*347
11452GUIDE, OIL LEVEL GAGE
*265 OR *524
*347
*265 OR *524
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
*347
(L),*347
*265 OR *524
(J),*347,*265 OR *524
12101PAN SUB-ASSY, OIL
(L),*347
(J),*347,*265 OR *524
*265 OR *524
(J),*347
12101APLUG(FOR OIL PAN DRAIN)
*265 OR *524
*347
*347,*265 OR *524
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J),*347,*265 OR *524
*347
*265 OR *524
(J),*347
(L),*347
12121PLATE, OIL PAN BAFFLE, NO.1
*347
*265 OR *524
13620BBALANCER ASSY, ENGINE
*265 OR *524
*347
*265 OR *524
15301GAGE SUB-ASSY, OIL LEVEL
*347
15301ARING, O(FOR OIL LEVEL GAGE)
*347,*265 OR *524
9010508056
90105C0074
main90105-C0074
9011906938
90119C0097
main90119-C0097
90119C0151
main90119-C0151
9012606015
9012608058
90126C0023
main90126-C0023
9017906326
90182C0001
main90182-C0001
9025006003
9025314003
9151281032
91551L0845
9167180614
34 parts on this diagram · 2 diagrams in section
