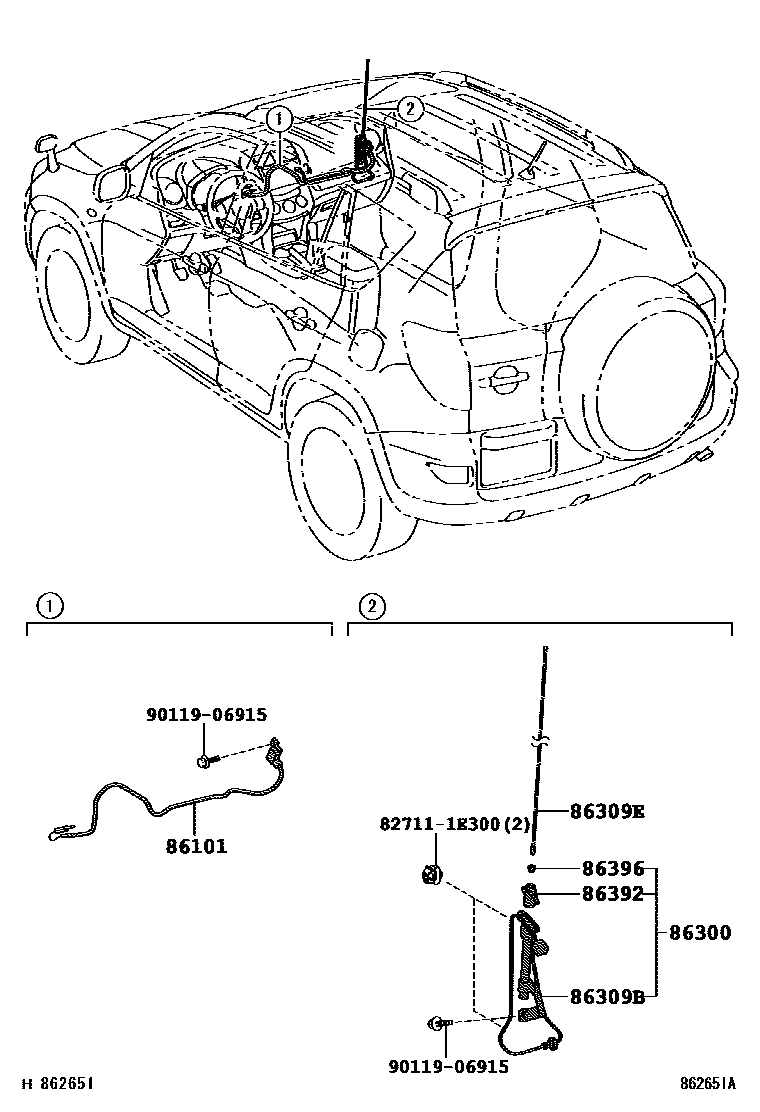

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-42270iACA3#,GSA3#..JPP200511-200808

main86101-42310iASA3#,GSA3#..JPP..(SPO,X)200808-201112

PUERTORICO SPEC&AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86101-42310iASA3#,GSA3#..JPP..(SPO,X)200808-201112

PUERTORICO SPEC&AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86101-42310iASA3#,GSA3#..JPP..(SPO,X)200808-201112

AUDIO-DVD-NAVIGATION,CD,MULTI-PANEL

main86101-42310iASA3#,GSA3#..JPP..LIMD..USA200808-201112

PUERTORICO SPEC

main86101-42450iASA3#,GSA3#..JPP..LIMD200808-201112

AUDIO-6CD CHANGER,SDARS,UNIQUE-PANEL

main86101-42471iASA3#,GSA3#..JPP201112-201212

86300ANTENNA ASSY, W/HOLDER

main86300-42130iACA3#,GSA3#..JPP200511-200808

main86300-42230iASA3#,GSA3#..JPP201112-201212

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-42050iACA3#,GSA3#..JPP200511-200808

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42060iACA3#,GSA3#..JPP200511-200808

sub86309-0C020

main86309-42080iASA3#,GSA3#..JPP200808-201212

86392ORNAMENT, ANTENNA

main86392-42020iACA3#,GSA3#..JPP200511-200808

86396NUT, ANTENNA

main86396-30050iASA3#,GSA3#..JPP200808-200910

main86396-42010iACA3#,GSA3#..JPP200511-200808

main86396-47010iASA3#,GSA3#..JPP200911-201212

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9011906915

main90119-06915

8 parts on this diagram · 2 diagrams in section
