BATTERY & BATTERY CABLE

28800BATTERY

main28800-28080i2ARFE,2GRFE..ASA3#,GSA3#..JPP200511-201212

80D26L,MATSUSHITA

sub28800-67102

main28800-54020i2ARFE,2GRFE..ASA3#,GSA3#..JPP200511-201212

80D26L,YUASA

sub28800-67102

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200910

main90982-05061i2ARFE,2GRFE..ASA3#,GSA3#..JPP200911-201212

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-48020i2ARFE,2GRFE..ASA3#,GSA3#..JPP200511-201212

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200908

28898PLATE, BATTERY

main28897-46020i2AZFE,2GRFE..ACA33,GSA33..JPP..CND200511-201212

28899INSULATOR, BATTERY

main28899-28030i2AZFE..ACA3#..JPP200511-201212

main28899-31040i2GRFE..GSA3#..JPP200601-201212

8401

9415180801

main94151-80801

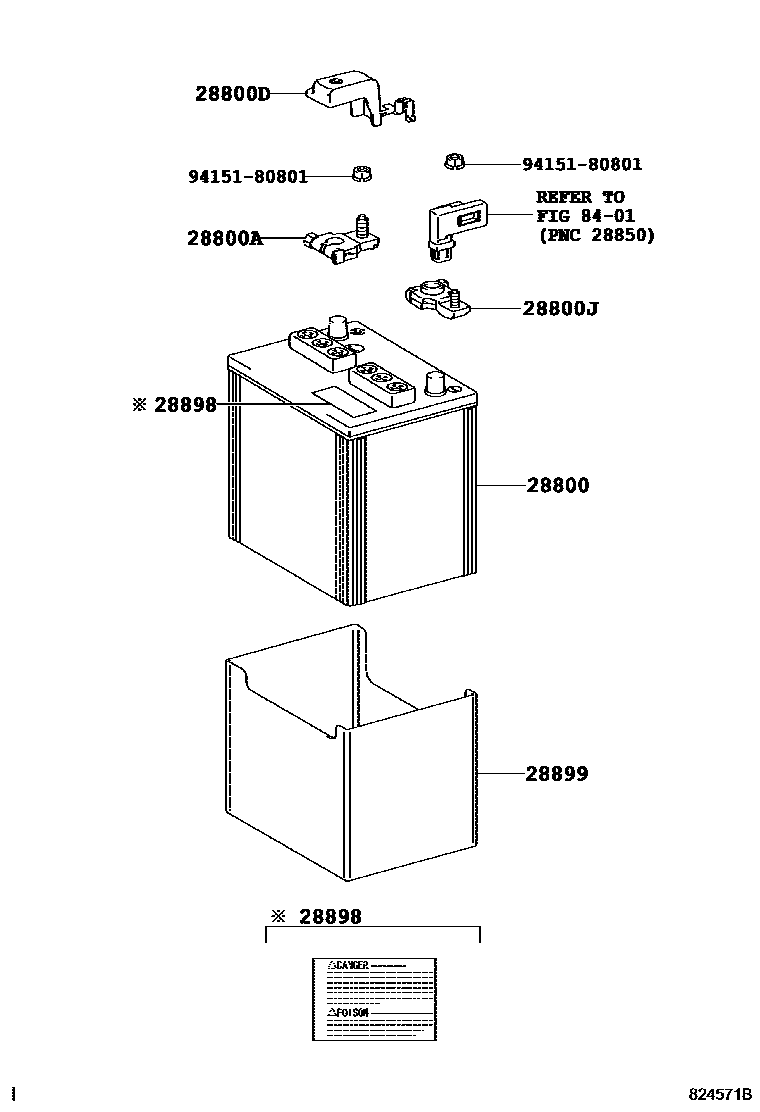

8 parts on this diagram · 1 diagram in section
