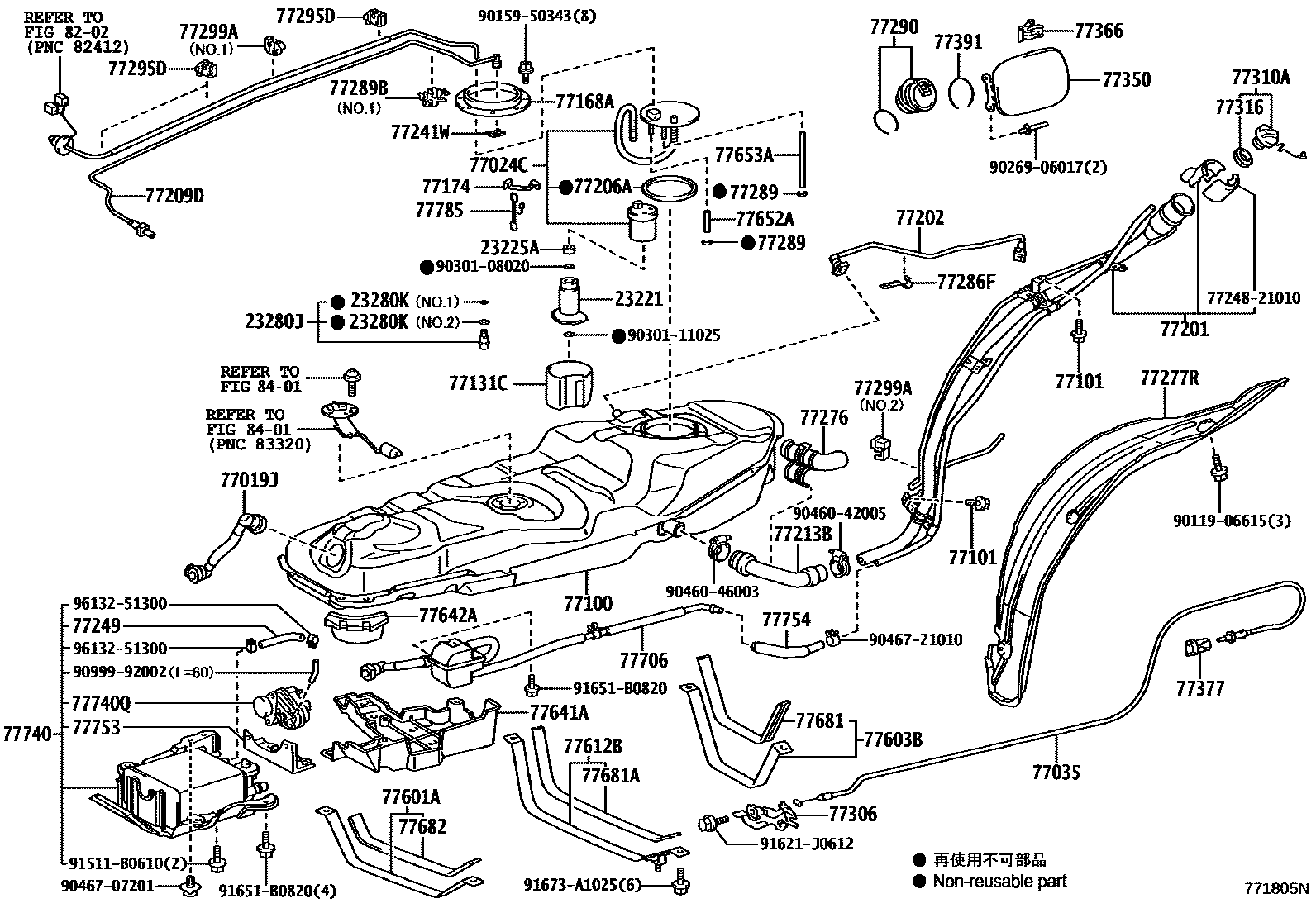

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE

23221PUMP, FUEL

main23220-28090i2AZFE..ACA3#..JPP200511-200808

main23220-31120i2GRFE..GSA3#..JPP200601-200808

main23220-31410i2GRFE..GSA3#..JPP200808-201202

sub23220-31411

sub77785-42040

sub77785-42050

main23220-31411i2GRFE..GSA3#..JPP201202-201212

main23220-36010i2ARFE..ASA3#..JPP200808-201201

sub23220-36011

sub77785-42031

sub77785-42040

sub77785-42050

main23220-36011i2ARFE..ASA3#..JPP201201-201212

23225ASPACER, FUEL PUMP

main23225-21020i2ARFE,2GRFE..ASA3#,GSA3#..JPP200808-201212

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ARFE,2GRFE..ASA3#,GSA3#..JPP200511-201212

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ARFE,2GRFE..ASA3#,GSA3#..JPP200511-201212

NO.1

main90301-15024i2ARFE,2GRFE..ASA3#,GSA3#..JPP200511-201212

NO.2

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-42070iACA3#,GSA3#..JPP200511-201212

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-42050iACA3#,GSA3#..JPP200511-200808

main77024-42070iASA3#,GSA3#..JPP200808-201212

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-42160iACA3#,GSA3#..JPP200511-201212

77100TANK ASSY, FUEL

main77001-42180iACA3#,GSA3#..JPP200511-200801

sub77001-42181

main77001-42181iACA3#,GSA3#..JPP200802-200909

sub77001-42182

main77001-42182iASA3#,GSA3#..JPP200910-201102

sub77001-42190

main77001-42190iASA3#,GSA3#..JPP201102-201212

77101PLUG(FOR FUEL SUB-TANK)

main90105-08158iACA3#,GSA3#..JPP200511-201212

77131CSUB-TANK, FUEL, NO.1

main77131-52081iACA3#,GSA3#..JPP200511-200606

sub77131-52082

main77131-52082iACA3#,GSA3#..JPP200607-201212

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iACA3#,GSA3#..JPP200511-201212

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52050iACA3#,GSA3#..JPP200511-200808

main77174-52070iASA3#,GSA3#..JPP200808-201212

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-42160iACA3#,GSA3#..JPP200511-201212

77202TUBE SUB-ASSY, BREATHER

main77015-42020iASA3#,GSA3#..JPP200511-201212

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-52010iACA3#,GSA3#..JPP200511-201212

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42130iACA3#,GSA3#..JPP200511-201106

sub77209-42131

main77209-42131iASA3#,GSA3#..JPP201107-201212

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-42090iASA3#,GSA3#..JPP200511-201212

77241WCLIP, TUBE JOINT

main77241-33011iASA3#,GSA3#..JPP201003-201212

main77241-60320iACA3#,GSA3#..JPP200511-201002

77249HOSE, FUEL EMISSION

main77249-42040iACA3#,GSA3#..JPP200511-201212

77276PROTECTOR, FUEL HOSE

main77276-42010iASA3#,GSA3#..JPP200808-200912

sub77276-42011

main77276-42011iASA3#,GSA3#..JPP201001-201212

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-42070iACA3#,GSA3#..JPP200511-201212

main77277-42090iASA3#,GSA3#..JPP201107-201204

77286FCLAMP, FUEL TUBE, NO.2

main77286-42080iACA3#,GSA3#..JPP200511-201212

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52110iACA3#,GSA3#..JPP200511-201212

77289BCLAMP, FUEL TUBE, NO.3

main77289-42020iACA3#,GSA3#..JPP200511-201212

NO.1

main77298-42020iGSA3#..JPP200601-201212

NO.2

main77298-68010iACA3#..JPP200511-201212

NO.2

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-42020iACA3#,GSA3#..JPP200511-200904

77295DGROMMET, FUEL TUBE

main77295-42110iACA3#,GSA3#..JPP200511-201212

77299ACLAMP, FUEL TUBE, NO.5

main77299-42010iGSA3#..JPP200511-200808

main77299-42010iGSA3#..JPP200601-201212

NO.1

main77299-48020iASA3#,GSA3#..JPP200511-201212

NO.2

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-32020iACA3#,GSA3#..JPP200511-201212

77310ACAP ASSY, FUEL TANK

main77300-52040iACA3#,GSA3#..JPP200511-201212

77316GASKET, FUEL TANK CAP

main77316-52020iACA3#,GSA3#..JPP200511-200602

sub77316-52040

main77316-52040iASA3#,GSA3#..JPP200808-201212

77350LID ASSY, FUEL FILLER OPENING

main77350-42070iACA3#,GSA3#..JPP200511-201212

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iACA3#,GSA3#..JPP200511-201212

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACA3#,GSA3#..JPP200511-201212

77391RING, FUEL INLET BOX

main77391-12030iACA3#,GSA3#..JPP200511-200607

sub77391-42010

main77391-42010iACA3#,GSA3#..JPP200608-201212

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42060iACA3#,GSA3#..JPP200511-201212

sub77601-42090

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-42010iACA3#,GSA3#..JPP200511-201212

sub77603-42030

77612BBAND, FUEL TANK, NO.2

main77602-42010iACA3#,GSA3#..JPP200511-201212

sub77602-42030

77641APROTECTOR, FUEL TANK, NO.1

main77641-42050iASA3#,GSA3#..JPP200812-201212

77642APROTECTOR, FUEL TANK, NO.2

main77642-42060iACA3#,GSA3#..JPP200511-200812

77652ACUSHION, FUEL TANK, NO.2

main77652-42020iACA3#,GSA3#..JPP200511-201212

77653ACUSHION, FUEL TANK, NO.3

main77652-42030iACA3#,GSA3#..JPP200511-201212

77681SEAT, FUEL TANK BAND, RH

main77681-42010iACA3#,GSA3#..JPP200511-201212

77681ASEAT, FUEL TANK BAND

main77681-21010iACA3#,GSA3#..JPP200511-201212

77682SEAT, FUEL TANK BAND, LH

main77681-42010iACA3#,GSA3#..JPP200511-201212

77706FILTER SUB-ASSY, CHARCOAL CANISTER

main77706-42010iACA3#,GSA3#..JPP200511-200812

main77706-42011iASA3#,GSA3#..JPP200812-201212

77740CANISTER ASSY, CHARCOAL

main77740-42090iACA3#,GSA3#..JPP200511-201212

77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER

main90910-14002iACA3#,GSA3#..JPP200511-201212

sub90910-14006

77753BRACKET, CHARCOAL CANISTER, NO.3

main77753-42020iACA3#,GSA3#..JPP200511-201212

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-42060iACA3#,GSA3#..JPP200511-201212

77785HARNESS, FUEL PUMP

main77785-42010iACA3#,GSA3#..JPP200511-201201

main77785-42040iASA3#,GSA3#..JPP201201-201212

8202

8401

7724821010TUBE, PROTECTOR (FOR STORAGE TO AIR FILTER TUBE)

main77248-21010

9011906615

main90119-06615

9015950343

main90159-50343

9026906017

main90269-06017

9030108020

main90301-08020

9030111025

main90301-11025

9046042005

main90460-42005

9046046003

main90460-46003

9046707201

main90467-07201

9046721010

main90467-21010

9099992002

main90999-92002

91511B0610

main91511-B0610

91621J0612

main91621-J0612

91651B0820

main91651-B0820

91673A1025

main91673-A1025

9613251300

main96132-51300

68 parts on this diagram · 3 diagrams in section
