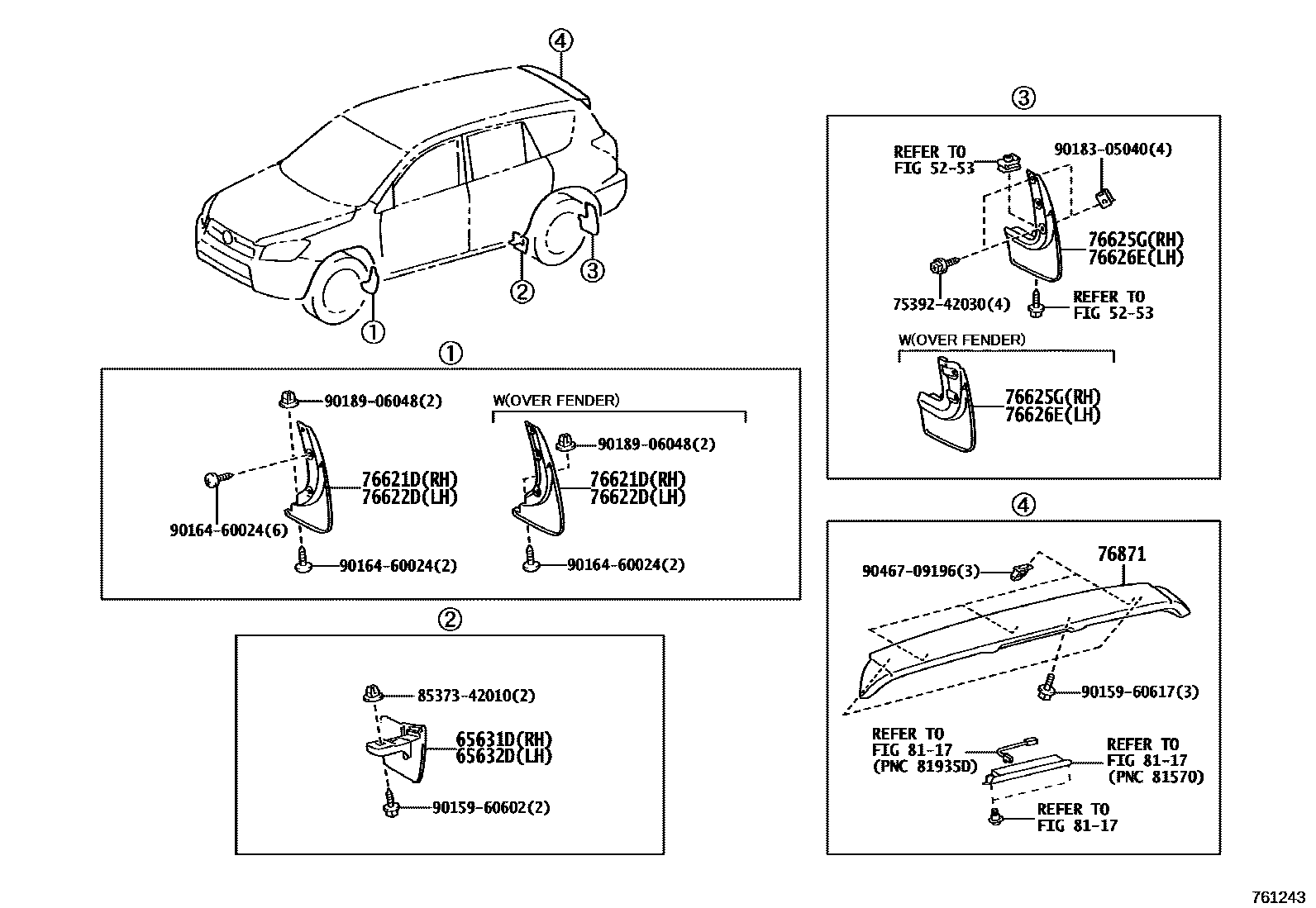

SPOILER & SIDE MUDGUARD

0001 1SPOILER & MUD GUARD 0002 1OVER FENDER

5253

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-42010iACA3#,GSA3#..JPP200511-201212

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-42010iACA3#,GSA3#..JPP200511-201212

76621DMUDGUARD, FRONT FENDER, RH

76622DMUDGUARD, FRONT FENDER, LH

76625GMUDGUARD, QUARTER PANEL, REAR RH

76626EMUDGUARD, QUARTER PANEL, REAR LH

76871SPOILER, REAR

main76085-42901-A0iACA3#,GSA3#..JPP..(SPO,X)200701-201212

SUPER WHITE 2,040

sub76085-42905

main76085-42901-A1iACA3#,GSA3#..JPP..LIMD200701-201212

WHITE PEARL CS.,070

sub76085-42905

main76085-42901-B0iACA3#,GSA3#..JPP..SPO200701-200808

DK.GRAY MC.,1E0

sub76085-42905

main76085-42901-B1iACA3#,GSA3#..JPP200701-201212

SILVER ME.,1F7

sub76085-42905

main76085-42901-B2iASA3#,GSA3#..JPP..X..USA200808-201212

GRAY ME.,1G3

sub76085-42905

main76085-42901-B3iASA3#,GSA3#..JPP..(LIMD,X)..USA201002-201212

DK. STEEL MC.,1H2

sub76085-42905

main76085-42901-C0iASA3#,GSA3#..JPP..(LIMD,X)200701-201212

BLACK,202

sub76085-42905

main76085-42901-D0iASA3#,GSA3#..JPP..(LIMD,X)200701-201212

RED M.M.,3R3

sub76085-42905

main76085-42901-E0iACA3#,GSA3#..JPP..(LIMD,X)200701-200808

BEIGE ME.,4R4

sub76085-42905

main76085-42901-E1iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

BRONZE M.M.,4T3

sub76085-42905

main76085-42901-E2iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

BEIGE ME.,4T8

sub76085-42905

main76085-42901-G0iASA3#,GSA3#..JPP..(LIMD,X)..USA200701-201008

DK.GREEN MC.,6T3

sub76085-42905

main76085-42901-G1iACA3#,GSA3#..JPP..(LIMD,X)200701-200808

LT.GREEN ME.,6T6

sub76085-42905

main76085-42901-J0iACA3#,GSA3#..JPP..(LIMD,X)200701-201212

GRAYISH BLUE ME.,8R3

sub76085-42905

main76085-42901-J0iACA3#,GSA3#..JPP..(LIMD,X)200701-200808

GRAYISH BLUE ME.,8R3 ,8S6

sub76085-42905

main76085-42901-J1iACA3#,GSA3#..JPP..(LIMD,X)200701-200808

DK.BLUE MC.,8S6

sub76085-42905

main76085-42902-A0iASA3#,GSA3#..JPP..SPO200808-201212

SUPER WHITE 2,040

sub76085-42906

sub76085-42904

main76085-42902-B1iASA3#,GSA3#..JPP..SPO200808-201212

SILVER ME.,1F7

sub76085-42906

sub76085-42904

main76085-42902-B2iASA3#,GSA3#..JPP..SPO200808-201212

GRAY ME.,1G3

sub76085-42906

sub76085-42904

main76085-42902-B3iASA3#,GSA3#..JPP..SPO201008-201212

DK.STEEL MC.,1H2

sub76085-42906

sub76085-42904

main76085-42902-C0iASA3#,GSA3#..JPP..SPO200808-201212

BLACK,202

sub76085-42906

sub76085-42904

main76085-42902-D0iASA3#,GSA3#..JPP..SPO200808-201212

RED M.M.,3R3

sub76085-42906

sub76085-42904

main76085-42902-G0iASA3#,GSA3#..JPP..SPO200808-201008

DK.GREEN MC.,6T3

sub76085-42906

sub76085-42904

main76085-42902-J0iASA3#,GSA3#..JPP..SPO200808-201212

GRAYISH BLUE ME.,8R3

sub76085-42906

sub76085-42904

main76085-42902-K0iGSA33..JPP..SPO..USA200808-201002

DK.VIOLET M.M.,9AF

sub76085-42906

sub76085-42904

main76871-42060-A0iACA3#,GSA3#..JPP..(SPO,X)200511-200701

SUPER WHITE 2,040

sub76085-42901

main76871-42060-A1iACA3#,GSA3#..JPP..LIMD200511-200701

WHITE PEARL CS.,070

sub76085-42901

main76871-42060-B0iACA3#,GSA3#..JPP..SPO200511-200701

DK.GRAY MC.,1E0

sub76085-42901

main76871-42060-B1iACA3#,GSA3#..JPP200511-200701

SILVER ME.,1F7

sub76085-42901

main76871-42060-C0iACA3#,GSA3#..JPP200511-200701

BLACK,202

sub76085-42901

main76871-42060-D0iACA3#,GSA3#..JPP200511-200701

RED M.M.,3R3

sub76085-42901

main76871-42060-E0iACA3#,GSA3#..JPP..(LIMD,X)200511-200701

BEIGE ME.,4R4

sub76085-42901

main76871-42060-G0iACA3#,GSA3#..JPP..SPO200511-200701

DK.GREEN MC.,6T3

sub76085-42901

main76871-42060-G1iACA3#,GSA3#..JPP..(LIMD,X)200511-200701

LT.GREEN ME.,6T6

sub76085-42901

main76871-42060-J0iACA3#,GSA3#..JPP200511-200701

GRAYISH BLUE ME.,8R3

sub76085-42901

main76871-42060-J1iACA3#,GSA3#..JPP..(LIMD,X)200511-200701

DK.BLUE MC.,8S6

sub76085-42901

8117

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

8537342010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-42010

9015960602

main90159-60602

9015960617

main90159-60617

9016460024

main90164-60024

9018305040

main90183-05040

9018906048

main90189-06048

9046709196

main90467-09196

17 parts on this diagram · 2 diagrams in section
