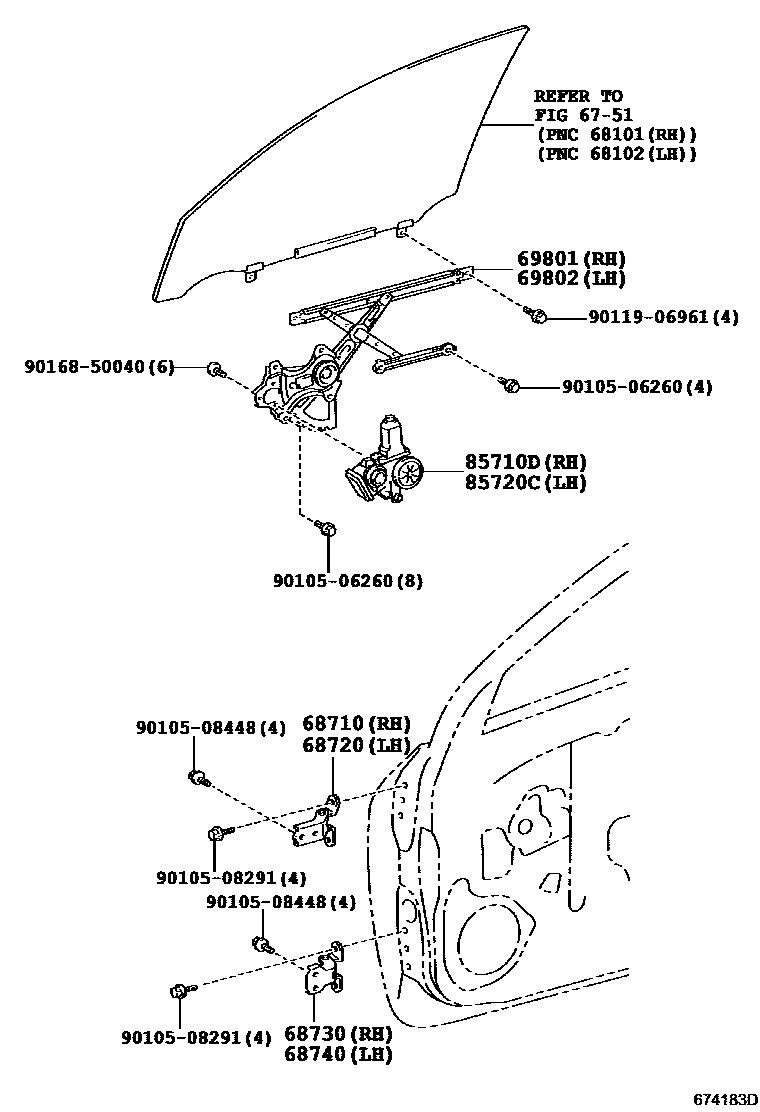

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iACA3#,GSA3#..JPP200511-200609

sub68710-12151

main68710-12151iACA3#,GSA3#..JPP200610-201212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iACA3#,GSA3#..JPP200511-200609

sub68720-12151

main68720-12151iACA3#,GSA3#..JPP200610-201212

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iACA3#,GSA3#..JPP200511-200609

sub68730-33021

main68730-33021iACA3#,GSA3#..JPP200610-201212

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iACA3#,GSA3#..JPP200511-200609

sub68740-33021

main68740-33021iACA3#,GSA3#..JPP200610-201212

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52080iACA3#,GSA3#..JPP200511-201212

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52080iACA3#,GSA3#..JPP200511-201212

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iACA3#,GSA3#..JPP200511-201212

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-42090iACA3#,GSA3#..JPP200511-201212

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
