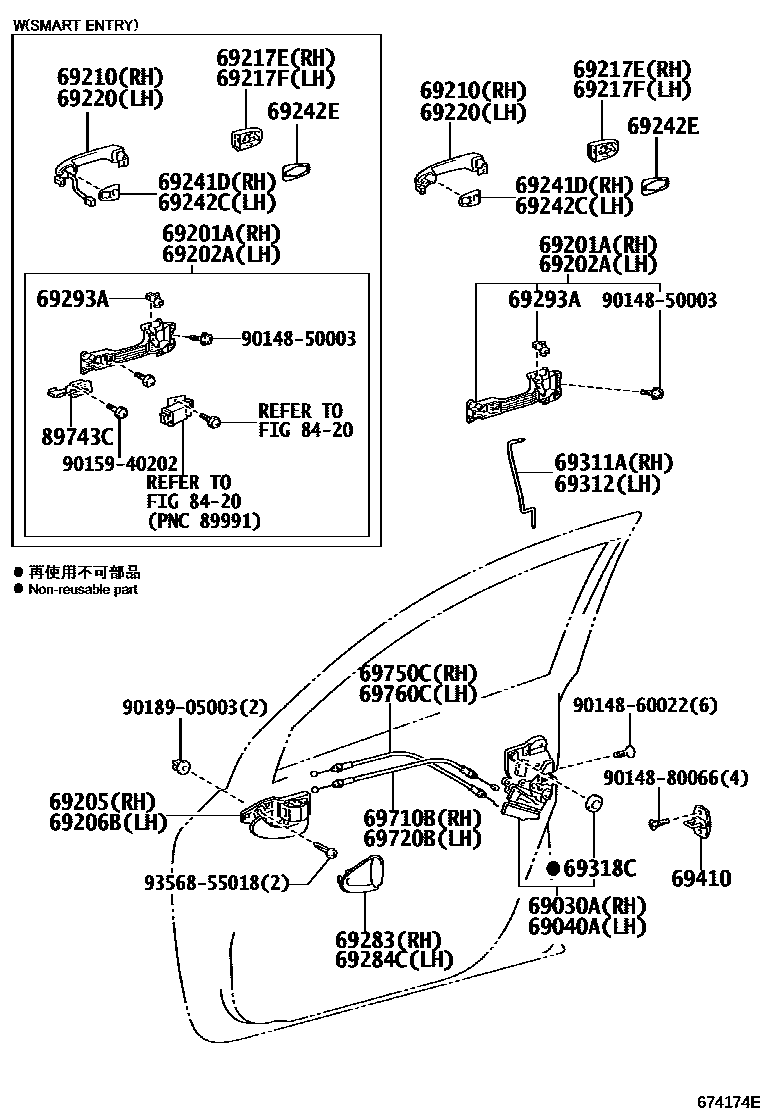

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK MATERIAL
main69217-12040-G8iASA33,GSA33..JPP..SPO;ASA33,GSA33..JPP..LIMD..USA;ASA38,GSA38..JPP..(LIMD,SPO)200511-201008
DK.GREEN MC.,6T3
sub69217-12040
main69217-12040-P5iASA33,GSA33..JPP..SPO;ASA33,GSA33..JPP..LIMD..USA;ASA38,GSA38..JPP..(LIMD,SPO)201002-201212
DK. STEEL MC.,1H2
sub69217-12040
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK MATERIAL
main69217-42020-P9iASA33,GSA33..JPP..SPO;ASA33,GSA33..JPP..LIMD..USA;ASA38,GSA38..JPP..(LIMD,SPO)201002-201212
DK. STEEL MC.,1H2
sub69217-42020
sub69217-42010
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9018905003
main90189-05003
9356855018
main93568-55018
32 parts on this diagram · 1 diagram in section
