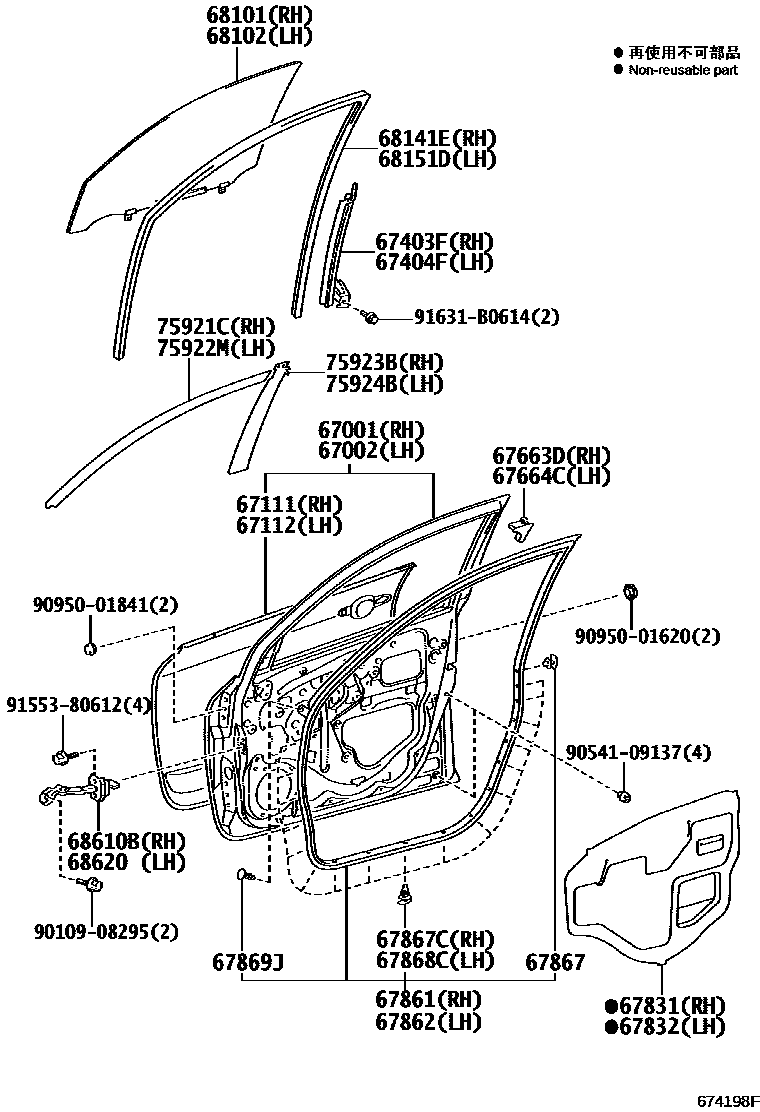

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-42110iACA3#,GSA3#..JPP..USA200511-200808

main67001-42120iASA33,GSA33..JPP..CND200808-201212

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-42110iASA3#,GSA3#..JPP..USA200808-201212

main67002-42120iACA33,GSA33..JPP..CND200511-200808

67111PANEL, FRONT DOOR, OUTER RH

main67111-42050iACA3#,GSA3#..JPP200511-200808

67112PANEL, FRONT DOOR, OUTER LH

main67112-42050iASA3#,GSA3#..JPP200808-201212

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-42030iACA3#,GSA3#..JPP200511-200808

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-42030iACA3#,GSA3#..JPP200511-200808

67663DGARNISH, DOOR FRAME, RH

main67663-42020iASA3#,GSA3#..JPP200808-201212

67664CGARNISH, DOOR FRAME, LH

main67664-42020iACA3#,GSA3#..JPP200511-200808

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-42070iACA3#,GSA3#..JPP200511-200808

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-42020iACA3#,GSA3#..JPP200511-200808

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-42060iASA3#,GSA3#..JPP200808-200908

main67861-42070iASA3#,GSA3#..JPP201108-201212

sub67861-42100

main67861-42080iASA3#,GSA3#..JPP200909-201108

sub67861-42110

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-42060iACA3#,GSA3#..JPP200511-200808

main67862-42070iASA3#,GSA3#..JPP201108-201212

sub67862-42100

main67862-42080iASA3#,GSA3#..JPP200909-201108

sub67862-42110

67867CLIP, DOOR WEATHERSTRIP

main67867-32060×2iACA3#,GSA3#..JPP200511-200808

main90467-04034×2iASA3#,GSA3#..JPP200909-201212

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×16iASA3#,GSA3#..JPP200808-200908

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×16iACA3#..JPP200601-200808

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×2iACA3#,GSA3#..JPP200511-200808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-42160iACA3#,GSA3#..JPP200511-200808

*UVCT,T=4.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-42160iACA3#,GSA3#..JPP200511-200808

*UVCT,T=4.0,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-42090iASA3#,GSA3#..JPP200808-201212

sub68141-42110

68151DRUN, FRONT DOOR GLASS, LH

main68151-42090iACA3#,GSA3#..JPP200511-200808

sub68151-42110

68610BCHECK ASSY, FRONT DOOR, RH

main68610-42020iACA3#,GSA3#..JPP200511-200808

68620CHECK ASSY, FRONT DOOR, LH

main68620-42020iACA3#,GSA3#..JPP200511-200808

75921CTAPE, BLACK OUT, NO.1 RH

main75921-42030iACA3#,GSA3#..JPP200511-200808

75922MTAPE, BLACK OUT, NO.1 LH

main75922-42030iACA3#,GSA3#..JPP200511-200808

75923BTAPE, BLACK OUT, NO.2 RH

main75923-42010iACA3#,GSA3#..JPP200511-200808

sub75923-42030

75924BTAPE, BLACK OUT, NO.2 LH

main75924-42010iACA3#,GSA3#..JPP200511-200808

sub75924-42030

9010908295

main90109-08295

9054109137

main90541-09137

9095001620

main90950-01620

9095001841

main90950-01841

9155380612

main91553-80612

91631B0614

main91631-B0614

32 parts on this diagram · 2 diagrams in section
