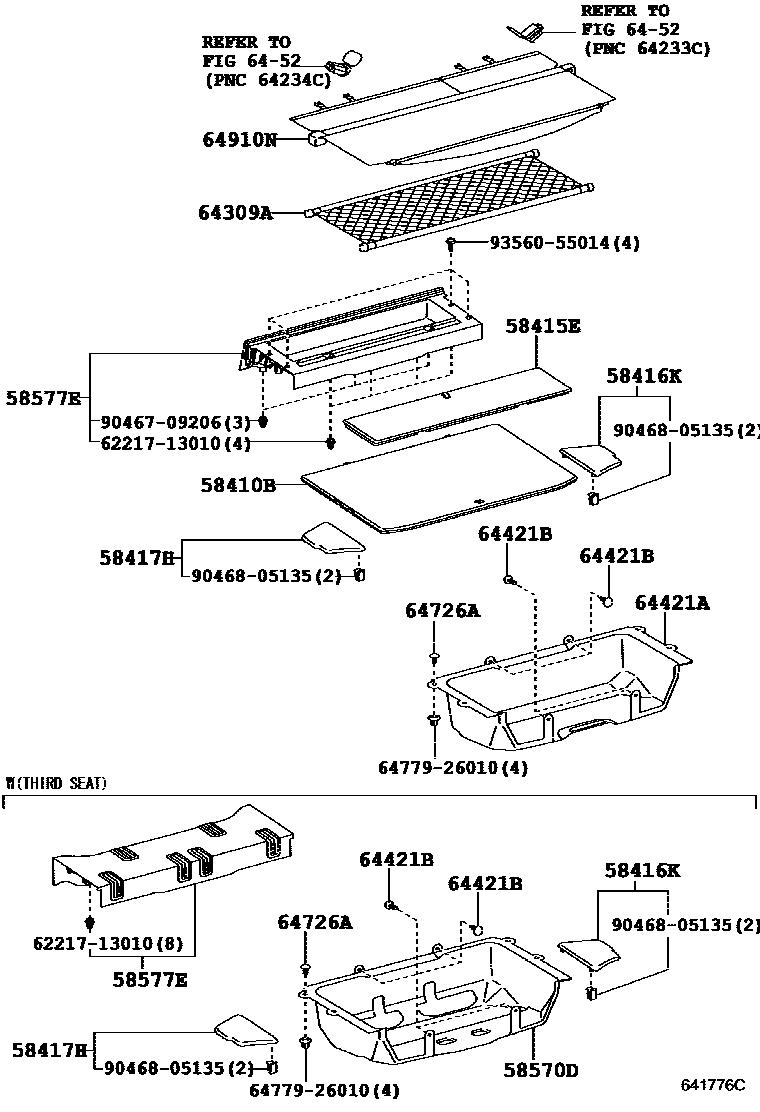

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
GRAY,TRIM10
sub58410-42020
58415EBOARD, REAR FLOOR, NO.1
GRAY,TRIM1#
sub58415-42010
58416KBOARD, REAR FLOOR, NO.2
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
58417HBOARD, REAR FLOOR, NO.3
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
58570DCARPET ASSY, REAR FLOOR
58577EPLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
DK.GRAY,TRIM1#
DK.GRAY,TRIM13
GRAY,TRIM1#
GRAY,TRIM10
FAWN,TRIM4#
SAND BEIGE,TRIM4#
64309APOCKET SUB-ASSY, PACKAGE TRAY TRIM
WITH(TONEAU COVER),DARK GRAY,TRIM1#,4#
sub64309-42011
WITH(TONEAU COVER),DARK GRAY,TRIM1#
sub64309-42011
WITHOUT(TONEAU COVER),DARK GRAY,TRIM1#,4#
sub64309-42011
THIRD SEAT-WITH(2PERSONS),DARK GRAY,TRIM1#,4#
sub64309-42011
PACKAGE TRAY TRIM & TONEAU COVER-TONEAU COVER & NET TRAY(DOP),DARK GRAY,TRIM1#
sub64309-42011
PACKAGE TRAY TRIM & TONEAU COVER-TONEAU COVER & NET TRAY(DOP),DARK GRAY,TRIM1#,4#
sub64309-42011
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,DARK GRAY,TRIM1#,4#
sub64309-42011
64421ATRAY, LUGGAGE COMPARTMENT
64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)
6452
64726ACLIP, LUGGAGE TRIM, REAR
DK.GRAY,TRIM1#
DK.GRAY
GRAY,TRIM1#
FAWN,TRIM4#
64910NCOVER ASSY, TONNEAU
WITH(TONEAU COVER),DK.GRAY,TRIM1#
sub64910-42080
WITHOUT(TONEAU COVER),DK.GRAY,TRIM1#,4#
sub64910-42080
THIRD SEAT-WITH(2PERSONS),DK.GRAY,TRIM1#,4#
sub64910-42080
WITH(TONEAU COVER),DK.GRAY,TRIM1#,4#
sub64910-42080
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,DK.GRAY,TRIM1#,4#
sub64910-42080
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
6477926010TRAY, SPARE WHEEL COVER
main64779-26010
9046709206
main90467-09206
9046805135
main90468-05135
9356055014
main93560-55014
17 parts on this diagram · 1 diagram in section
