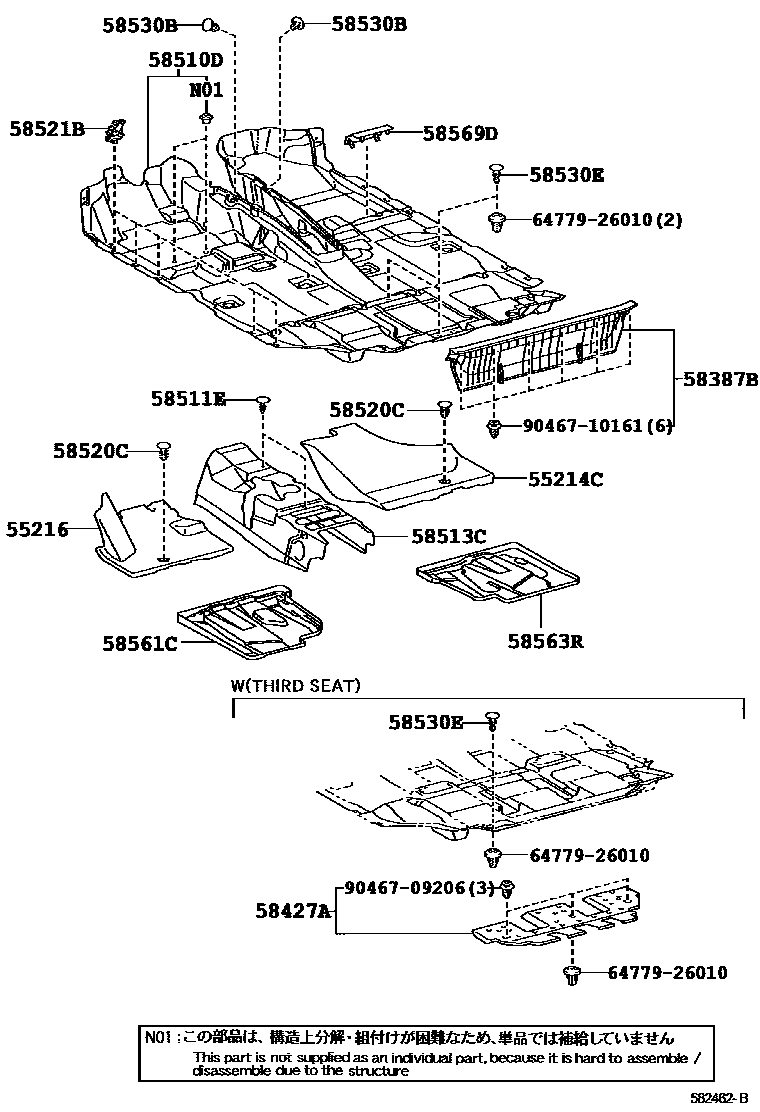

FLOOR MAT & SILENCER PAD

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-42050iACA3#,GSA3#..JPP200511-201212

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-42070iASA3#,GSA3#..JPP200511-201212

58387BPLATE, REAR FLOOR FINISH

main58387-42030-B0iACA3#,GSA3#..JPP..(LIMD,X)200511-201212

DK.GRAY,TRIM1#,4#

main58387-42030-B0iACA3#,GSA3#..JPP..SPO200511-201212

DK.GRAY,TRIM1#

58427ASPACER, REAR FLOOR BOARD

58510DCARPET ASSY, FLOOR, FRONT

main58510-42840-B0iACA3#,GSA3#..JPP..SPO200511-200808

DK.GRAY,TRIM1#

sub58510-42840

main58510-42840-B1iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

GRAY,TRIM1#

sub58510-42840

main58510-42840-B2iASA3#,GSA3#..JPP..X..USA200808-201212

DK.GRAY,TRIM1#

sub58510-42840

main58510-42840-B2iASA3#,GSA3#..JPP..SPO200808-201212

DK.GRAY,TRIM13

sub58510-42840

main58510-42840-B3iASA3#,GSA3#..JPP..X..USA200808-201212

GRAY,TRIM1#

sub58510-42840

main58510-42840-B3iASA3#,GSA3#..JPP..X..USA200808-201212

GRAY,TRIM10

sub58510-42840

main58510-42840-E0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

FAWN,TRIM4#

sub58510-42840

main58510-42840-E2iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

FAWN,TRIM4#

sub58510-42840

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-C0iACA3#,GSA3#..JPP200511-201212

BLACK

sub90467-05164

58513CMAT, FLOOR, FRONT CENTER

main58513-42010iACA3#,GSA3#..JPP200511-201212

sub58513-42011

58520CCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B2iACA3#,GSA3#..JPP200511-201212

GRAY

58521BHOOK, FLOOR CARPET

main58521-42040iACA3#,GSA3#..JPP200511-201212

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09050iACA3#,GSA3#..JPP200511-201212

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main64726-26010-B1iASA3#,GSA3#..JPP..X..USA200511-201212

DK.GRAY,TRIM1#

main64726-26010-B1iASA3#,GSA3#..JPP..X..USA200808-201212

DK.GRAY,TRIM13

main64726-26010-B2iASA3#,GSA3#..JPP..X..USA200511-201212

THIRD SEAT-WITH(2PERSONS),GRAY,TRIM1#

main64726-26010-B2iACA3#,GSA3#..JPP..(LIMD,X)200511-201212

GRAY,TRIM1#

main64726-26010-B2iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

GRAY,TRIM10

main64726-26010-E0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

THIRD SEAT-WITH(2PERSONS),FAWN,TRIM4#

main64726-26010-E0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

FAWN,TRIM4#

main64726-26010-E1iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

THIRD SEAT-WITH(2PERSONS),SAND BEIGE,TRIM4#

main64726-26010-E1iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

SAND BEIGE,TRIM4#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-42040iACA3#,GSA3#..JPP200511-201212

sub58561-42041

58563RSILENCER, FRONT FLOOR, NO.3

main58563-42050iACA3#,GSA3#..JPP200511-201212

sub58563-42051

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-42020-B0iACA3#,GSA3#..JPP..SPO200511-201212

DK.GRAY,TRIM1#

sub58569-42020

main58569-42020-B0iASA3#,GSA3#..JPP..X..USA200808-201212

DK.GRAY,TRIM13

sub58569-42020

main58569-42020-B1iASA3#,GSA3#..JPP..X..USA200808-201212

GRAY,TRIM10

sub58569-42020

main58569-42020-B1iASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND200511-201212

GRAY,TRIM1#

sub58569-42020

main58569-42020-E0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

FAWN,TRIM4#

sub58569-42020

main58569-42020-E1iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

SAND BEIGE,TRIM4#

sub58569-42020

6477926010TRAY, SPARE WHEEL COVER

main64779-26010

9046709206

main90467-09206

9046710161

main90467-10161

17 parts on this diagram · 1 diagram in section
