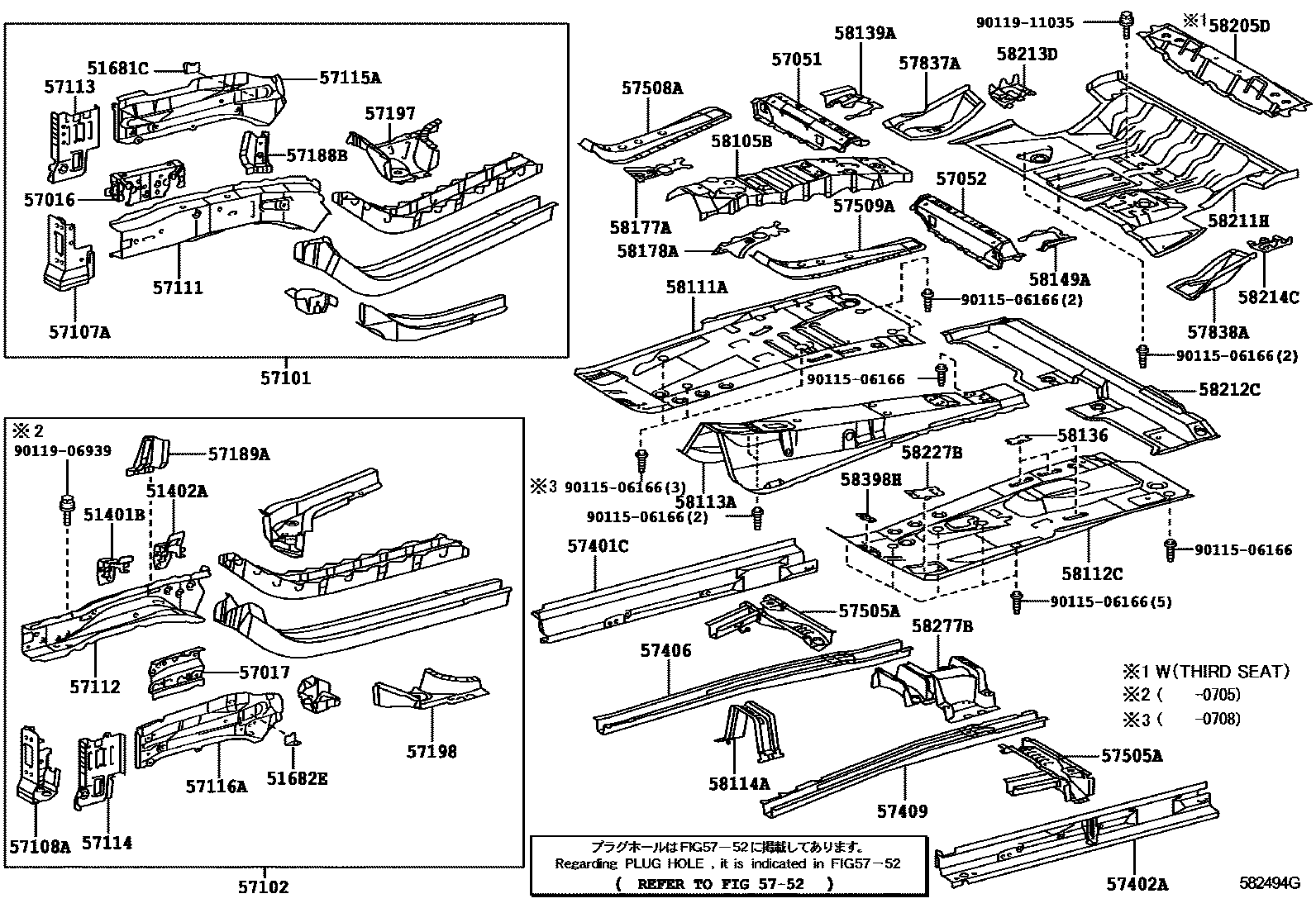

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
sub57108-42031
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
sub57025-12010
57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
sub57406-42011
57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
RH
LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
5752
57837AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
58113APANEL, FRONT FLOOR, CENTER
sub58113-42011
58136COVER, FRONT FLOOR HOLE
58139APLATE, FRONT FLOOR SIDE, REAR RH
58149APLATE, FRONT FLOOR SIDE, REAR LH
58177AEXTENSION, FRONT FLOOR PANEL, RH
58178AEXTENSION, FRONT FLOOR PANEL, LH
58205DREINFORCE SUB-ASSY, REAR SEAT HINGE
THIRD SEAT-WITH(2PERSONS)
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58213DREINFORCEMENT, CENTER FLOOR PANEL
58214CREINFORCEMENT, CENTER FLOOR PANEL, LH
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
sub58209-48010
58398HCOVER, FLOOR UNDER, NO.1
9011506166
main90115-06166
9011906939
main90119-06939
9011911035
main90119-11035
53 parts on this diagram · 1 diagram in section
