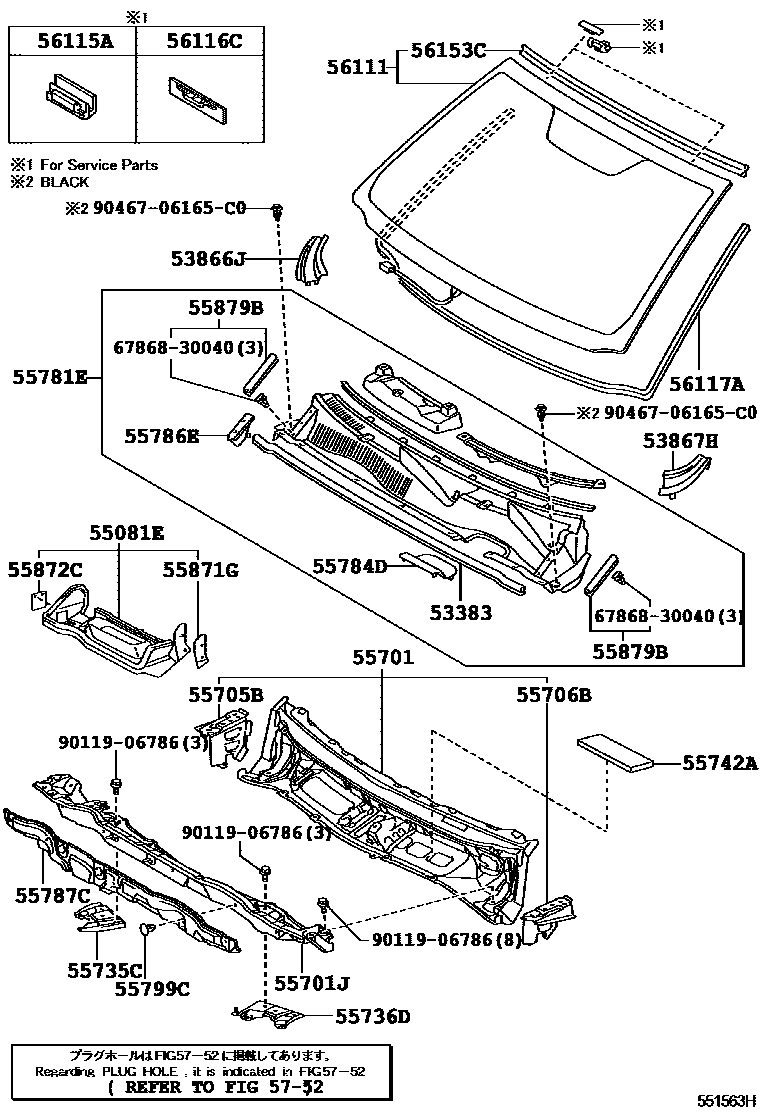

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-42030iASA3#,GSA3#..JPP200511-201212

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-42010iACA3#,GSA3#..JPP200511-200806

sub53866-42012

main53866-42012iACA3#,GSA3#..JPP200806-201212

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-42010iACA3#,GSA3#..JPP200511-200806

sub53867-42012

main53867-42012iACA3#,GSA3#..JPP200806-201212

55081EHOUSING SUB-ASSY, COWL VENTILATOR

main55081-42010iACA3#,GSA3#..JPP200511-201212

55701PANEL SUB-ASSY, COWL

main55700-42460iACA3#,GSA3#..JPP200511-201212

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-42370iACA3#,GSA3#..JPP200511-201212

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-42060iACA3#,GSA3#..JPP200511-201212

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-42040iACA3#,GSA3#..JPP200511-201212

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-42010iACA3#,GSA3#..JPP200511-201212

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-42030iACA3#,GSA3#..JPP200511-201212

55742ASHEET, COWL TOP INSULATOR

main55742-42030iACA3#,GSA3#..JPP200511-201212

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-42150iACA3#,GSA3#..JPP200511-200609

sub55708-42151

main55708-42151iACA3#,GSA3#..JPP200610-201212

55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH

main55783-42030iACA3#,GSA3#..JPP200511-201212

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-42010iASA3#,GSA3#..JPP200511-201212

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-42040iASA3#,GSA3#..JPP200511-201212

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09050iACA3#,GSA3#..JPP200511-201212

55871GSEAL, AIR DUCT, NO.1

main55871-42020iACA3#,GSA3#..JPP200511-201212

55872CSEAL, AIR DUCT, NO.2

main55872-42020iACA3#,GSA3#..JPP200511-201212

55879BSEAL, COWL VENT

main55879-42010iACA3#,GSA3#..JPP200511-200707

sub55879-42011

main55879-42011iACA3#,GSA3#..JPP200708-200712

sub55879-42012

main55879-42012iACA3#,GSA3#..JPP200801-201212

56111GLASS, WINDSHIELD

main56101-42100iACA33,GSA33..JPP..CND200511-200712

*EHL,T=4.76,GREEN

sub56101-42101

main56101-42101iASA33,GSA33..JPP..CND200801-201106

*EHL,T=4.76,GREEN

sub56101-42102

main56101-42102iASA33,GSA33..JPP..CND201107-201212

*EHL,T=4.76,GREEN

sub56101-42330

main56101-42130iACA3#,GSA3#..JPP..USA200511-200712

*LAM,T=4.76,GREEN

sub56101-42131

main56101-42131iACA3#,GSA3#..JPP..USA200801-201106

*LAM,T=4.76,GREEN

sub56101-42132

main56101-42132iASA3#,GSA3#..JPP..USA201107-201111

*LAM,T=4.76,GREEN

sub56101-42133

main56101-42133iASA3#,GSA3#..JPP..USA201112-201202

*LAM,T=4.76,GREEN

sub56101-42340

main56101-42134iASA3#,GSA3#..JPP..USA201202-201212

*LAM,T=4.76,GREEN

sub56101-42135

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iACA3#,GSA3#..JPP200511-201212

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iACA3#,GSA3#..JPP200511-201212

56117ADAM, WINDOW GLASS ADHESIVE

main56117-42050iACA3#,GSA3#..JPP200511-201212

*D,L=2834

sub56117-64010

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-42010iACA3#,GSA3#..JPP200511-201212

5752

6786830040CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30040

9011906786

main90119-06786

9046706165C0

main90467-06165C0

28 parts on this diagram · 1 diagram in section
