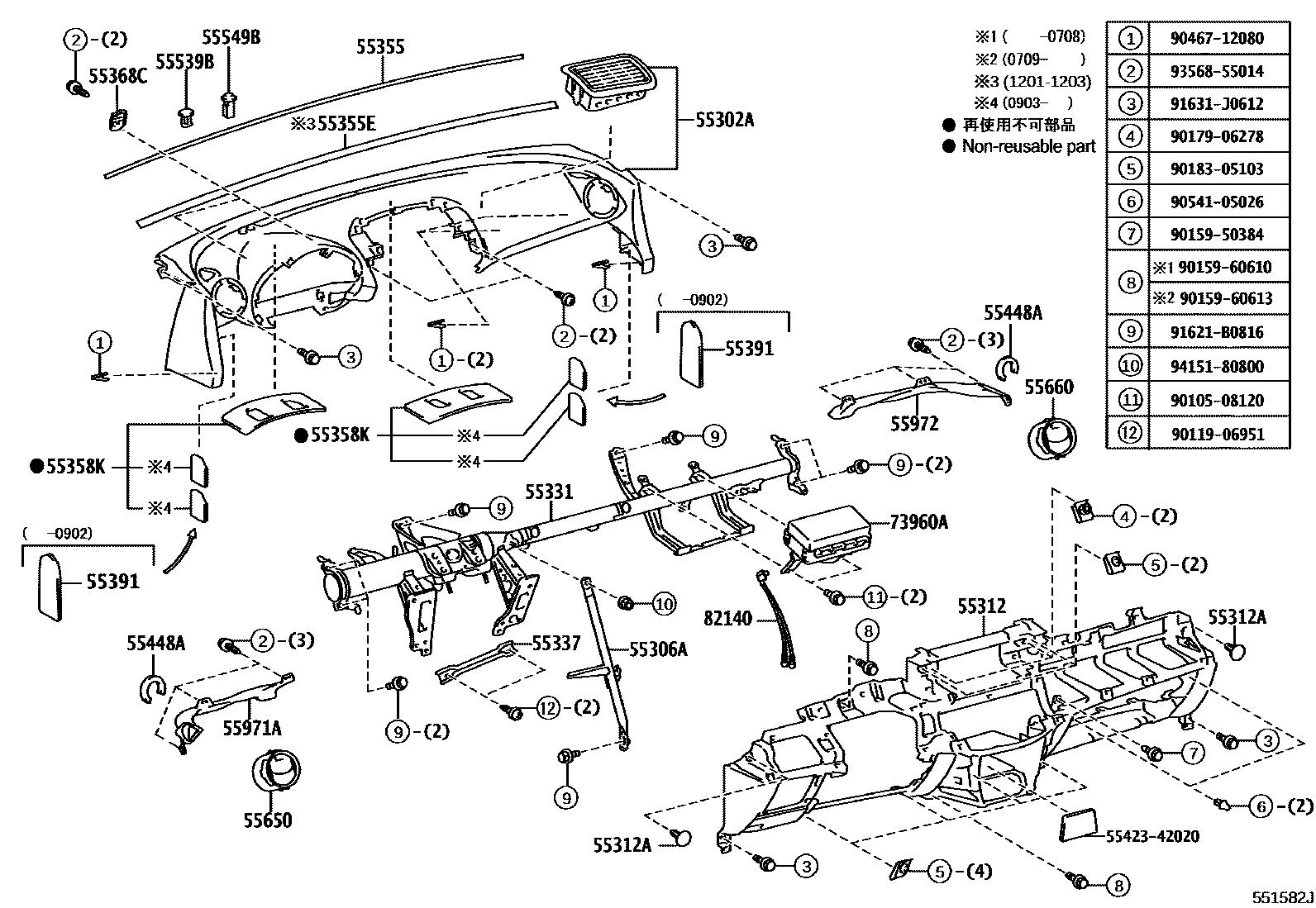

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-42901-B0iASA3#,GSA3#..JPP..(LIMD,X)200511-201212

DK.GRAY,TRIM1#

sub55302-42908

main55302-42901-B0iASA3#,GSA3#..JPP..(LIMD,X)200511-201212

DK.GRAY,TRIM1#,4#

sub55302-42908

main55302-42903-B0iASA3#,GSA3#..JPP..(LIMD,X)201201-201203

DK.GRAY,TRIM1#,4#

sub55302-42901

main55302-42903-B0iASA3#,GSA3#..JPP..SPO201201-201203

DK.GRAY,TRIM1#

sub55302-42901

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42090iASA3#,GSA3#..JPP200511-201212

55312PANEL, INSTRUMENT, LOWER

main55312-42010-B0iASA3#,GSA3#..JPP..X..USA200511-201212

DK.GRAY,TRIM1#

sub55312-42011

main55312-42010-B0iASA3#,GSA3#..JPP..SPO200808-201212

DK.GRAY,TRIM13

sub55312-42011

main55312-42010-B1iASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND200511-201212

GRAY,TRIM1#

sub55312-42011

main55312-42010-B1iASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND200808-201212

GRAY,TRIM10

sub55312-42011

main55312-42010-E0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

FAWN,TRIM4#

sub55312-42011

main55312-42010-E1iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

SAND BEIGE,TRIM4#

sub55312-42011

55312ACLIP, INSTRUMENT PANEL

main90467-05161-B0iASA3#,GSA3#..JPP200808-201212

DK.GRAY

sub90467-05161¥90

main90467-05161-B0iACA3#,GSA3#..JPP..SPO200511-200808

DK.GRAY,TRIM1#

sub90467-05161¥90

main90467-05161-B0iACA3#,GSA3#..JPP..SPO200511-200808

DK.GRAY,TRIM1#,4#

sub90467-05161¥90

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42220iACA3#,GSA3#..JPP200511-200707

sub55330-42221

main55330-42221iASA3#,GSA3#..JPP200708-201212

55337REINFORCEMENT, INSTRUMENT PANEL SUB

main55337-42010iACA3#,GSA3#..JPP200511-201212

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-42020iACA3#,GSA3#..JPP¥900200511-201212

55355ECUSHION, INSTRUMENT PANEL

main55355-42040iASA3#,GSA3#..JPP201201-201203

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-42050iACA3#,GSA3#..JPP¥610200511-200902

sub55358-42051¥600

main55358-42051iASA3#,GSA3#..JPP¥600200903-201212

main55358-42052iASA3#,GSA3#..JPP201201-201203

sub55358-42051¥600

55368CBRACKET, METER MOUNTING

main55368-42010iACA3#,GSA3#..JPP¥300200511-201212

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-42020iACA3#,GSA3#..JPP¥300200511-200903

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-42020iACA3#,GSA3#..JPP¥150200511-201212

55539COVER, SPARE SWITCH HOLE

main55539-52060-B0iACA3#,GSA3#..JPP..SPO200511-201212

DK.GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-B0iACA3#,GSA3#..JPP..SPO200511-201212

DK.GRAY,TRIM1#,4#

sub55539-52060¥300

main55539-52060-B0iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

DK.GRAY,TRIM13

sub55539-52060¥300

main55539-52060-B1iASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND200808-201212

GRAY,TRIM10

sub55539-52060¥300

main55539-52060-B1iASA3#,GSA3#..JPP..LIMD..USA;ASA33,GSA33..JPP..(LIMD,X)..CND200511-201212

GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-E1iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

FAWN,TRIM4#

sub55539-52060¥300

main55539-52060-E3iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

SAND BEIGE,TRIM4#

sub55539-52060¥300

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-42040-B0iACA3#,GSA3#..JPP..X200511-201212

DK.GRAY,TRIM1#,4#

main55539-42040-B0iACA3#,GSA3#..JPP..X200511-201212

DK.GRAY,TRIM1#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-42020iASA3#,GSA3#..JPP..SPO¥220200808-201212

LIGHT CONTROL SYSTEM-WITH

main55549-42020iACA3#,GSA3#..JPP¥220200511-200808

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-42040-B0iACA3#,GSA3#..JPP..SPO200511-200708

DK.GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42040-B0iACA3#,GSA3#..JPP..SPO200511-200708

DK.GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42040-B1iACA3#,GSA3#..JPP..SPO200708-200808

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42040-B1iACA3#,GSA3#..JPP..SPO200708-200808

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42050-B0iASA3#,GSA3#..JPP..SPO200808-201003

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42050-B0iASA3#,GSA3#..JPP..SPO200808-201003

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42051-B0iASA3#,GSA3#..JPP..(LIMD,X)201003-201212

GRAY,TRIM1#,4#

main55650-42051-B0iASA3#,GSA3#..JPP..SPO201003-201212

GRAY,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-42040-B0iACA3#,GSA3#..JPP..SPO200511-200708

DK.GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42040-B0iACA3#,GSA3#..JPP..(LIMD,X)200511-200708

DK.GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42040-B1iACA3#,GSA3#..JPP..SPO200708-200808

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42040-B1iACA3#,GSA3#..JPP..SPO200708-200808

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42050-B0iASA3#,GSA3#..JPP..SPO200808-201003

GRAY,TRIM1#

sub55650-42051¥4,050

main55650-42050-B0iASA3#,GSA3#..JPP..SPO200808-201003

GRAY,TRIM1#,4#

sub55650-42051¥4,050

main55650-42051-B0iASA3#,GSA3#..JPP..SPO201003-201212

GRAY,TRIM1#,4#

main55650-42051-B0iASA3#,GSA3#..JPP..SPO201003-201212

GRAY,TRIM1#

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-42030iACA3#,GSA3#..JPP200511-201212

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-42030iASA3#,GSA3#..JPP200511-201212

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-42020iACA3#,GSA3#..JPP200511-201111

sub73960-42021

main73960-42021iASA3#,GSA3#..JPP201112-201212

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47010iACA3#,GSA3#..JPP¥950200511-201212

5542342020PANEL, STEREO PLAYER FINISH

main55423-42020¥300

9010508120

main90105-08120¥90

9011906951

main90119-06951¥80

9015950384

main90159-50384¥60

9015960610

main90159-60610¥70

9015960613

main90159-60613¥60

9017906278

main90179-06278¥100

9018305103

main90183-05103¥90

9046712080

main90467-12080¥60

9054105026

main90541-05026¥100

91621B0816

main91621-B0816¥90

91631J0612

main91631-J0612¥110

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

35 parts on this diagram · 4 diagrams in section
