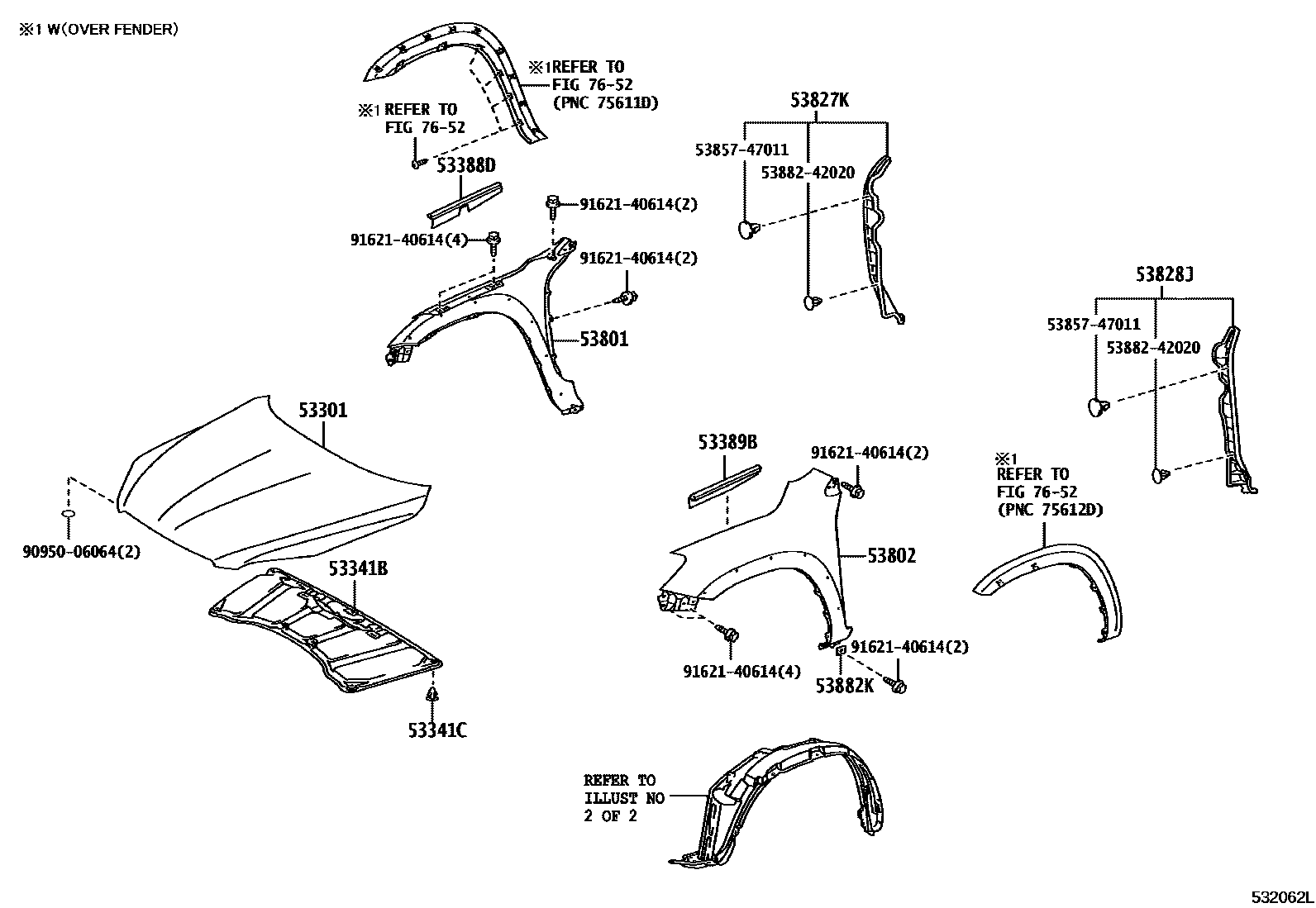

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-42070iACA33,GSA33..JPP..CND200511-201212

main53301-42080iACA3#,GSA3#..JPP..USA200511-201212

53341BINSULATOR, HOOD

main53341-42070iACA3#,GSA3#..JPP200511-201212

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iASA3#,GSA3#..JPP200511-201212

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42010iACA3#,GSA3#..JPP200511-201212

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42030iACA3#,GSA3#..JPP200511-201212

53801FENDER SUB-ASSY, FRONT RH

main53801-42130iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

main53801-42140iACA3#,GSA3#..JPP..SPO200511-200808

OVER FENDER-WITH

main53801-42150iASA3#,GSA3#..JPP..X..USA200808-201212

main53801-42160iASA3#,GSA3#..JPP..(LIMD,SPO)..USA200808-201212

main53811-42290iASA33,GSA33..JPP..X..CND200808-201212

main53811-42300iASA33,GSA33..JPP..(LIMD,SPO)..CND200808-201212

53802FENDER SUB-ASSY, FRONT LH

main53802-42180iASA3#,GSA3#..JPP..X..USA200511-201212

main53802-42190iASA3#,GSA3#..JPP..(LIMD,SPO)..USA200808-201212

main53802-42190iACA3#,GSA3#..JPP..SPO200511-200808

OVER FENDER-WITH

main53812-42280iASA33,GSA33..JPP..X..CND200808-201212

main53812-42290iASA33,GSA33..JPP..(LIMD,SPO)..CND200808-201212

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42040iACA3#,GSA3#..JPP200511-200801

sub53827-42041

main53827-42041iACA3#,GSA3#..JPP200802-201204

sub53827-42042

main53827-42042iASA3#,GSA3#..JPP201205-201212

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42060iACA3#,GSA3#..JPP200511-200801

sub53828-42061

main53828-42061iACA3#,GSA3#..JPP200802-201204

sub53828-42062

main53828-42062iASA3#,GSA3#..JPP201205-201212

53882KSEAL, FRONT FENDER

main53882-16030iACA3#,GSA3#..JPP200511-201212

7652

5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011

5388242020PACKING, FRONT FENDER MAIN

main53882-42020

9095006064

main90950-06064

9162140614

main91621-40614

15 parts on this diagram · 2 diagrams in section
