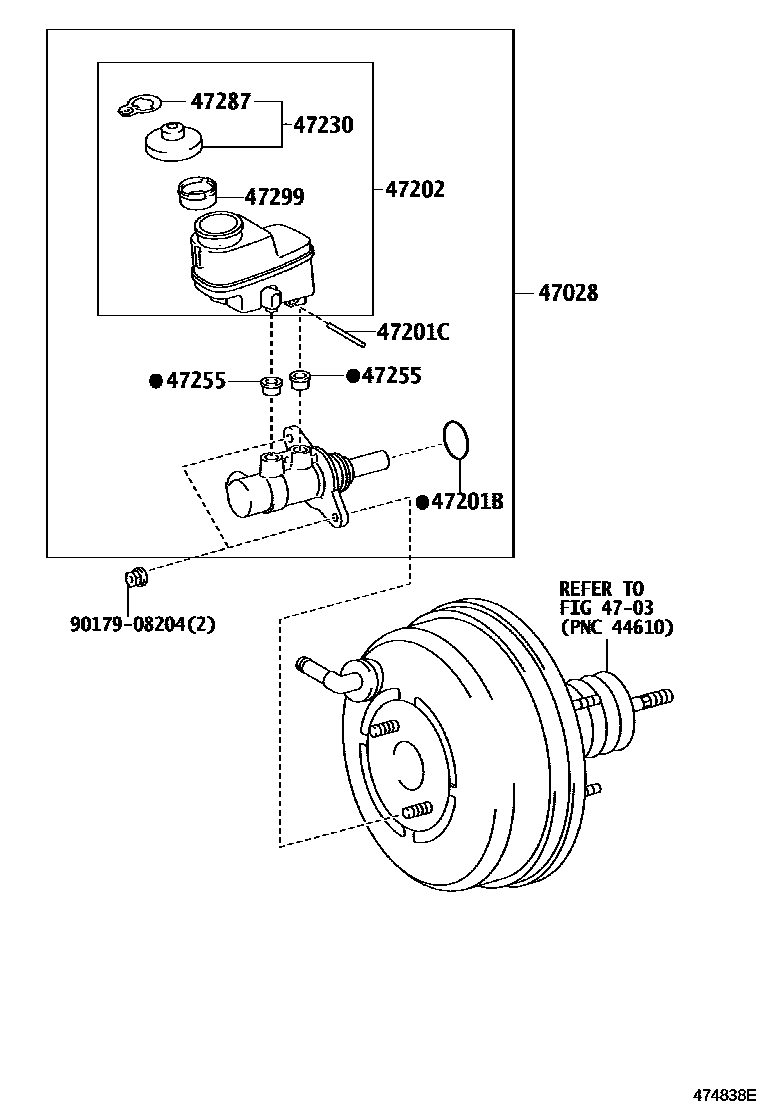

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47201-42340iACA3#..JPP200511-201212

sub47028-42030

main47201-42380iGSA3#..JPP200511-201202

THIRD SEAT-WITH(2PERSONS)

sub47201-42381

main47201-42380iGSA3#..JPP200601-200808

sub47201-42381

main47201-42381iASA3#..JPP..(LIMD,X)201203-201204

THIRD SEAT-WITH(2PERSONS)

sub47201-42382

main47201-42382iASA3#..JPP..(LIMD,X)201205-201212

THIRD SEAT-WITH(2PERSONS)

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iACA3#,GSA3#..JPP200511-201212

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iACA3#,GSA3#..JPP200511-201212

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-42100iACA3#,GSA3#..JPP200511-201212

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iACA3#,GSA3#..JPP200511-201212

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iACA3#,GSA3#..JPP200511-201212

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iACA3#,GSA3#..JPP200511-201212

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iACA3#,GSA3#..JPP200511-201212

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
