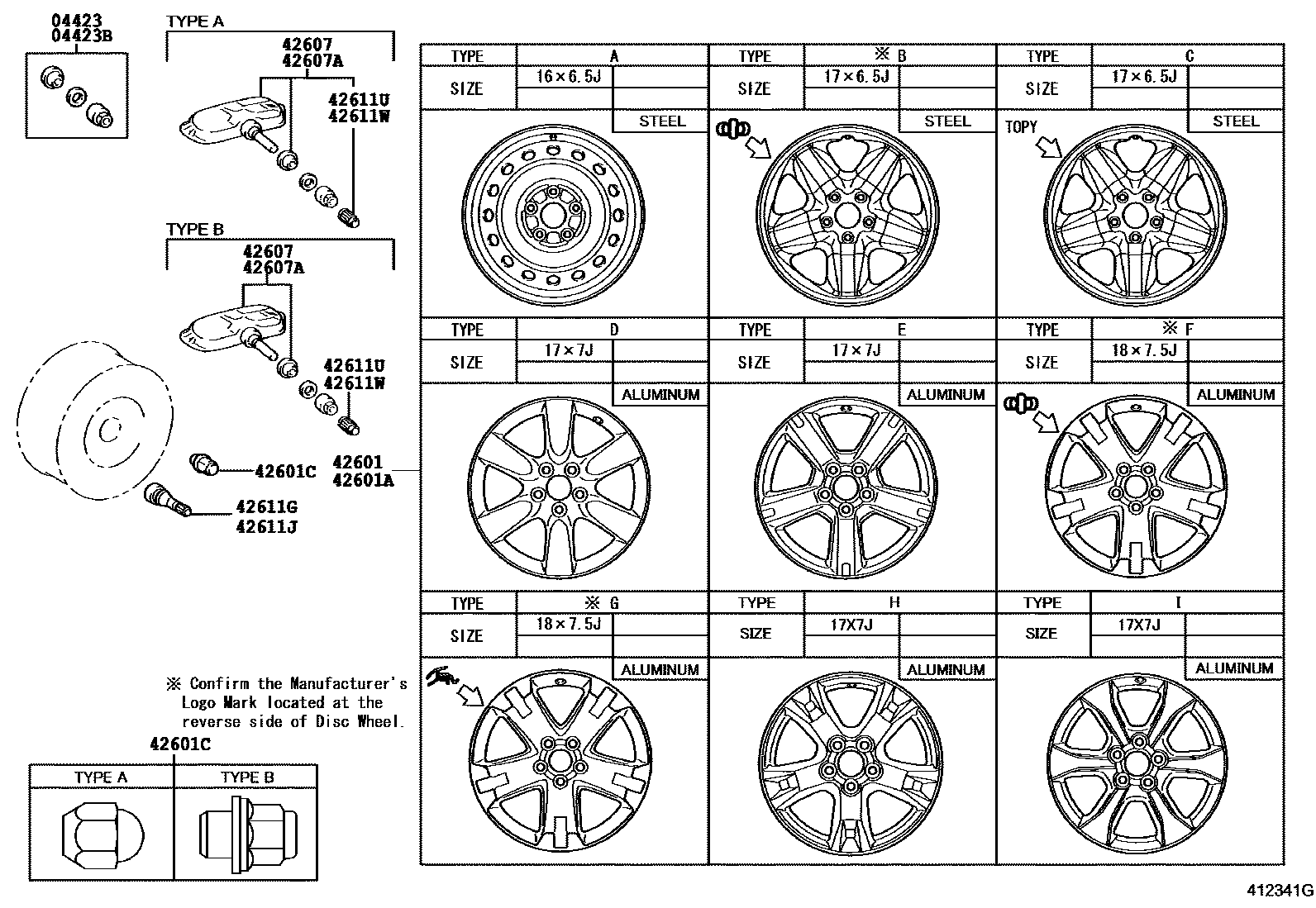

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
sub04423-33060
TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY&SPARE TIRE-WITHOUT
sub04423-33060
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
sub04423-33060
42601WHEEL, DISC
16X6.5J,#,TYPE A:REFER ILLUST.
17X6.5J,#,TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,MEXICO SPEC&225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,MEXICO SPEC&225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE C:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X6.5J,#,225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X6.5J,#,225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE C:REFER ILLUST.
17X6.5J,#,TYPE C:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X6.5J,#,TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X7J,#,MEXICO SPEC,TYPE D:REFER ILLUST.
sub42611-42310
17X7J,#,MEXICO SPEC&225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE E:REFER ILLUST.
sub42611-42270
17X7J,#,225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE E:REFER ILLUST.
sub42611-42270
18X7.5J,#,TYPE F:REFER ILLUST.
17X7J,#,MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP,TYPE H:REFER ILLUST.
sub42611-42350
17X7J,#,TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP,TYPE H:REFER ILLUST.
sub42611-42350
18X7.5J,#,TYPE F:REFER ILLUST.
18X7.5J,#,TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY&SPARE TIRE-WITHOUT,TYPE F:REFER ILLUST.
18X7.5J,#,TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY,TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6.5J,#,TYPE A:REFER ILLUST.
17X6.5J,#,MEXICO SPEC,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,MEXICO SPEC&225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,MEXICO SPEC&225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE B:REFER ILLUST.
sub42611-42191
17X6.5J,#,225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X6.5J,#,TYPE C:REFER ILLUST.
17X6.5J,#,225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE C:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X6.5J,#,MEXICO SPEC,TYPE C:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X6.5J,#,MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP,TYPE C:REFER ILLUST.
17X6.5J,#,TIRE & DISK WHEEL-225/65R17H STEEL 6.5J,TYPE C:REFER ILLUST.
17X6.5J,#,TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE F:REFER ILLUST.
18X7.5J,#,TYPE F:REFER ILLUST.
17X7J,#,KOREA SPEC&SPARE TIRE-GROUND TIRE(SAME SIZE),TYPE I:REFER ILLUST.
sub42611-42371
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE A:REFER ILLUST.
sub42607-33012
TYPE A:REFER ILLUST.
sub42607-33012
225/65R17H STEEL 6.5J,TYPE A:REFER ILLUST.
sub42607-33012
TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY&SPARE TIRE-WITHOUT,TYPE B:REFER ILLUST.
sub42607-33022
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE,TYPE A:REFER ILLUST.
sub42607-33012
225/65R17H STEEL 6.5J,TYPE A:REFER ILLUST.
sub42607-33012
42611GVALVE (FOR TUBELESS TIRE)
MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H STEEL 6.5J
MEXICO SPEC
MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP
KOREA SPEC&SPARE TIRE-GROUND TIRE(SAME SIZE)
MEXICO SPEC&225/65R17H STEEL 6.5J
MEXICO SPEC&225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE
42611JVALVE (FOR TUBELESS TIRE SPARE)
MEXICO SPEC
MEXICO SPEC&225/65R17H STEEL 6.5J
MEXICO SPEC&225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE
KOREA SPEC&SPARE TIRE-GROUND TIRE(SAME SIZE)
MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP
MEXICO SPEC&TIRE & DISK WHEEL-225/65R17H STEEL 6.5J
42611UCAP, TIRE VALVE
TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY&SPARE TIRE-WITHOUT
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 3 diagrams in section
