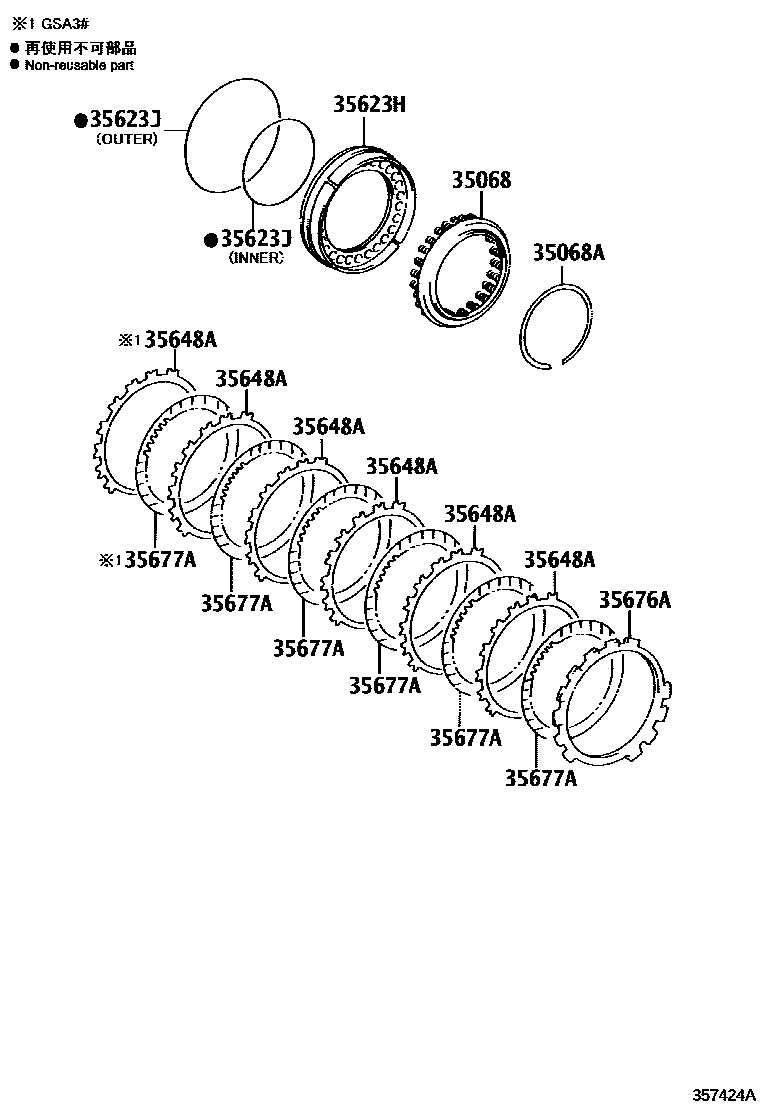

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21011iACA3#..JPP200511-200808

main35068-33021iGSA3#..JPP200601-200808

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iACA3#,GSA3#..JPP200511-200808

35623HPISTON, 1ST & REVERSE BRAKE

main35623-28020iACA3#..JPP200511-200808

main35623-33030iGSA3#..JPP200808-201212

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iASA3#,GSA3#..JPP200808-201212

INNER

main90301-99098iACA3#,GSA3#..JPP200511-200808

OUTER

sub90301-99134

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011×5iACA3#..JPP200511-200808

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iACA3#,GSA3#..JPP200511-200808

T=1.8,MARK 1

main35678-21020iACA3#,GSA3#..JPP200511-200808

T=1.9,MARK 2

main35678-21030iACA3#,GSA3#..JPP200511-200808

T=2.0,MARK 3

main35678-21040iACA3#,GSA3#..JPP200511-200808

T=2.1,MARK 4

main35678-21050iACA3#,GSA3#..JPP200511-200808

T=2.2,MARK 5

main35678-21060iACA3#,GSA3#..JPP200511-200808

T=2.3,MARK 6

main35678-21070iACA3#,GSA3#..JPP200511-200808

T=2.4,MARK 7

main35678-21080iASA3#,GSA3#..JPP200808-201212

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010×6iASA3#..JPP200808-201212

7 parts on this diagram · 1 diagram in section
