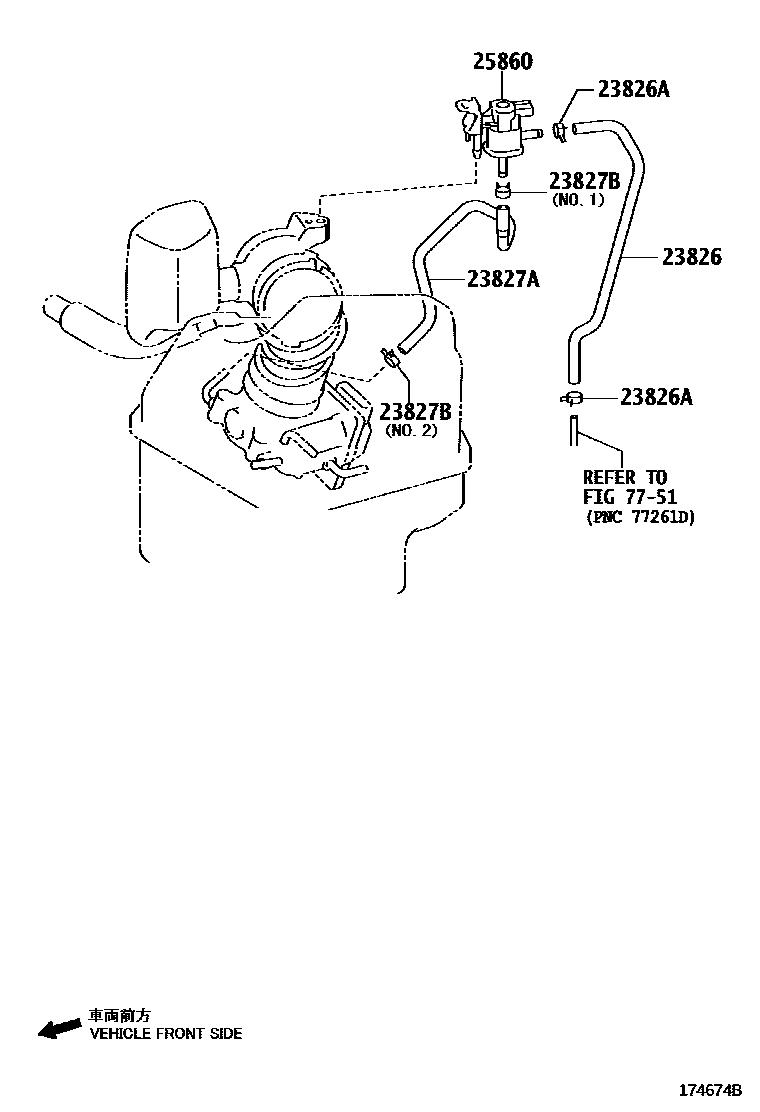

VACUUM PIPING
23826HOSE, FUEL VAPOR FEED, NO.1
NO.1
NO.1
NO.2
NO.2
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1
NO.2
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1
NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7751
6 parts on this diagram · 3 diagrams in section
