EXHAUST PIPE

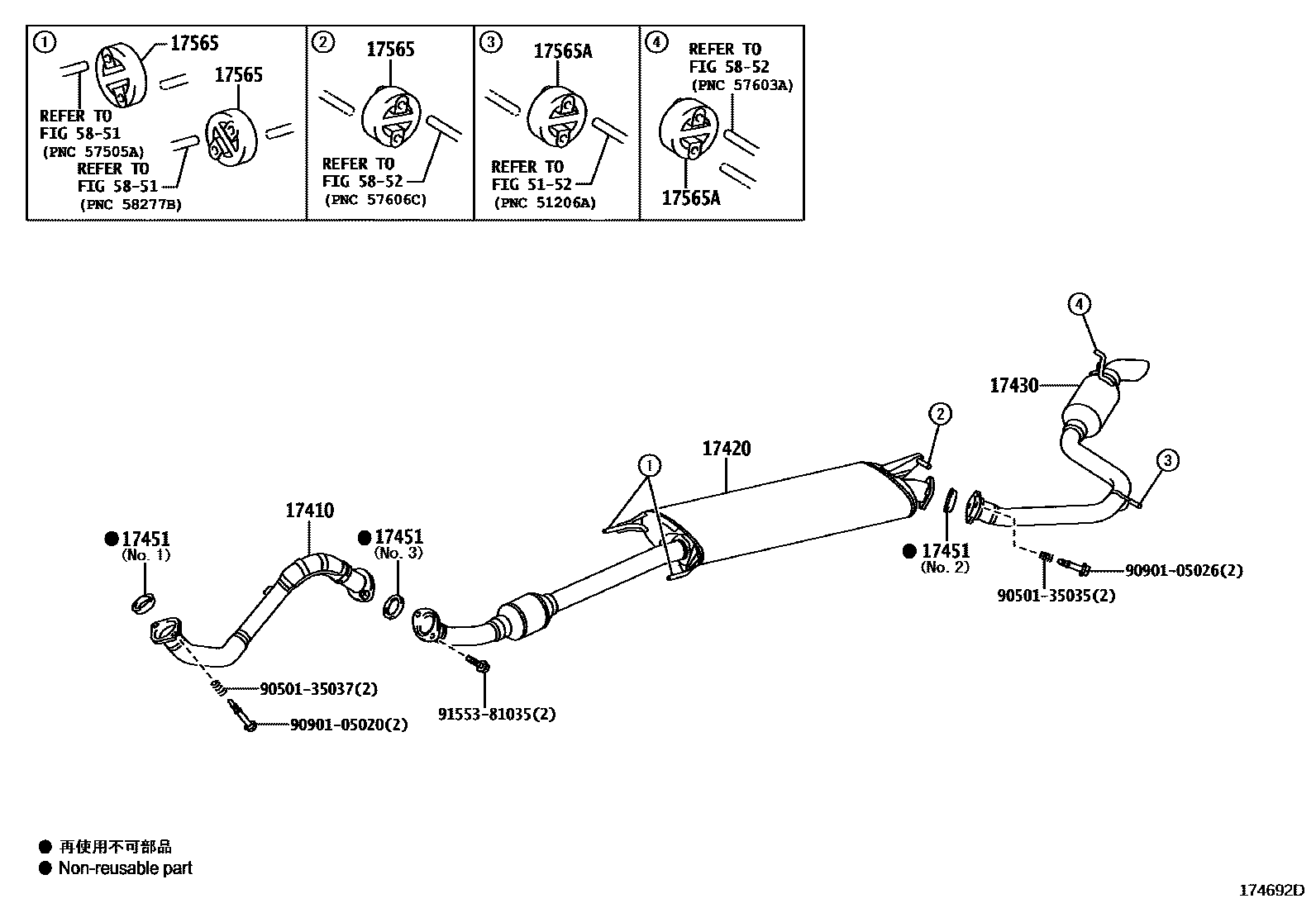

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17410-28580i200511-200601
sub17410-28581
main17410-28581i200602-200808
sub17410-28582
main17410-31610i200601-201202
sub17410-31611
main17410-31611i201203-201212
main17410-36120i200808-200903
sub17410-36121
main17410-36121i200904-201202
sub17410-36122
main17410-36122i201203-201212
17420PIPE ASSY, EXHAUST, CENTER
main17403-31050i200601-201202
sub17403-31051
main17403-31051i201203-201212
main17420-28620i200511-200805
sub17420-28710
main17420-28710i200805-200808
*114=TOYOTA/GB3/Y
sub17420-28711
main17420-36060i200808-201104
sub17420-36061
main17420-36061i201105-201202
sub17420-36062
main17420-36062i201203-201212
17430PIPE ASSY, EXHAUST, TAIL
main17430-28770i200511-200801
sub17430-28771
main17430-28771i200802-200808
sub17430-28773
main17430-31510i200601-200801
sub17430-31511
main17430-31511i200802-200907
sub17430-31513
main17430-31513i200908-201202
sub17430-31514
main17430-31514i201203-201212
main17430-36070i200808-200907
sub17430-36071
main17430-36071i200908-201202
sub17430-36072
main17430-36072i201203-201212
17451GASKET, EXHAUST PIPE
main17451-28050i200511-200709
NO.1
sub17451-28070
main17451-28070i200710-201212
NO.1
sub17451-28040
main17451-31010i200511-200806
NO.2
sub17451-31011
main17451-31011i200807-201102
NO.2
sub17451-31012
main17451-31012i201103-201212
NO.2
main90917-06078i200511-201212
NO.3
main90917-06089i200601-201212
NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-22040i200511-201212
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-22030i200511-201212
5152
5851
5852
9050135035
main90501-35035
9050135037
main90501-35037
9090105020
main90901-05020
9090105026
main90901-05026
9155381035
main91553-81035

14 parts on this diagram · 2 diagrams in section
