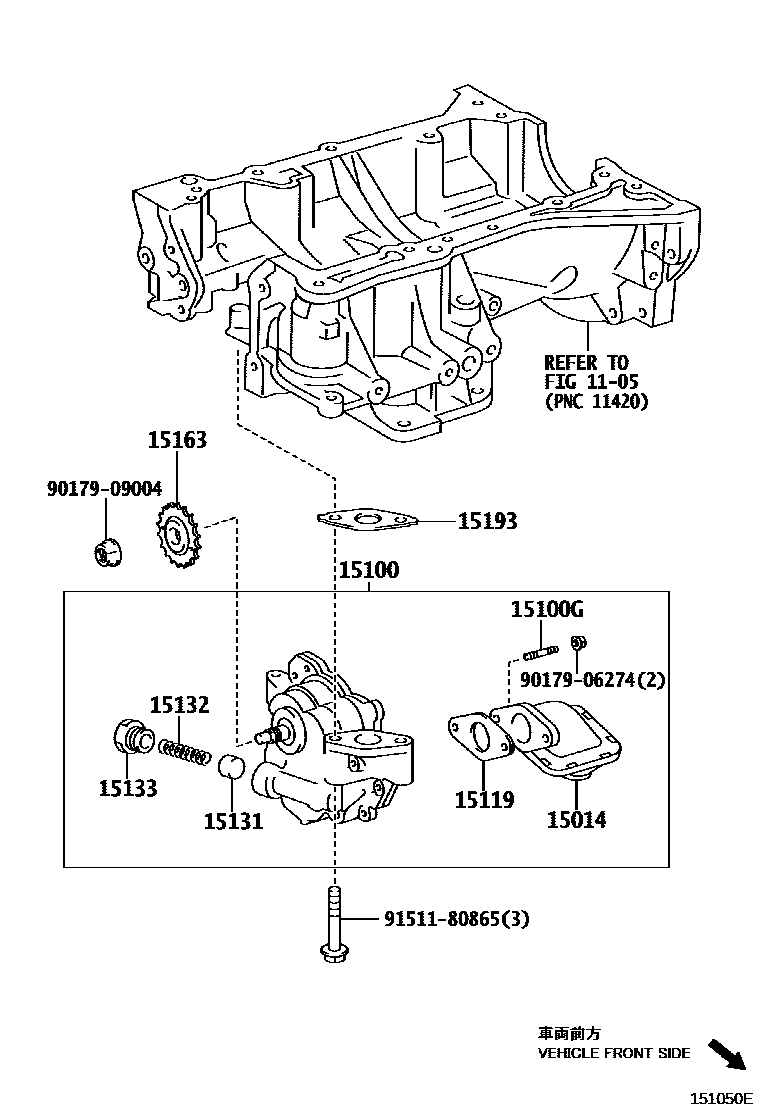

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1105

15014STRAINER SET, OIL PUMP

main15014-28020i2AZFE..ACA3#..JPP200511-200808

15100PUMP ASSY, OIL

main15100-28020i2AZFE..ACA3#..JPP200511-200808

15100GBOLT,STUD(FOR OIL PUMP)

main15183-28020i2AZFE..ACA3#..JPP200511-200808

15119GASKET, OIL PUMP COVER

main15119-28020i2AZFE..ACA3#..JPP200511-200808

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GRFE..GSA3#..JPP200601-201212

main15131-46040i2AZFE..ACA3#..JPP200511-200808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2AZFE..ACA3#..JPP200511-201212

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2AZFE..ACA3#..JPP200511-201212

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2AZFE..ACA3#..JPP200511-200808

15193GASKET, OIL PUMP

main15193-28010i2AZFE..ACA3#..JPP200511-200808

main15193-31020i2GRFE..GSA3#..JPP200601-201212

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

13 parts on this diagram · 3 diagrams in section
