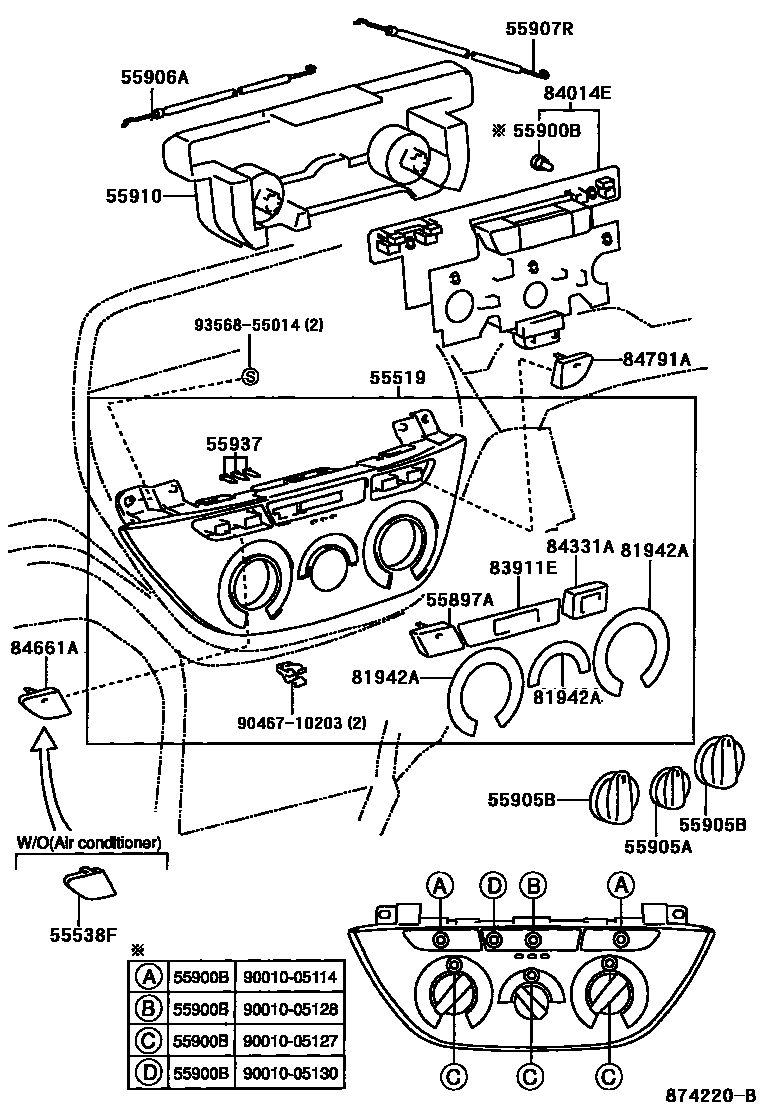

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55519PLATE, HEATER CONTROL NAME
55900BBULB, AIR CONDITIONER CONTROL
14V 1.12W,W(CAP),TYPE A:REFER TO ILLUSTRATION
14V 1.4W,TYPE C:REFER TO ILLUSTRATION
14V 0.91W,TYPE B:REFER TO ILLUSTRATION
14V 0.91W,TYPE C:REFER TO ILLUSTRATION
14V 1.4W,TYPE D:REFER TO ILLUSTRATION
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55907RCABLE SUB-ASSY, TEMPERATURE CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
81942ASHEET, HEATER CONTROL NAME, NO.1
BLOWER
TEMP
MODE
BLOWER
TEMP
MODE
BLOWER
84014EBOARD SUB-ASSY, PRINTED WIRE INTEGRATION
84331AKNOB, HAZARD WARNING SIGNAL SWITCH
84661AKNOB, COOLER CONTROL SWITCH
9046710203
main90467-10203
9356855014
main93568-55014
18 parts on this diagram · 3 diagrams in section
