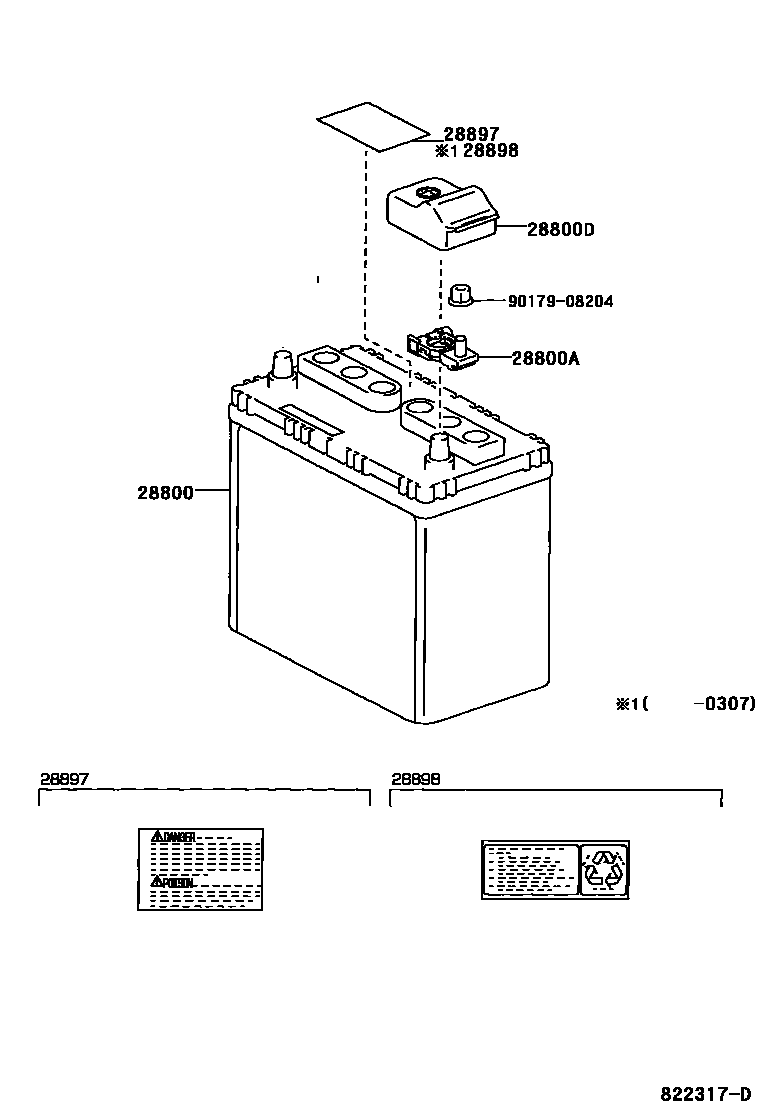

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16151i2AZFE..ACA2#..USA200307-200511

55D23L,FURUKAWA

sub28800-43262

main28800-28030i1AZFE..ACA2#200008-200307

65D23L

sub28800-74181

main28800-43262i2AZFE..ACA2#..USA200307-200511

55D23L,MATSUSHITA

main28800-64132i2AZFE..ACA2#200307-200511

80D26L

sub28800-54020

main28800-74120i1AZFE..ACA2#..USA200008-200307

46B24L(S)

main28800-74181i1AZFE..ACA2#200008-200307

65D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i1AZFE..ACA2#200008-200307

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-42010i1AZFE..ACA2#200008-200307

28897PLATE, BATTERY CAUTION

main28897-46020i1AZFE..ACA21..CND200008-200307

28898PLATE, BATTERY

main28898-26010i1AZFE..ACA2#..USA200008-200307

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section
