SPOILER & SIDE MUDGUARD
52112HEXTENSION, FRONT BUMPER, RH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub52112-42040
52113FEXTENSION, FRONT BUMPER, LH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub52113-42040
5253
5353
53821HBRACKET, FRONT FENDER, REAR
53851LPAD, FRONT WHEEL OPENING EXTENSION, RH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42190
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42190
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub53851-42190
53851WPAD, FRONT WHEEL OPENING EXTENSION, NO.1
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42180
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42180
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub53851-42180
WHITE,064
WHITE,064,COLOR NO.A050 ONLY
53851XPAD, FRONT WHEEL OPENING EXTENSION, NO.1
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42180
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42180
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub53851-42180
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6,RH
sub53851-42190
*104,GRAY,056 ,1C6 ,1D4 ,202 ,3P1 ,586 ,6S3 ,8M6,LH
sub53851-42200
WHITE,064,COLOR NO.A050 ONLY
WHITE,064,LH
53852LPAD, FRONT WHEEL OPENING EXTENSION, LH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42200
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub53851-42200
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub53851-42200
WHITE,064,COLOR NO.A050 ONLY
53858GBOLT, WHEEL OPENING SET
61628JEXTENSION, QUARTER OUTER PANEL, FRONT
61681EEXTENSION, REAR WHEEL OPENING, NO.1 RH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub61681-42030
61682DEXTENSION, REAR WHEEL OPENING, NO.1 LH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub61682-42030
67857HPROTECTOR, REAR DOOR PANEL, RH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub67857-42020
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub67857-42020
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub67857-42020
COLOR NO.A050 ONLY
WHITE,064
WHITE,064,EXCEPT COLOR NO.A050
67858CPROTECTOR, REAR DOOR PANEL, LH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub67857-42020
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub67857-42020
BLACK,202 ,3Q3 ,6R4 ,8M6,EXCEPT COLOR NO.A050
sub67857-42020
COLOR NO.A050 ONLY
WHITE,064
WHITE,064,EXCEPT COLOR NO.A050
75395DCLIP, OUTSIDE MOULDING, NO.1
sub75494-42010
75396DCLIP, OUTSIDE MOULDING, NO.2
sub75397-42010
75396ECLIP, OUTSIDE MOULDING, NO.2
sub75397-42010
75397CCLIP, OUTSIDE MOULDING, NO.3
75495CLIP, OUTSIDE MOULDING, NO.4
75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub75611-42070
75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub75612-42070
75625DPAD, FRONT FENDER OUTSIDE MOULDING, UPPRER
75653BMOULDING, QUARTER OUTSIDE, RH NO.3
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub75653-42060
75654BMOULDING, QUARTER, OUTSIDE NO.4
UNPAINTED
BODY COLOR =2-TON,GRAY MM,1D4 ,1E0 ,202 ,3Q3 ,6T6 ,8M6
sub75654-42060
75687APROTECTOR, QUARTER MOULDING, LOWER REAR RH
GRAY,040 ,064 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
sub75687-42020
sub75687-42011
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,8M6,EXCEPT COLOR NO.A050
BLACK,202 ,6R4 ,8M6,EXCEPT COLOR NO.A050
WHITE,064
WHITE,064,COLOR NO.A050 ONLY
75688APROTECTOR, QUARTER MOULDING, LOWER REAR LH
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6R4 ,6T6 ,8M6,BLACK
GRAY,040 ,1D4 ,1E0 ,202 ,3Q3 ,4R4 ,6T6 ,8M6,BLACK
BLACK,202 ,8M6,BLACK
BLACK,202 ,6R4 ,8M6,BLACK
WHITE,064,WHITE
WHITE,064
75869DRETAINER, QUARTER OPENING, LH
75879CRETAINER, QUARTER OPENING, RH
75993FSTRIPE, QUARTER, FRONT RH
75994GSTRIPE, QUARTER, FRONT LH
9015945009
main90159-45009
9015950360
main90159-50360
9017906206
main90179-06206
9018905170
main90189-05170
9018905177
main90189-05177
9026904047
main90269-04047
93560A5010
main93560-A5010

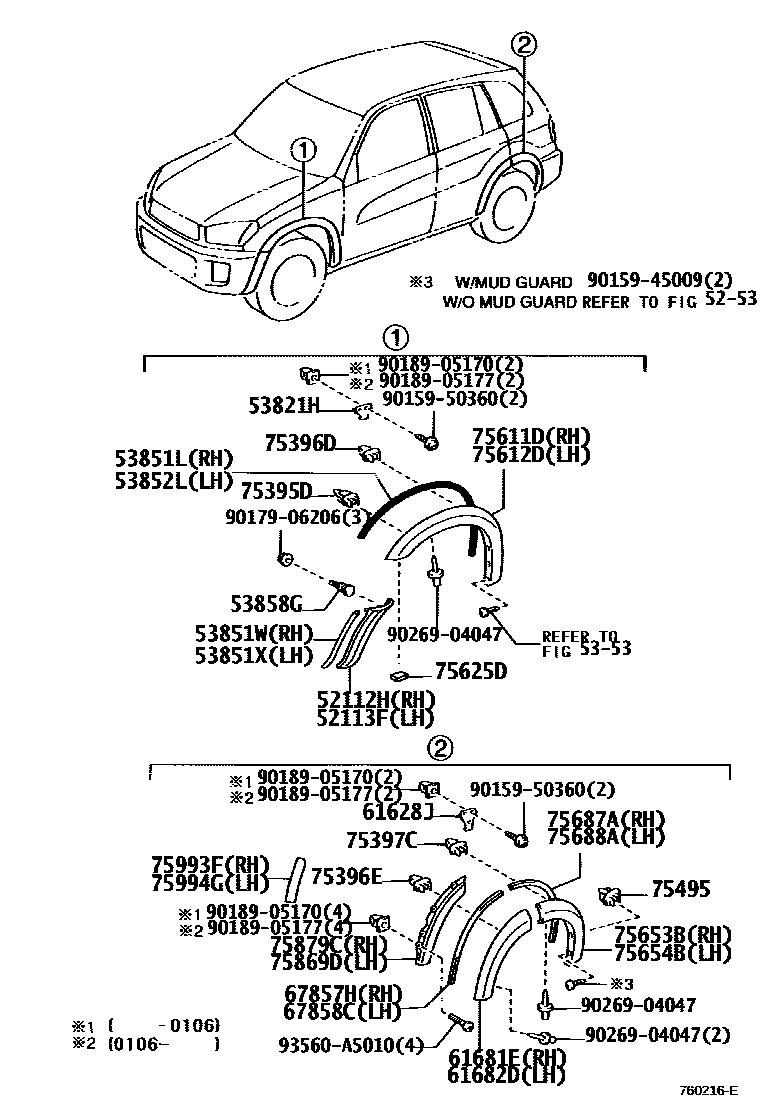

38 parts on this diagram · 2 diagrams in section
