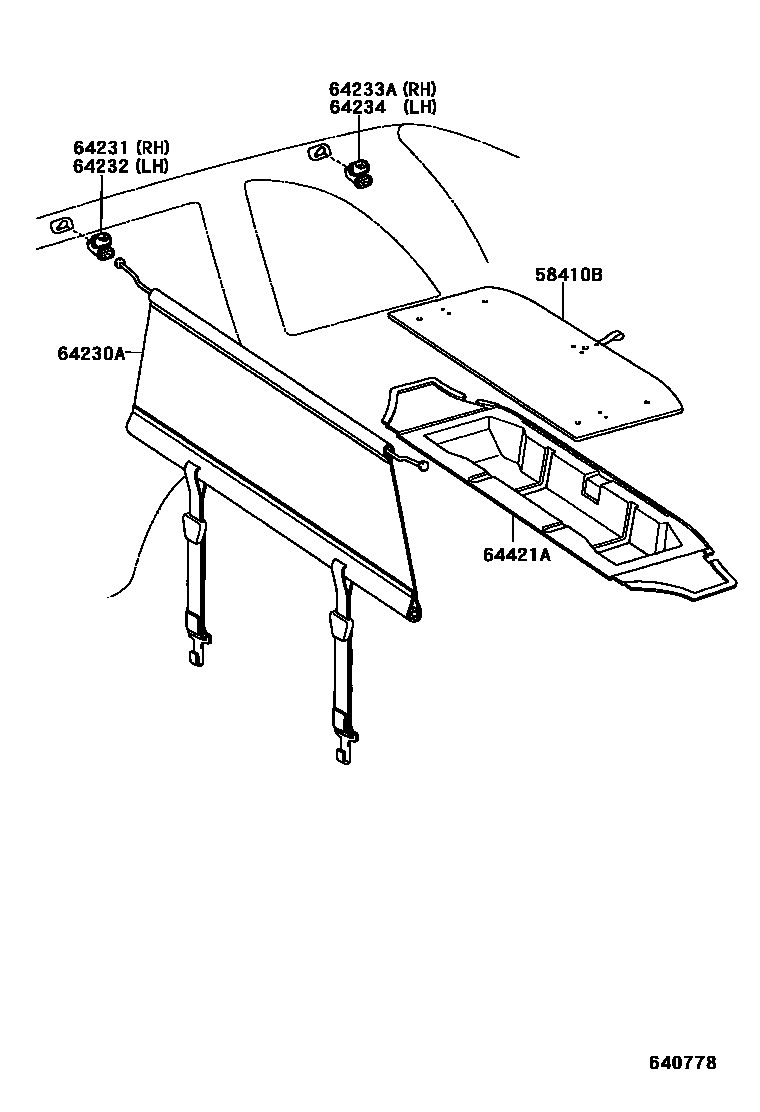

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-42010iACA2#200008-200511

64230ANET ASSY, ROOM PARTITION

main64230-42010iACA2#200008-200307

64231HOOK, ROOM PARTITION NET, FRONT RH

main64231-42010-A0iACA2#200008-200307

IVORY,TRIM4#

main64231-42010-B0iACA2#200008-200307

LT. BLUISH GRAY,TRIM1#

main64231-42020-A0iACA2#200307-200511

IVORY,TRIM4#

main64231-42020-B0iACA2#200307-200511

NEW GRAY,TRIM1#

64232HOOK, ROOM PARTITION NET, FRONT LH

main64232-42010-A0iACA2#200008-200307

IVORY,TRIM4#

sub64232-42010

main64232-42010-B0iACA2#200008-200307

LT. BLUISH GRAY,TRIM1#

sub64232-42010

main64232-42020-A0iACA2#200307-200511

IVORY,TRIM4#

main64232-42020-B0iACA2#200307-200511

NEW GRAY,TRIM1#

64233AHOOK, ROOM PARTITION NET, REAR RH

main64233-42010-A0iACA2#200008-200307

IVORY,TRIM4#

main64233-42010-B0iACA2#200008-200307

LT. BLUISH GRAY,TRIM1#

main64233-42020-A0iACA2#200307-200511

IVORY,TRIM4#

main64233-42020-B0iACA2#200307-200511

NEW GRAY,TRIM1#

64234HOOK, ROOM PARTITION NET, REAR LH

main64234-42010-A0iACA2#200008-200307

IVORY,TRIM4#

main64234-42010-B0iACA2#200008-200307

LT. BLUISH GRAY,TRIM1#

main64234-42020-A0iACA2#200307-200511

IVORY,TRIM4#

main64234-42020-B0iACA2#200307-200511

NEW GRAY,TRIM1#

64421ATRAY, LUGGAGE COMPARTMENT

main64421-42010iACA2#200008-200402

sub64421-42011

main64421-42011iACA2#200403-200511

7 parts on this diagram · 1 diagram in section
