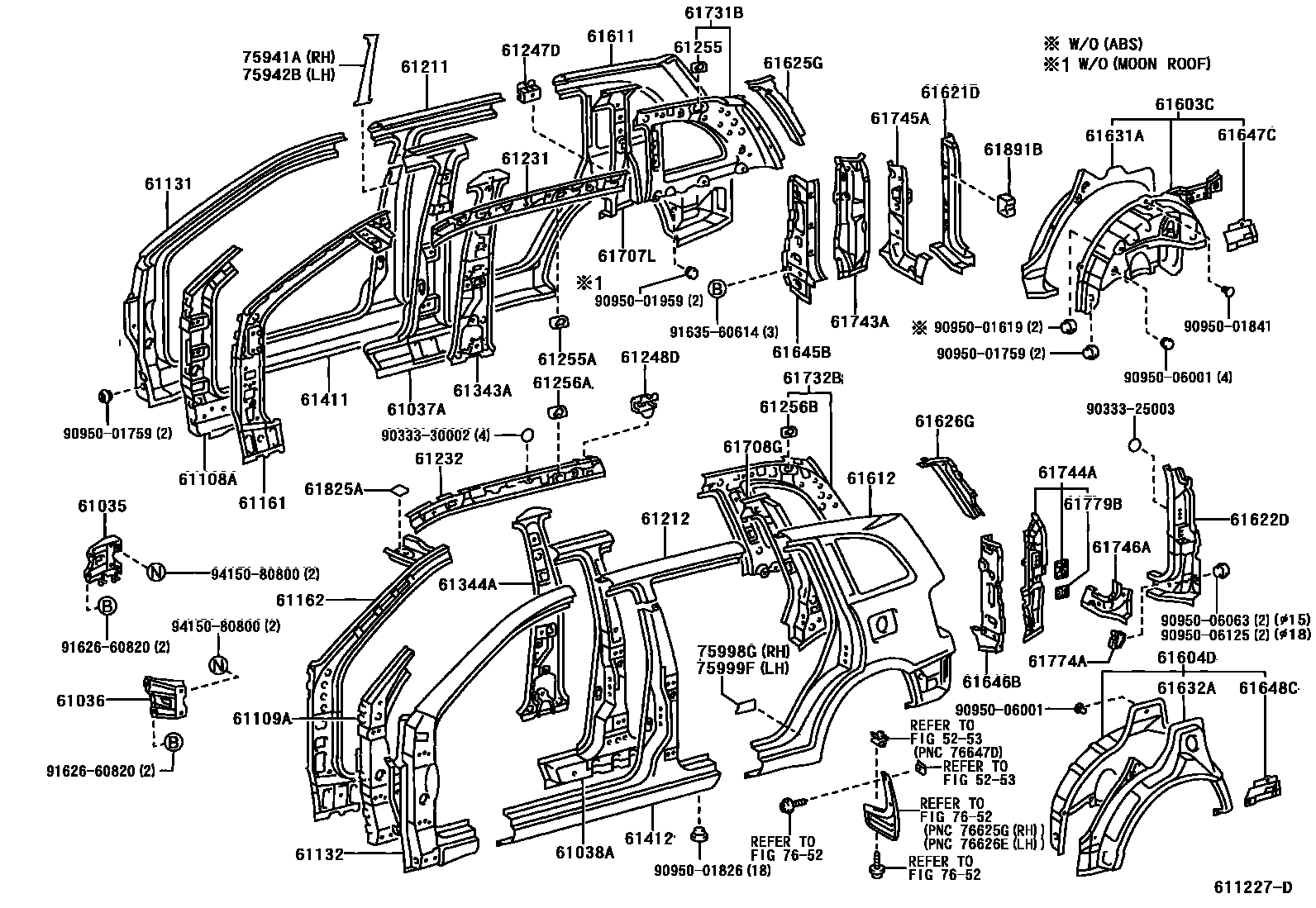

SIDE MEMBER
5253
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61255PLATE, ROOF SIDE RAIL, OUTER RH
61255APLATE, ROOF SIDE RAIL, OUTER RH
61256APLATE, ROOF SIDE RAIL, OUTER LH
61256BPLATE, ROOF SIDE RAIL, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61611PANEL, QUARTER, RH
W(OVER FENDER)
61612PANEL, QUARTER, LH
W(OVER FENDER)
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61647CREINFORCEMENT, WHEEL HOUSE, RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61774APATCH, BACK DOOR OPENING, LOWER LH
61779BPLATE, BACK DOOR OPENING, LOWER LH
61825APLATE, NOISE CONTROL, NO.2
61891BRETAINER, BACK DOOR UPPER HINGE, RH
75941ASTRIPE, CENTER PILLAR, RH
75942BSTRIPE, CENTER PILLAR, LH
75998GSTRIPE, QUARTER, LOWER RH
75999FSTRIPE, QUARTER, LOWER LH
7652
9033325003
main90333-25003
9033330002
main90333-30002
9095001619
main90950-01619
9095001759
main90950-01759
9095001826
main90950-01826
9095001841
main90950-01841
9095001959
main90950-01959
9095006001
main90950-06001
9095006063
main90950-06063
9095006125
main90950-06125
9162660820
main91626-60820
9163560614
main91635-60614
9415080800
main94150-80800
69 parts on this diagram · 2 diagrams in section
