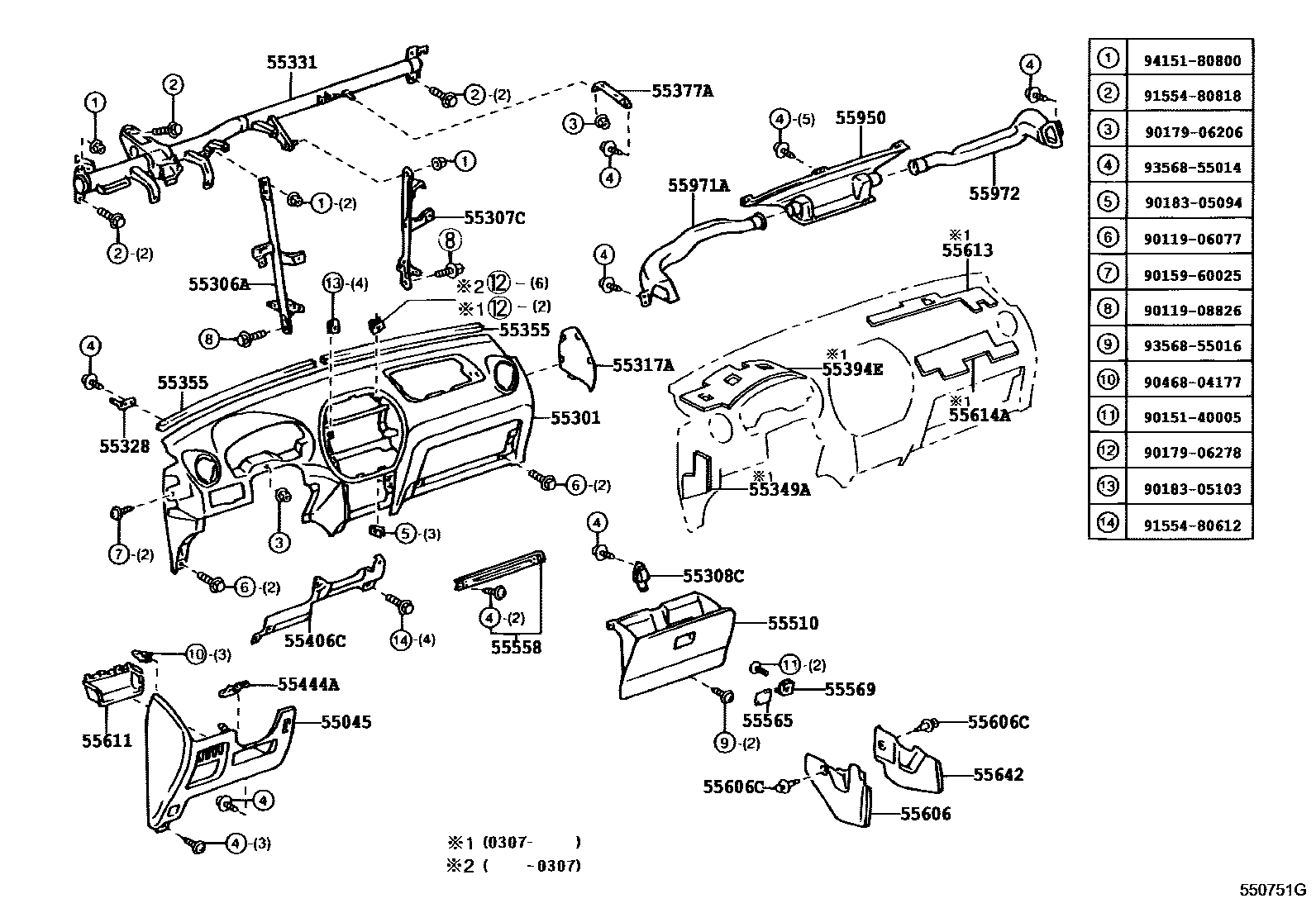

INSTRUMENT PANEL & GLOVE COMPARTMENT
55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
55301PANEL SUB-ASSY, INSTRUMENT
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55317APANEL, INSTRUMENT SIDE, RH
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
55331REINFORCEMENT, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4
55406CINSERT SUB-ASSY, INSTRUMENT PANEL, LOWER LH
55444ASPRING, INSTRUMENT PANEL BOX
55510DOOR ASSY, GLOVE COMPARTMENT
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
55569COVER, GLOVE COMPARTMENT DOOR LOCK
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
55606CCLIP(FOR INSTRUMENT PANEL UNDER COVER)
55611TRAY, INSTRUMENT PANEL UNDER
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
55613PAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.2
55614APAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.3
55642COVER, INSTRUMENT PANEL UNDER, NO.2
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
55950NOZZLE ASSY, DEFROSTER
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
9011906077
main90119-06077
9011908826
main90119-08826
9015140005
main90151-40005
9015960025
main90159-60025
9017906206
main90179-06206
9017906278
main90179-06278
9018305094
main90183-05094
9018305103
main90183-05103
9046804177
main90468-04177
9155480612
main91554-80612
9155480818
main91554-80818
9356855014
main93568-55014
9356855016
main93568-55016
9415180800
main94151-80800
41 parts on this diagram · 2 diagrams in section
