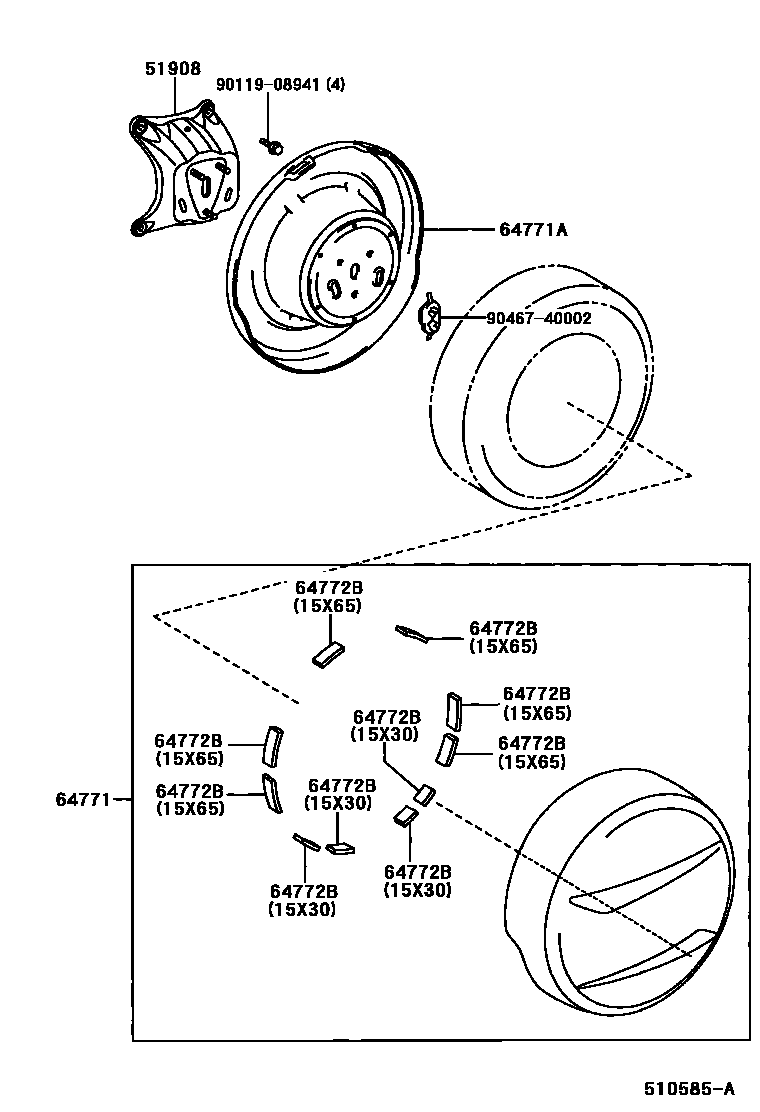

SPARE WHEEL CARRIER
51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER
64771COVER, SPARE WHEEL
W(FULL COVER),WHITE,056
W(FULL COVER),WHITE PEARL CS.,064
W(FULL COVER),SILVER ME.,1D4
W(FULL COVER),DK.GRAY M.M.,1C6
W(FULL COVER),BLACK,202
W(FULL COVER),RED M.M.,3P1
W(FULL COVER),CHANPAGNE ME.,586
W(FULL COVER),DK.GREEN M.M.,6S3
W(FULL COVER),BLUE MC.,8M6
W(HALF COVER & STEEL WHEEL)
W(HALF COVER & 215/70R16 ALUMINUM WHEEL)
W(HALF COVER & 235/60R16 ALUMINUM WHEEL)
W(FULL COVER),SUPER WHITE 2,040
W(FULL COVER),WHITE PEARL CS.,064
W(FULL COVER),SILVER ME.,1D4
W(FULL COVER),DK.GRAY MC.,1E0
W(FULL COVER),BLACK,202
W(FULL COVER),DK. RED M.M.,3Q3
W(FULL COVER),BEIGE ME.,4R4
W(FULL COVER),DARK GREEN MC.,6R4
W(FULL COVER),LT.GREEN ME.,6T6
W(FULL COVER),BLUE MC.,8M6
64771ACOVER, SPARE WHEEL
W(FULL COVER)
W(HALF COVER)
W(FULL COVER)
64772BPAD, SPARE WHEEL COVER
15X65
9011908941
main90119-08941
9046740002
main90467-40002
6 parts on this diagram · 2 diagrams in section
