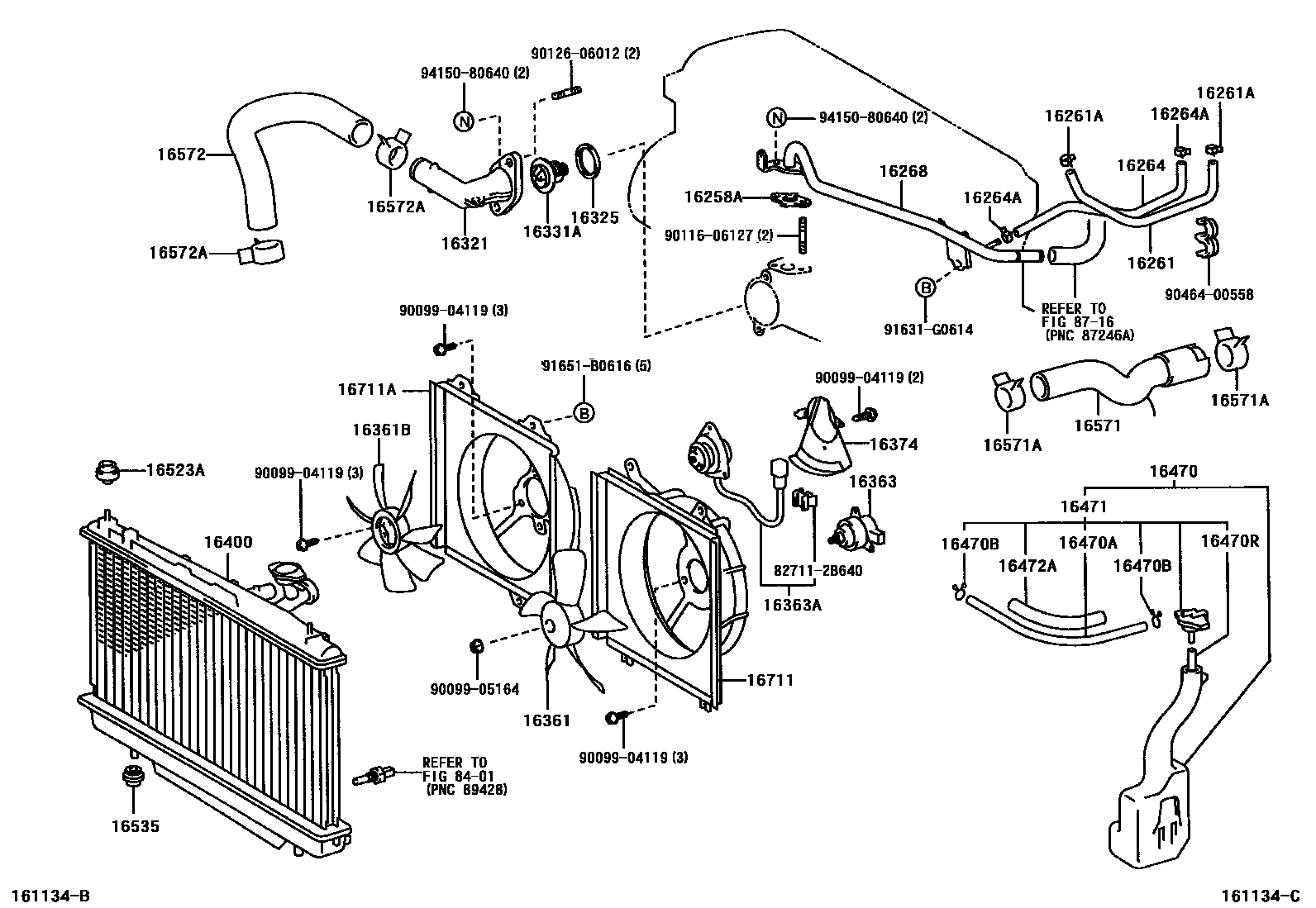

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16258AGASKET(FOR HEATER RETURN)

main16258-28010i1AZFE..ACA2#200008-200304

sub16258-28030

main16258-28011i1AZFE..ACA2#200304-200308

sub16258-28030

main16258-28020i2AZFE..ACA2#..MTM200307-200308

W(ENGINE OIL COOLER)

sub16258-28040

main16258-28030i2AZFE..ACA2#200308

16261HOSE, WATER BY-PASS

main16261-28020i1AZFE..ACA2#200008-200307

main16261-28060i2AZFE..ACA2#200307

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96135-41300i1AZFE..ACA2#200008-200307

sub96135-51300

main96135-51300i2AZFE..ACA2#200307

16264HOSE, WATER BY-PASS, NO.2

main16264-28020i1AZFE..ACA2#200008-200307

main16264-28080i2AZFE..ACA2#200307

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main96135-41300i1AZFE..ACA2#200008-200307

sub96135-51300

main96135-51300i2AZFE..ACA2#200307

16268PIPE, WATER BY-PASS, NO.1

main16268-28010i1AZFE..ACA2#200008-200307

main16268-28100i2AZFE..ACA2#..ATM200307

W(OIL COOLER)

16321INLET, WATER

main16321-28010i1AZFE..ACA2#200008-200307

16325GASKET, WATER INLET HOUSING, NO.1

main16325-28010i2AZFE..ACA2#200308-200511

main16325-62010i2AZFE..ACA2#200008-200308

16331ATHERMOSTAT

main90916-03084i1AZFE..ACA2#200008-200409

*WAX 82-95

sub90916-03129

main90916-03129i2AZFE..ACA2#200409-200510

*WAX 82-95

main90916-03136i2AZFE..ACA2#200510-200511

*WAX 82-95

16361FAN

main16361-21050i2AZFE..ACA2#200408

main16361-23050i2AZFE..ACA2#200008-200408

16361BFAN, NO.2

main16361-28070i1AZFE..ACA2#200008-200307

16363MOTOR, COOLING FAN

main16363-23030i1AZFE..ACA2#200008-200305

sub16363-28160

main16363-28160i1AZFE..ACA2#200305-200307

16363AMOTOR, COOLING FAN, NO.2

main16363-28050i1AZFE..ACA2#200008-200307

16374INSULATOR, COOLING FAN MOTOR

main16374-28010i1AZFE..ACA2#200008-200307

16400RADIATOR ASSY

main16400-28130i1AZFE..ACA2#..MTM200303-200307

W(MANUAL AIR CONDITIONER(MOP))

sub16400-28131

main16400-28160i1AZFE..ACA2#..MTM200008-200303

W(MANUAL AIR CONDITIONER(MOP))

sub16400-28130

main16400-28170i1AZFE..ACA2#..MTM200008-200307

sub16400-28171

main16400-28180i1AZFE..ACA2#..ATM200008-200303

W(MANUAL AIR CONDITIONER(MOP))

sub16400-28190

main16400-28190i1AZFE..ACA2#..ATM200008-200307

sub16400-28191

main16400-28480i2AZFE..ACA2#..MTM200307

main16400-28500i2AZFE..ACA2#..ATM200307

16470TANK ASSY, RADIATOR RESERVE

main16470-28050i2AZFE..ACA2#200008-200307

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1AZFE..ACA2#200008-200307

L=600(*H,L=210)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1AZFE..ACA2#200008-200307

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i1AZFE..ACA2#200008-200307

*H,L=380

16471CAP SUB-ASSY, RESERVE TANK

main16405-28020i1AZFE..ACA2#200008-200307

16472APROTECTOR, HOSE

main16483-28050i2AZFE..ACA2#200008-200307

16523ACUSHION, RADIATOR SUPPORT

main16523-28010i1AZFE..ACA2#200008-200307

16535SUPPORT, RADIATOR, LOWER

main16535-74210i1AZFE..ACA2#200008-200307

16571HOSE, RADIATOR, INLET

main16571-28060i1AZFE..ACA2#200008-200307

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i1AZFE..ACA2#200204-200307

main90467-37006i1AZFE..ACA2#200008-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-28030i1AZFE..ACA2#200008-200307

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37005i1AZFE..ACA2#200204-200307

main90467-37006i1AZFE..ACA2#200008-200204

sub90467-37005

16711SHROUD, FAN

main16711-28150i1AZFE..ACA2#200008-200307

16711ASHROUD, FAN, NO.2

main16711-28180i1AZFE..ACA2#200008-200307

8401

8716

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

9009904119

main90099-04119

9009905164

main90099-05164

9011606127

main90116-06127

9012606012

main90126-06012

9046400558

main90464-00558

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

40 parts on this diagram · 4 diagrams in section
