CYLINDER HEAD

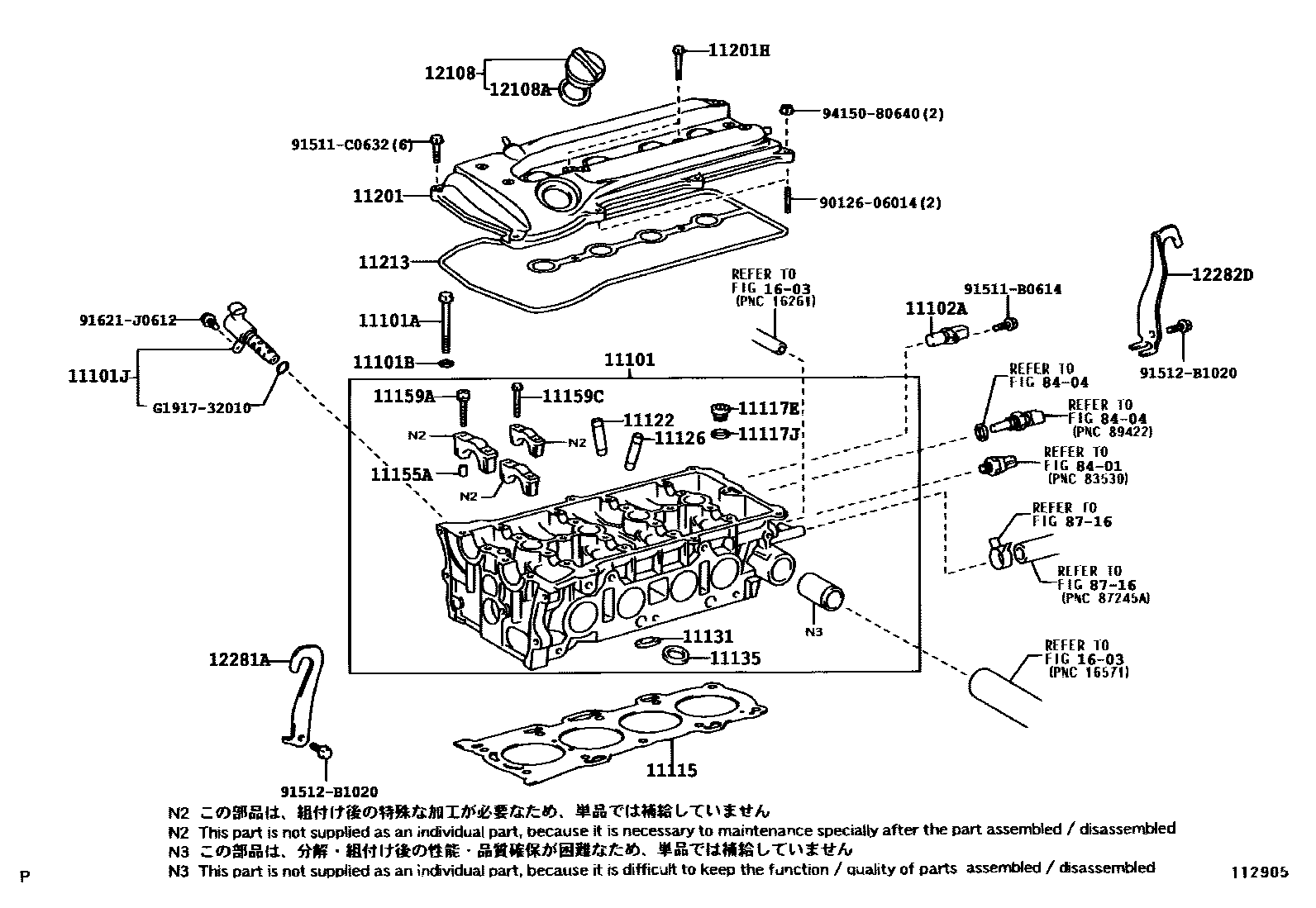

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-0H010i200504-200508
(L)
sub11101-0H011
sub11310-0H011
sub11310-28071
sub11310-28082
sub11321-28042
main11101-0H011i200508
(L)
main11101-28010i200008-200105
sub11101-28011
main11101-28011i200105-200307
sub11101-28012
sub11310-0H011
sub11310-0H021
sub11310-0H041
sub11310-0H051
sub11310-28071
sub11310-28082
sub11321-28042
main11101-28011i200307-200508
(J)
sub11101-28012
sub11310-0H011
sub11310-0H021
sub11310-0H041
sub11310-0H051
sub11310-28071
sub11310-28082
sub11321-28042
main11101-28012i200508
(J)
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02141i200008-200307
sub90910-02184
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-11033i200008-200304
sub90201-11034
main90201-11034i200304-200307
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
main15330-28020i200008-200307
sub15330-28010
11102ASENSOR, CAMSHAFT POSITION
main90919-05026i200008-200307
11115GASKET, CYLINDER HEAD
main11115-28012i200307-200508
sub11115-28013
main11115-28013i200508-200511
sub11115-28040
main11115-28020i200008-200104
sub11115-28021
main11115-28021i200104-200304
sub11115-28022
main11115-28022i200304-200307
sub11115-28023
main11115-28040i200511
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-27006i200008-200307
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-27005i200008-200307
11122BUSH, INTAKE VALVE GUIDE
main11122-28010i200008-200511
STD
main11123-28010i200008-200511
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11126-20020i200008-200511
STD
main11127-20020i200008-200511
O/S 0.05
11131SEAT, INTAKE VALVE
main11131-28010i200008-200105
STD
main11131-28021i200105-200511
STD
main11132-28010i200008-200105
O/S 0.03
main11132-28021i200105-200511
O/S 0.03
11135SEAT, EXHAUST VALVE
main11135-28010i200008-200105
STD
main11135-28030i200105-200301
STD
main11135-28040i200301-200511
STD
main11136-28010i200008-200105
O/S 0.03
main11136-28030i200105-200301
O/S 0.03
sub11136-28040
main11136-28040i200301-200511
O/S 0.03
11155APIN, RING W/HEAD
main90253-11001i200008-200011
main90253-11004i200011-200107
main90253-11021i200107-200307
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90080-10210i200504
(L)
main90105-08337i200008-200307
sub90105-08353
main90105-08353i200307
(J)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90080-11292i200504-200511
(L)
main90119-06902i200307-200511
(J)
main90119-06902i200008-200307
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-28012i200008-200107
sub11201-28013
main11201-28013i200107-200207
sub11201-28014
main11201-28014i200207-200511
sub11201-28031
main11201-28031i200511
sub11201-28032
11201HBOLT(FOR CYLINDER HEAD COVER)
main90119-06903i200008-200307
11213GASKET, CYLINDER HEAD COVER
main11213-28021i200008-200307
12108CAP SUB-ASSY, OIL FILLER
main12180-28020i200008-200110
sub12180-28021
main12180-28021i200110-200307
sub12180-21021
12108AGASKET(FOR OIL FILLER CAP)
main90430-37004i200008-200307
12281AHANGER, ENGINE, NO.1
main12281-28010i200008-200307
12282DHANGER, ENGINE, NO.2
main12282-28010i200008-200307
1603
8401
8404
8716
9012606014
main90126-06014
91511B0614
main91511-B0614
91511C0632
main91511-C0632
91512B1020
main91512-B1020
91621J0612
main91621-J0612
9415080640
main94150-80640
G191732010
mainG1917-32010

33 parts on this diagram · 1 diagram in section
