ENGINE OVERHAUL GASKET KIT

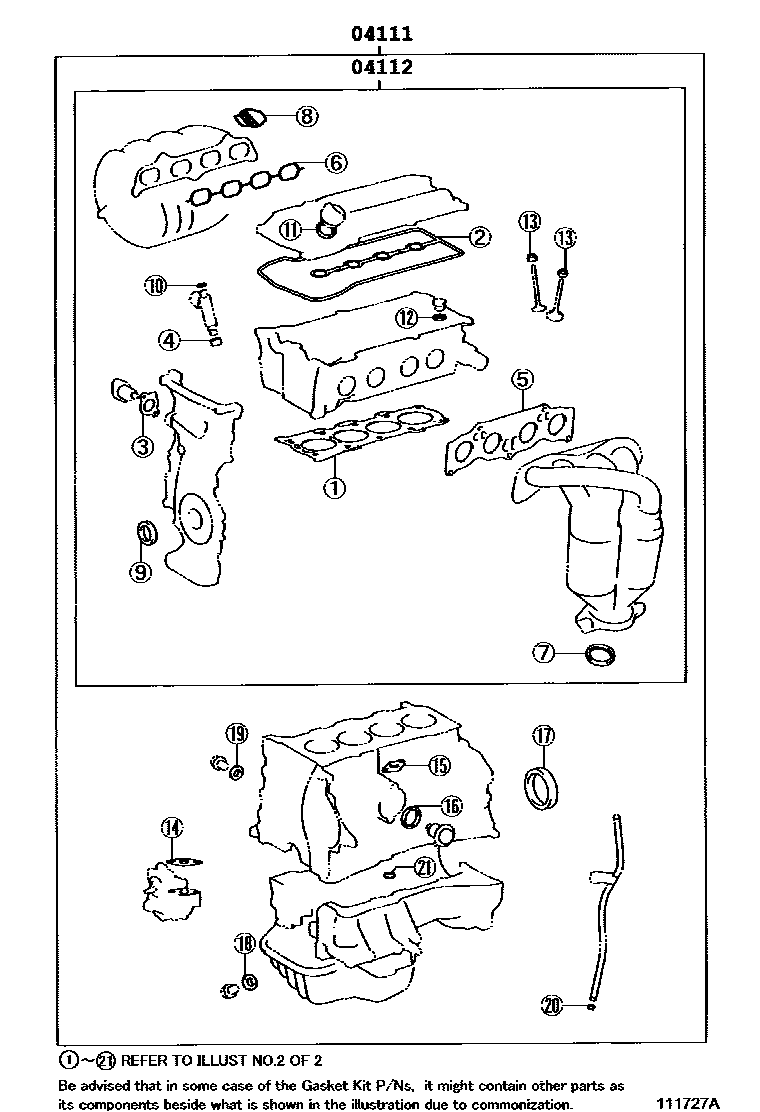

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-28070i200008-200104
main04111-28071i200104-200211
main04111-28072i200211-200212
main04111-28073i200212-200304
main04111-28074i200304-200307
main04111-28180i200307-200404
main04111-28250i200404-200508
main04111-28251i200508-200511
sub04111-28252
main04111-28600i200404-200508
W(ENGINE OIL COOLER)
main04111-28601i200508-200511
W(ENGINE OIL COOLER)
sub04111-28602
04112GASKET KIT, ENGINE VALVE GRIND
main04112-28070i200008-200104
main04112-28071i200104-200211
main04112-28072i200211-200212
main04112-28073i200212-200304
main04112-28074i200304-200307
main04112-28180i200307-200404
main04112-28250i200404-200508
main04112-28251i200508-200511
main04112-28252i200508-200511
W(OIL COOLER)

2 parts on this diagram · 4 diagrams in section
