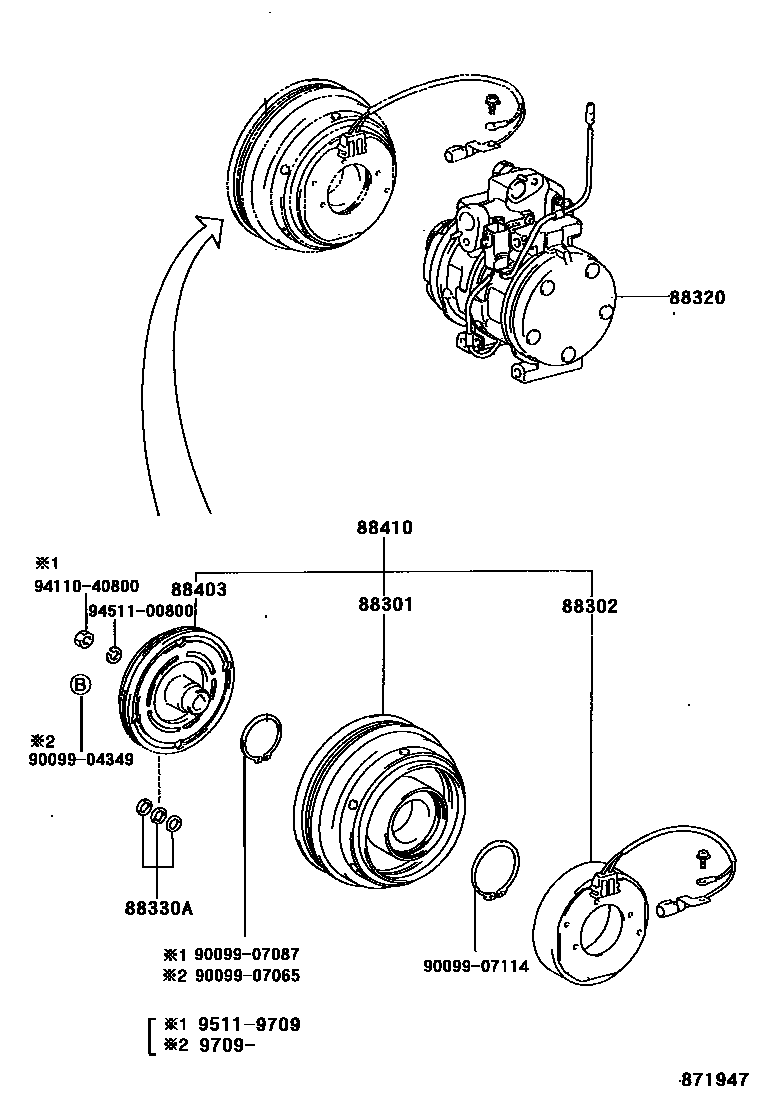

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A010iSXA1#199511-199709

main88412-44010iSXA1#199709

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iSXA1#199709

main88411-42010iSXA1#199511-199608

main88411-43010iSXA1#199608-199709

88320COMPRESSOR ASSY, COOLER

main88320-42010iSXA1#199511-199608

main88320-42011iSXA1#199608-199709

sub88320-42H90

main88320-42050iSXA1#199709

sub88320-42H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iSXA1#199608-199709

main88335-14020iSXA1#199511-199608

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iSXA1#199511-199709

main88403-30290iSXA1#199709

88410CLUTCH ASSY, MAGNET

main88410-42010iSXA1#199511-199608

main88410-42030iSXA1#199608-199709

main88410-44010iSXA1#199709

9009904349

main90099-04349

9009907065

main90099-07065

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 3 diagrams in section
